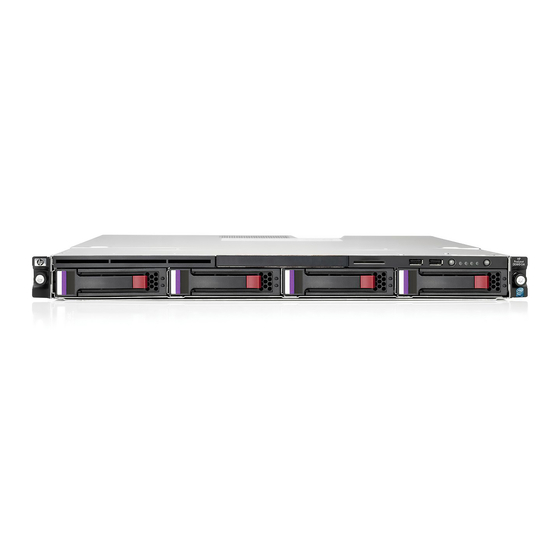

HP ProLiant DL160 G6
Server
Installation Sheet
Part number: 516317-004
February 2011 (Fourth edition)
Identifying server components
Front panel components

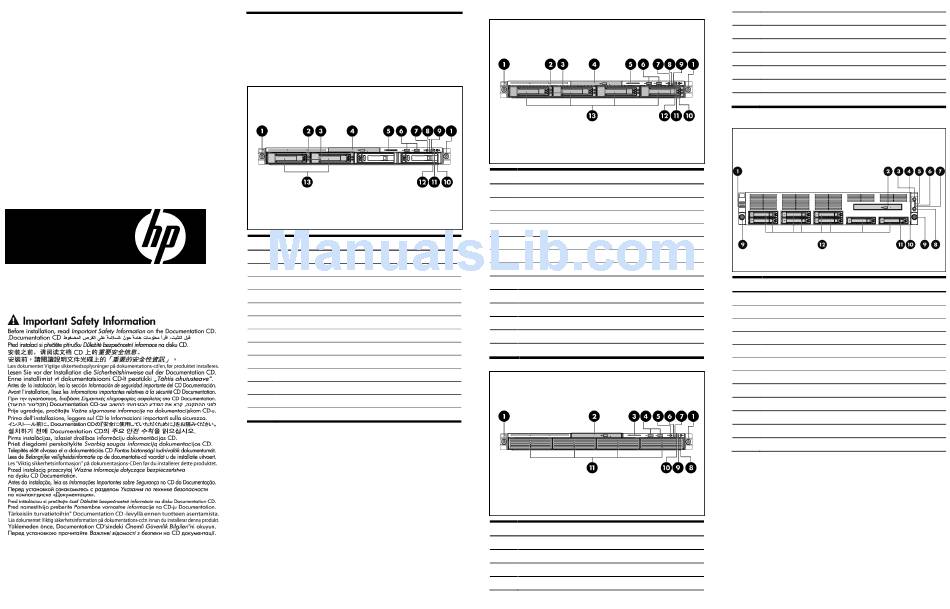

Figure 1 Front Panel Components / 2 3.5" HDD Hot-plug HDD
Model
Item
Description
1
Thumbscrews for rack mounting
2
Drive online/error LED
3
Drive activity LED
4
Optical disc drive (optional)
5
Serial number pull tab
6
Front panel USB 2.0 port 0/1
7
Front UID LED/switch
8
System health LED
9
NIC 1 activity LED
10
Power LED/switch
11
Hard drive activity LED
12
NIC 2 activity LED
13
Hard disk drive (HDD) bays
Figure 2 Front Panel Components / 4 3.5" HDD Hot-plug Model
Item
Description
1
Thumbscrews for rack mounting
2
Drive online/error LED
3
Drive activity LED
4
Optical disc drive (optional)
5
Serial number pull tab
6
Front panel USB 2.0 port 0/1
7
Front UID LED/switch
8
System health LED
9
NIC 1 activity LED
10
Power LED/switch
11
Hard drive activity LED
12
NIC 2 activity LED
13
Hard disk drive (HDD) bays
Figure 3 Front Panel Components / 4 3.5" HDD Non-hot-plug Model
Item
Description
1
Thumbscrews for rack mounting
2
Optical disc drive (optional)
3
Serial number pull tab
4
Front panel USB 2.0 port 0/1
5
Front UID LED/switch
6
System health LED
7
NIC 1 activity LED
8
Power LED/switch
9
Hard drive activity LED
10
NIC 2 activity LED
11
Hard disk drive (HDD) bays
Figure 4 Front Panel Components / 8 2.5" HDD Hot-plug Model
Item
Description
1
Front panel USB 2.0 port 0/1
2
Optical disc drive
3
Front UID LED/switch
4
System health LED
5
NIC 1 activity LED
6
NIC 2 activity LED
7
Hard drive activity LED
8
Power LED/switch
9
Thumbscrews for rack mounting
10
Drive activity LED
11
Drive online/error LED
12
Hard disk drive (HDD) bays
