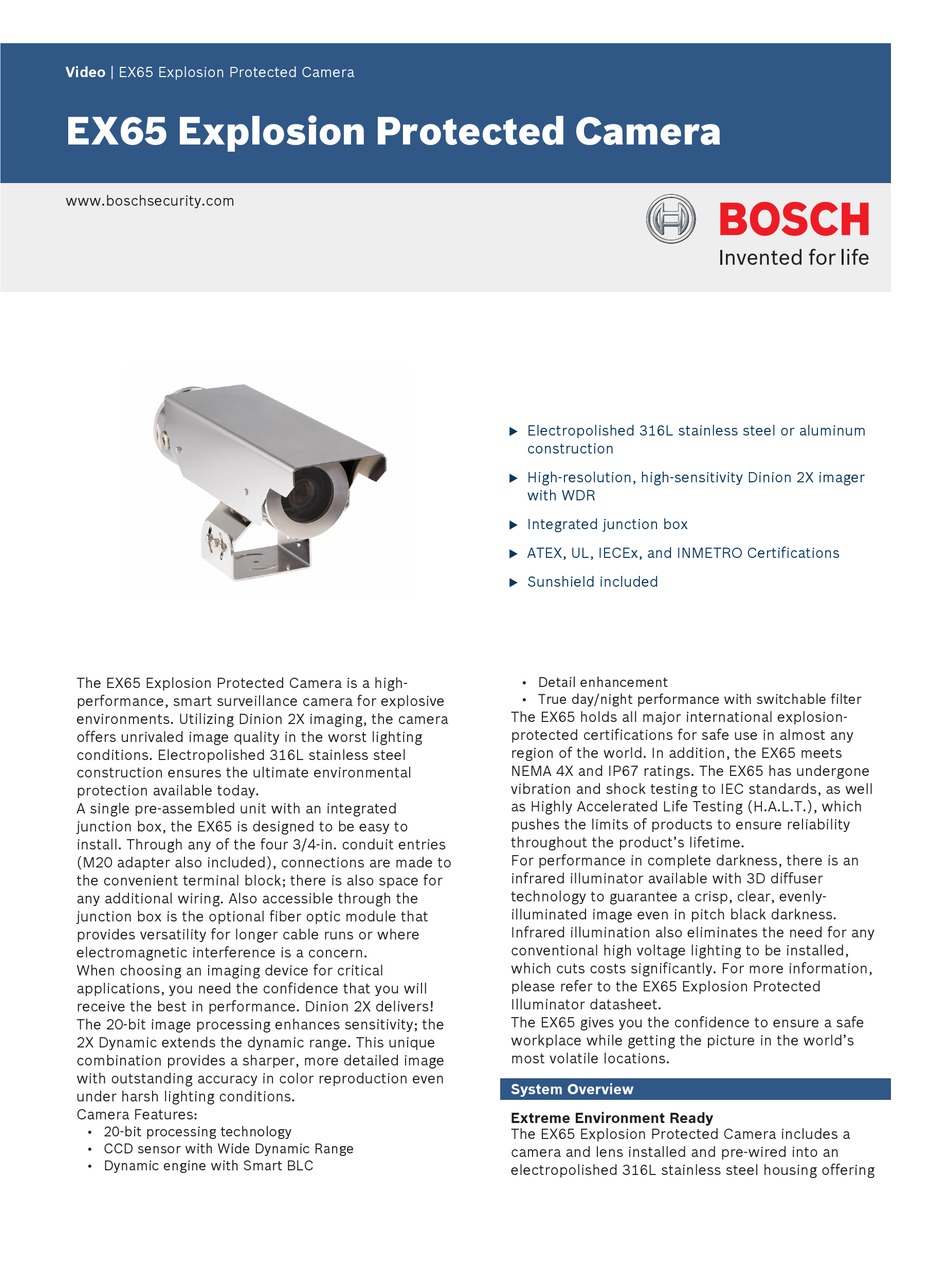

Bosch EX65 Specifications

Video | EX65 Explosion Protected Camera
EX65 Explosion Protected Camera
www.boschsecurity.com
The EX65 Explosion Protected Camera is a high-
performance, smart surveillance camera for explosive
environments. Utilizing Dinion 2X imaging, the camera
offers unrivaled image quality in the worst lighting
conditions. Electropolished 316L stainless steel
construction ensures the ultimate environmental
protection available today.
A single pre-assembled unit with an integrated
junction box, the EX65 is designed to be easy to
install. Through any of the four 3/4‑in. conduit entries
(M20 adapter also included), connections are made to
the convenient terminal block; there is also space for
any additional wiring. Also accessible through the
junction box is the optional fiber optic module that
provides versatility for longer cable runs or where
electromagnetic interference is a concern.
When choosing an imaging device for critical
applications, you need the confidence that you will
receive the best in performance. Dinion 2X delivers!
The 20-bit image processing enhances sensitivity; the
2X Dynamic extends the dynamic range. This unique
combination provides a sharper, more detailed image
with outstanding accuracy in color reproduction even
under harsh lighting conditions.
Camera Features:
• 20-bit processing technology
• CCD sensor with Wide Dynamic Range
• Dynamic engine with Smart BLC
Electropolished 316L stainless steel or aluminum
u
construction
High-resolution, high-sensitivity Dinion 2X imager
u
with WDR
Integrated junction box
u
ATEX, UL, IECEx, and INMETRO Certifications
u
Sunshield included
u
• Detail enhancement
• True day/night performance with switchable filter
The EX65 holds all major international explosion-
protected certifications for safe use in almost any
region of the world. In addition, the EX65 meets
NEMA 4X and IP67 ratings. The EX65 has undergone
vibration and shock testing to IEC standards, as well
as Highly Accelerated Life Testing (H.A.L.T.), which
pushes the limits of products to ensure reliability
throughout the product's lifetime.
For performance in complete darkness, there is an
infrared illuminator available with 3D diffuser
technology to guarantee a crisp, clear, evenly-
illuminated image even in pitch black darkness.
Infrared illumination also eliminates the need for any
conventional high voltage lighting to be installed,
which cuts costs significantly. For more information,
please refer to the EX65 Explosion Protected
Illuminator datasheet.
The EX65 gives you the confidence to ensure a safe
workplace while getting the picture in the world's
most volatile locations.
System Overview
Extreme Environment Ready
The EX65 Explosion Protected Camera includes a
camera and lens installed and pre-wired into an
electropolished 316L stainless steel housing offering
