Sony SDM-HS94 Service Manual

Tft lcd color computer display
Hide thumbs Also See for SDM-HS94:
Table of Contents

Advertisement

Quick Links

SDM-HS94/HS94P
US Model
SERVICE MANUAL
Canadian Model
AEP Model
TFT LCD COLOR COMPUTER DISPLAY

Advertisement

Table of Contents
loading

Related Manuals for Sony SDM-HS94

Summary of Contents for Sony SDM-HS94

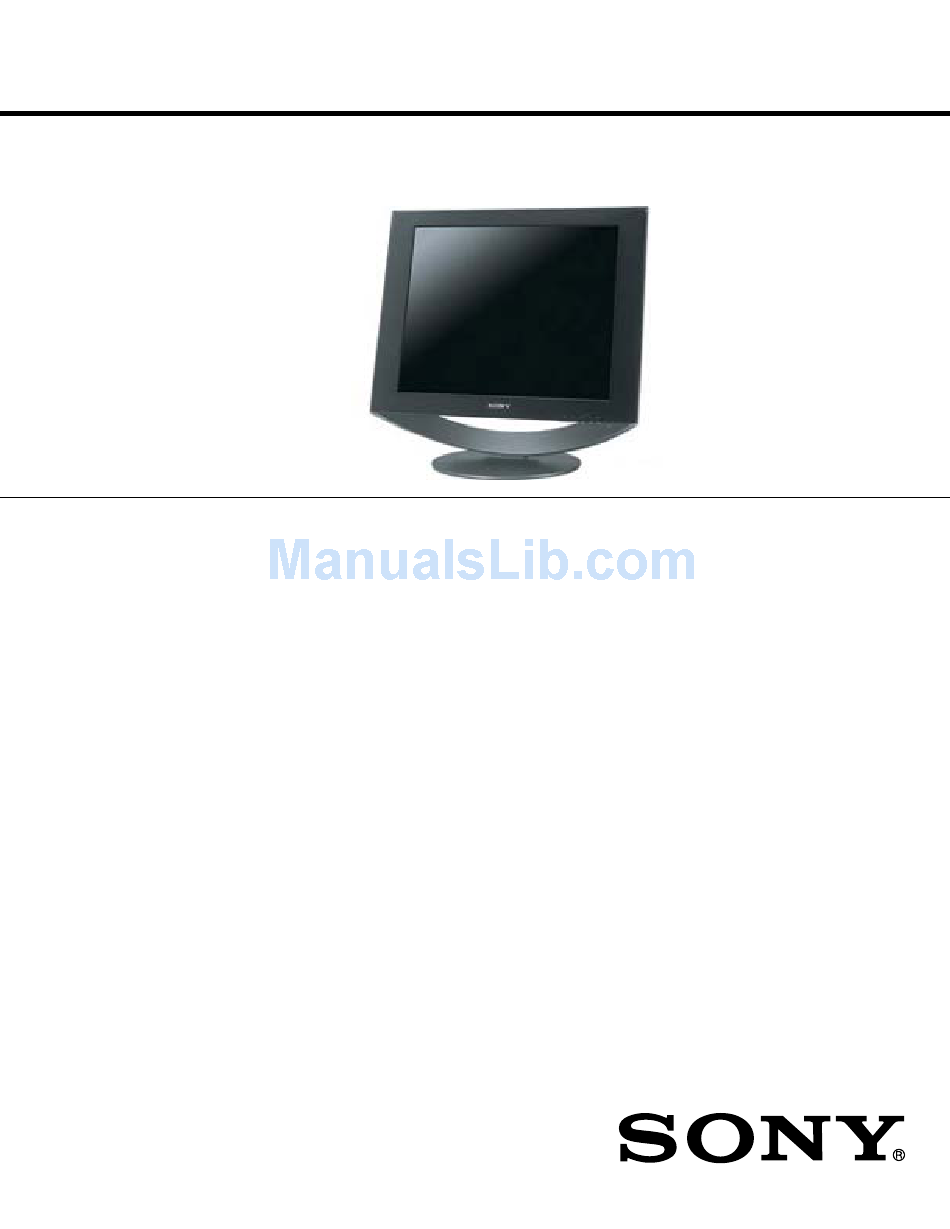

  • Page 1 SDM-HS94/HS94P US Model SERVICE MANUAL Canadian Model AEP Model TFT LCD COLOR COMPUTER DISPLAY...

  • Page 2: Table Of Contents

    1) Type : R, G, B Analog Net. Weight : 7.1 kg (15.65 lbs) 2) Voltage Level : 0~0.70 V( 5%) Gross Weight : 9.4 kg (20.72 lbs) a) Color 0, 0 : 0 Vp-p – 2 – SDM-HS94/HS94P (E)

  • Page 3: Signal Connector Pin Assignment

    T. M. D. S. Data1/3 Shield T. M. D. S. Data3- T. M. D. S. Data3+ +5V Power Ground (return for +5V, H. Sync. and V. Sync.) T. M. D. S. (Transition Minimized Differential Signaling) – 3 – SDM-HS94/HS94P (E)

  • Page 4: Precaution

    • If the surface of panel become dirty, please wipe it off with a softmaterial. (Cleaning with a dirty or rough cloth may damage the panel.) CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. – 4 – SDM-HS94/HS94P (E)

  • Page 5: Timing Chart

    – 76.068Hz 31.216 1480 1170 1170x584 46.200 50Hz 50.026Hz 60.000 1800 1280 1280x960 108.000 60Hz 60.000Hz 1000 63.981 1688 1280 1280x1024 108.000 60Hz 60.020Hz 1066 1024 79.976 1688 1280 1280x1024 135.000 75Hz 75.025Hz 1066 1024 – 5 – SDM-HS94/HS94P (E)

  • Page 6: Operating Instructions

    DVI Rev.1.0. 8. HD15 (RGB) input connector (analog RGB) This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals. DDC (Display Data Channel) is a standard of VESA. 9. Input Select – 6 – SDM-HS94/HS94P (E)

  • Page 7: Wiring Diagram

    WIRING DIAGRAM Connector Ass’y P/N: 6631T11016W Connector Ass’y P/N: 6631T20023L – 7 – SDM-HS94/HS94P (E)

  • Page 8: Block Diagram

    BLOCK DIAGRAM – 8 – SDM-HS94/HS94P (E)

  • Page 9: Description Of Block Diagram

    3) Microprocessor (U501) communicates with EEPROM (704), and MST9131A (U201) through IIC or 8 bit bus line. It is enable to control and communicate each devices. 4) Microprocessor (U501) let User adjust screen by OSD function. – 9 – SDM-HS94/HS94P (E)

  • Page 10: Lips Board Block Diagram

    This part function is to feed back the dc output changing status through a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect the any change from the dc output and feed back to the primary through photo transistor. – 10 – SDM-HS94/HS94P (E)

  • Page 11: Adjustment

    2) Edit Week of Manufacture, Year of Manufacture, Serial Number a) Input User Info Data b) Click “Update” button c) Click “ Write” button c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. – 11 – SDM-HS94/HS94P (E)

  • Page 12: Service Osd Exploded View

    MODULE : Select the LCD module attached to this monitor. Video Signal Compatible PC Generator PARALLEL PORT Power inlet (required) 4.7K Power Select Switch 4.7K (110V/220V) 74LS06 Power LED 4.7K 74LS06 ST Switch V-Sync On/Off Switch (Switch must be ON.) Figure 1. Cable Connection – 12 – SDM-HS94/HS94P (E)

  • Page 13: Exploded View

    EXPLODED VIEW...

  • Page 14: Exploded View Parts List

    QUICK SETUP GUIDE (U/C, CH) (HS94/HS94P) 2-103-460-01 QUICK SETUP GUIDE (AEP) (HS94/HS94P) 4-094-401-01 PROTECTION BAG (HS94/HS94P) 2-149-428-01 CUSHION (HS94/HS94P) 2-148-719-01 INDIVIDUAL CARTON (HS94) 2-148-721-01 INDIVIDUAL CARTON (HS94P) English 2004IR02-1 Sony EMCS Corporation Made in Japan Ichinomiya Tec 9-878-265-01 © 2004.9 – 14 – SDM-HS94/HS94P (E)
