Page 1

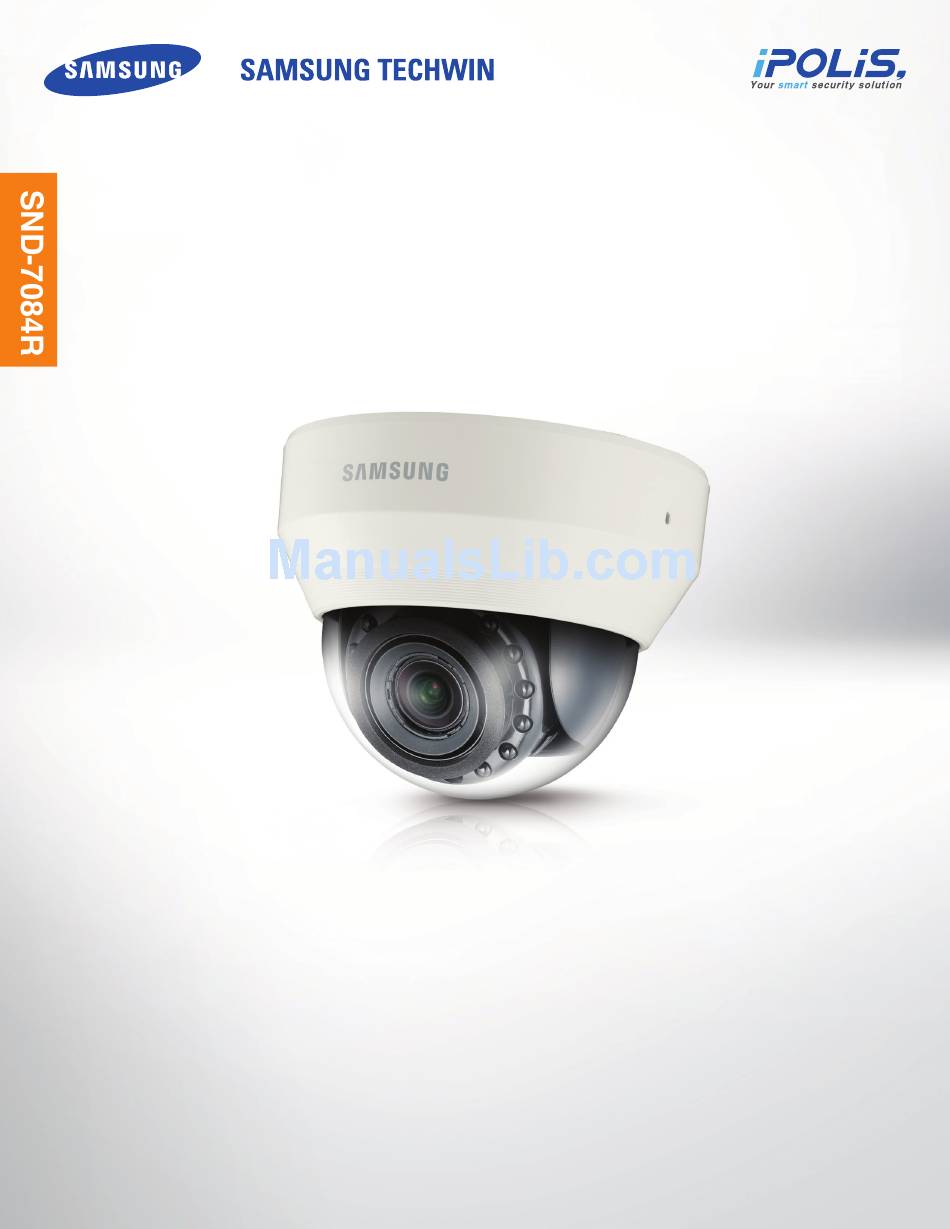

The SND-7084R features the most advanced WiseNetIII functions 3Megapixel Network IR Dome Camera from Samsung with 3 megapixel 1080p high definition images. Its • 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080 high level of functionalities includes 120dB Wide Dynamic Range •...
○ Name Samsung Techwin Co., Ltd. 84, Jeongdong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, ○ Address Korea Factory ○ Name TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONIC CO., LTD No.11 Weiliu Road. Micro-Electronic Industrial Park Jingang Road Tianjin ○ Address 300385,China Equipment ○ Product Network Camera ○...
Page 4
http://www.emc2000.co.kr Report No.: 14EMC-RT-1203 1. Reference Documents IEC 62262 and IEC 60068-2-75 Degrees of protection provided by enclosure for electrical equipment against external mechanical impacts (IK code) 2. Test Performed Degree of protection provided by enclosure for external impacts IK08 3.
http://www.emc2000.co.kr Report No.: 14EMC-RT-1203 6. Test Results Drop Zone: Enclosure Drop # Orientation / Results Pass / Fail Drop 1 Normal to surface of enclosure. Scuff Pass Normal to surface of enclosure, about 90° Drop 2 Pass circumferentially from previous drop. Scuff Normal to surface of enclosure, about 90°...
Page 6
http://www.emc2000.co.kr Report No.: 14EMC-RT-1203 7. Images Conclusion: After testing according to the procedure set forth by IEC 62262, model SND-7084RN, SND- 7084RP, SND-5084RN, SND-5084RP was found to meet the criteria required for an IK08 specification. compliance Ltd. Page: 4 of 4 65, Sinwon-ro, Yeongtong-gu, Suwon, Kyunggi-do 443-390, Korea 82 31 336 9919 (Main) 0505 299 8311 (Fax)
