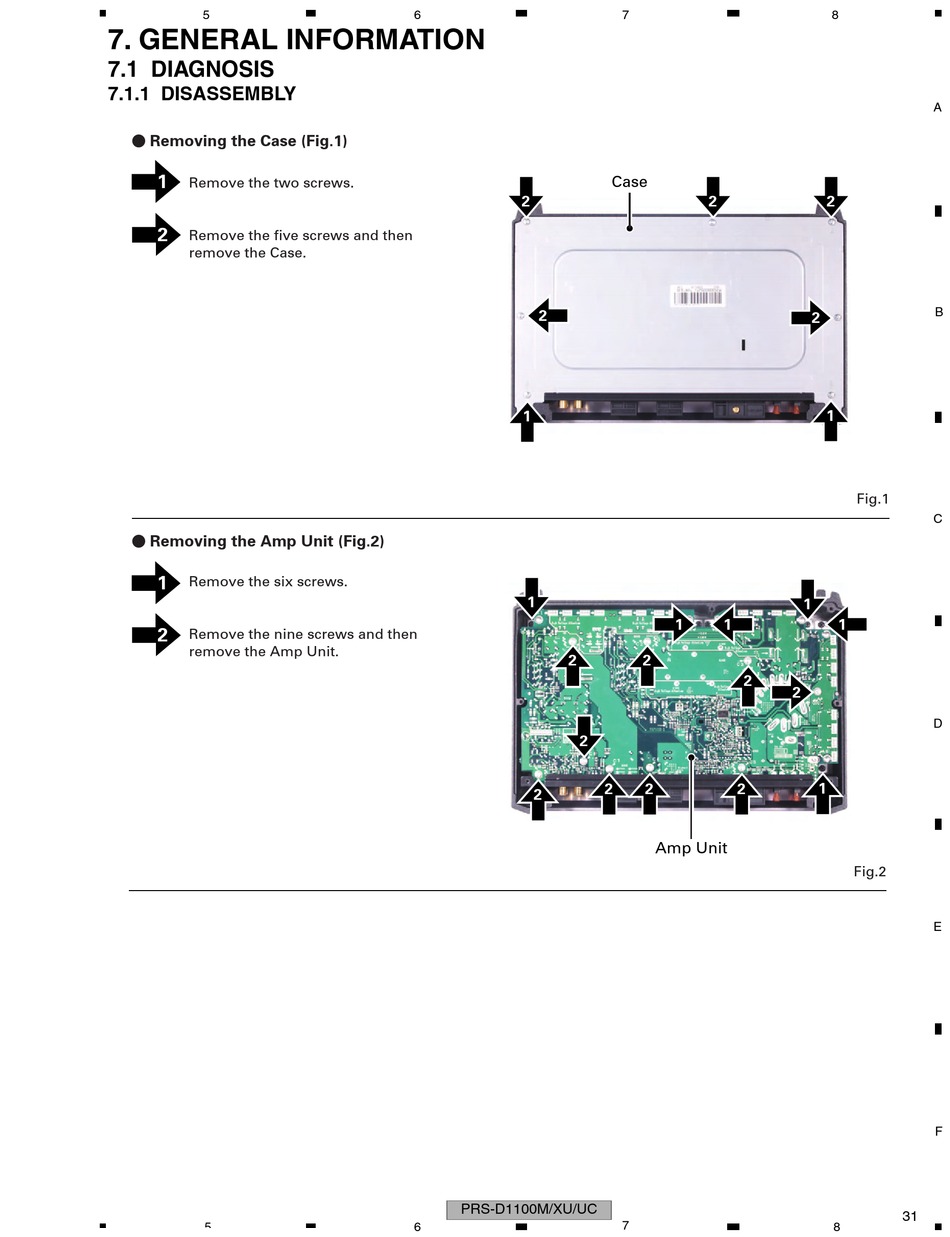

7. GENERAL INFORMATION

7.1 DIAGNOSIS

7.1.1 DISASSEMBLY

- Removing the Case (Fig.1)
1
Remove the two screws.
2
Remove the five screws and then
remove the Case.
-
Removing the Amp Unit (Fig.2)
1 Remove the six screws.
2 Remove the nine screws and then
remove the Amp Unit.
5
6
2
2
1
1
2
2
2
PRS-D1100M/XU/UC
6
7
Case
2
1 1
2
2
2 2 2
Amp Unit
7
8
A
2
B
2
1
Fig.1
C
1
1
2
D
1
Fig.2
