Summary of Contents for HP ProBook 4410s
Page 1

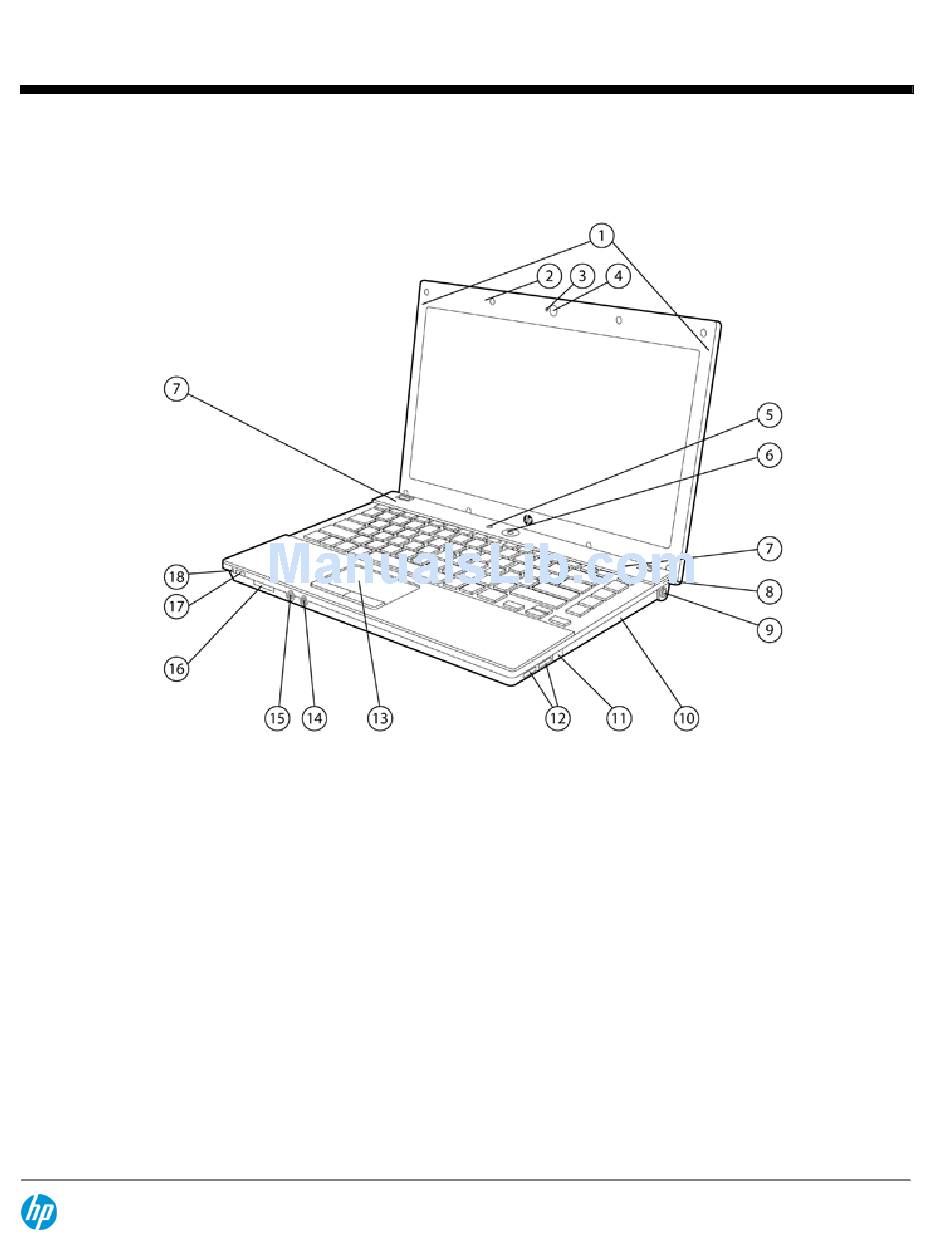

HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Overview Windows®. Life without Walls™. HP recommends Windows. 1. WLAN antennas Optical drive 2. Integrated microphone Optional RJ-11/modem port 3. Webcam light (works with optional webcam) (2) USB 2.0 ports 4.
Page 2
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Overview 1. ExpressCard/34 slot 4. VGA connector (external monitor/projector) 2. (2) USB 2.0 ports 5. RJ-45/Ethernet port 3. HDMI port 6. Kensington Lock slot Battery release latches Battery bay DA - 13260 Worldwide —...
Page 3
Optional integrated 2 MP webcam Full-sized spill-resistant keyboard with better spaced keys Up to 500 GB 7200 rpm or 5400 rpm hard drive with HP 3D DriveGuard protection Up to 8 GB of DDR2 or DDR3 SDRAM supported, dual channel memory support DA - 13260 Worldwide —...
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9600 (2.8 GHz, 6 MB L2 cache, 1066 MHz FSB)* (Availability depends Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz...
Page 5
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Standard Features † Windows Vista Business disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order annually at least 25 customer systems with the same custom image.
Page 6
* Maximum memory speed will vary based on system configuration. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Page 7
(Intel 802.11a/b/g only). Keyboard The HP spill-resistant keyboard is designed using a Mylar film that minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys.
Page 8
Drive* DVD+/-RW SuperMulti DL LightScribe Drive DVD-ROM Drive *HP ProBook 4410s support for the Blu-ray DVD drive requires Mobile Intel GM45 Express chipset and Windows7 or Windows Vista; HP ProBook 4411s supports it with any offered Windows operating system. Interfaces...
Page 9
Outlook after system startup. NOTE: On the HP ProBook 4410s and 4411s, QuickLook 3 requires DDR3 memory. It is accessible with Windows 7, Windows Vista or Windows XP when the notebook is off. Timing may vary depending on the system configuration.
Page 10
6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter) HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Battery Primary battery 6-cell (47 WHr) Li-Ion battery DA - 13260 Worldwide —...
Page 11
1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
Page 12
HP 4 GB (DDR2 800 MHz) SODIMM KT294AA Storage HP Notebooks USB Diskette Drive DC361B HP Primary SATA 250 GB 5400 rpm Hard Drive AK072AA HP Primary SATA 120 GB 7200 rpm Hard Drive AH920AA HP 250 GB USB Pocket Media Hard Drive...
Page 13
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
DVD-ROM Drive Fixed optical drive bay *HP ProBook 4410s support for the Blu-ray DVD drive requires Mobile Intel GM45 Express chipset and Windows 7 or Windows Vista; HP ProBook 4411s supports it with any offered Windows operating system. Internal Storage Device...
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.22 in (at front) x 13.2 in x 9.15 in 31.0 mm (at front) x 336 mm x 232.4 mm Weight Starting at 5.0 lb (2.27 kg) NOTE: Height varies depending upon where on the notebook the measurement is made.
Page 16
HP ProBook 4411s Notebook PC Technical Specifications UKRSERTCOMPUTER * Configurations of the HP ProBook 4410s and HP ProBook 4411s that are ENERGY STAR qualified are identified as HP ProBook 4410s ENERGY STAR and HP ProBook 4411s ENERGY STAR on HP websites and on www.energystar.gov.
Page 17
System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Displays DA - 13260 Worldwide — Version 7 — September 21, 2009...
Page 18
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications 14.0-inch LED-backlit HD Active Area (W x H) 12.16 x 6.85 in (30.9 x17.4 cm) (1366 x 768) Diagonal Size 14.0 in (35.6 cm) anti-glare Surface Treatment...
Page 19
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications 500 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 20
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications 250 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 21
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications 500 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 22
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications 250 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
Page 23
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications DVD-ROM Drive Access Times Random < 110 ms CD (typical) < 110 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s 8X-DVD Up to 10,800 KB/s...
Page 24
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Blu-ray ROM DVD+/-RW Access Times Random <190 ms CD-ROM (typical) SuperMulti DL LightScribe < 190ms DVD-ROM (typical) Drive <230 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM...
Page 25
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz – 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz – 48kHz...
Page 26
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications HP un2420 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), 900Mhz (UTRA FDD Band VIII), 850MHz (UTRA FDD Band V)
Page 28
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications IEEE 802.11g IEEE 802.11n (draft 2.0)* * The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN...
Page 29
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Operating Voltage 3.3V +/- 9%, 1.5V +/- 5% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating –40° to 176° F (–40° to 80° C)
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
Page 31
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista. Broadcom 4322AGN Wireless LAN Standards IEEE 802.11a...
Page 32
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Power Management ACPI compliant power management 802.11 compliant power saving mode Receiver Sensitivity 270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -92 dBm...
Page 33
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric...
Page 34
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications FAX Profile (FAX) Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP) indicates the profile is supported by Microsoft Windows XP SP2...
Page 35
HP ProBook 4410s Notebook PC QuickSpecs HP ProBook 4411s Notebook PC Technical Specifications Temperature Operating –4° to 158° F (–20° to 70° C) Non-operating –40° to 176° F (–40° to 80° C) Humidity Operating 10% to 90% Non-operating 5% to 95%...
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
Page 37
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html):...
Page 38
This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
Page 39
HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
