Bosch ISC-BPQ2-W12 Installation Manual

Blue Line Gen2

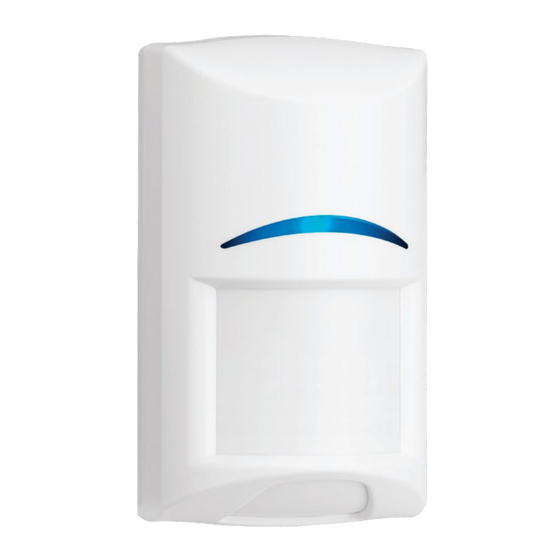

Quad PIR Motion Detector
ISC-BPQ2-W12
en Installation Guide
Optional Brackets:
B328, B338, B335
1
1
2
© 2011 Bosch Security Systems, Inc.
2,2 m - 2,75 m
(7.5 ft - 9 ft)
Recommended:
2,2m (7.5 ft)
NOTE:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
UL/C-UL
Perform Walk Test at least once a year.
Use only a Listed limited-power source.
The Listed control unit or a Listed burglary power supply must
provide 4 hours (40 mAh) of standby power
.
Install the unit in accordance with National Electrical Code
NFPA 70 and Part 1 of the Canadian Electrical code CSA C22.1.
SELV
Connect all wiring to a safety extra-low voltage (SELV) circuit only.
2
EN 50131-2-2 Grade 2
EN 50130-5 Environmental Class II
IP30 IK04 (EN 60529, EN 50102)
Ligue todas as cablagens apenas a um circuito de
segurança de tensão extra baixa (SELV).
Conecte el cableado únicamente a un circuito
de seguridad para voltajes muy bajos (SELV).
INCERT B-509-0051/b
-30°C to +55°C
(-20°F to +130°F )
UL Listed installations,
the temperature
range is 0°C to +49°C
(+32°F to +120°F)
0 - 95% Relative Humidity
(0 - 85% UL/C-UL installations)
För svensk installationsanvisning se www.boschsecurity.se.
3
Sluit alle bedrading uitsluitend aan op een circuit
met een extra lage veiligheidsspanning.
Prenez soin de connecter tous les câbles à un
circuit à très basse tension de sécurité (TBTS).
Collegare tutti i cavi esclusivamente a un circuito
SELV (circuito di sicurezza a bassissima tensione).
Changes or modifi cations not expressly approved
by Bosch Security Systems, Inc. can void the
user's authority to operate the equipment.
Pour les installations
Alle Drähte sind ohne Ausnahme an
certifi ées NFA2P,
Niederspannung anzuschließen.
Température de
fonctionnement
Certifi cat NF A2P 2620200002
-10°C à +55°C
2 boucliers NF324 - H58
Autosurveillance à l'ouverture
Immunité champ magnétique
Testé sans masque de vision verticale
www.afnor.org
www.cnpp.com
4
F.01U.139.795 | 06 | 2011.6 | 1
