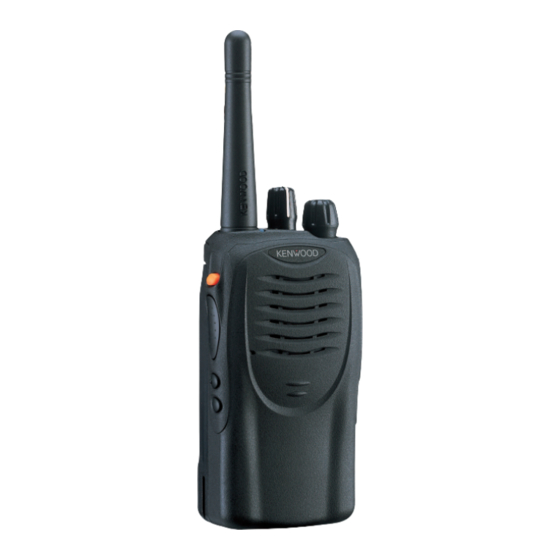

Kenwood TK-2160 Specifications

TK-2160/3160
Compact VHF/UHF FM Portable Radios
Setting the pace with a compact, simple and reliable design, Kenwood's
TK-2160/3160 portables are the new benchmark of performance. With such
features as priority scan, VOX, and MIL-STD 810 & IP54/55 weatherproofing,
these units are all set to work rain or shine.
COMPACT DESIGN
Compact enough to carry anywhere with ease, this
smart new radio has a distinctively ergonomic form
that's handy to hold and operate.
OPERATING EASE
The rotary and key controls on the TK-2160/3160
have been designed to provide the user with positive
detent feedback even if carried and operated under-
cover or in a pocket.
INTERNAL VOX/HANDS FREE READY
Enjoy the convenience of hands-free operation using
an optional headset like the KHS-21. By simply
talking, the internal VOX (voice-operated transmission)
with 10-level sensitivity adjustment provides PTT
action. VOX is also ideal for specialized job tasks and
events where hands-free, constant and/or repetitive
communications is necessary.
PRIORITY SCAN & TALK BACK
Scanning is a simple way to monitor multiple
channels (16-channel capacity) and the TK-2160/3160
model offers both standard and priority scan modes.
Talk Back allows immediate response to a received
call without having to manually search or change
channels.
BUILT-IN VOICE SCRAMBLER
The TK-2160/3160 includes a voice inversion-
scrambling feature that provides basic communications
security against casual eavesdropping.
FleetSync TM PTT ID, SELCALL & EMERGENCY
Utilizing Kenwood's FleetSync
protocol, the TK-2160/3160 has PTT ID (ANI: automatic
number identification) and Selective Calling capabilities
for managed dispatch operations. For hazardous/
hostile duty environments, the orange key can also
be programmed for Emergency status to alert the
dispatcher and/or operator in distress.
DMS (Digital Message System) function has been renamed to FleetSync.
PROGRAMMABLE FUNCTION KEYS
The three side PF Keys are programmable to any of
the many functions available on the TK-2160/3160,
permitting a customized fit for specific users
(including the orange key).
Actual size
K E N W O O D
QT/DQT/DTMF/2-TONE
The industry standard tone/code squelching formats
QT (CTCSS) and DQT (digital) provide system access
and group segregation on shared frequencies. DTMF
PTT ID is included for dispatch operations or for a
simple remote control application. The DTMF decode
capabilities include a selective call ID, transpond
with ID, "wild card" group calling and radio stun.
The TK-2160/3160 is also equipped with 2-Tone
encode and decode capability for legacy paging
systems and selective call use (three tone pairs, A, B,
C & D tones; 288.5-3000 Hz). All selective calling
formats (FleetSync
tones and LED indications.
PROGRAMMABLE CALL ALERT TONES
The programmable call alert pattern, duration, tone
and volume provide personalized and distinctive
selective calling alerts.
HIGH-QUALITY AUDIO
Clear audio means confident communications. The
TK-2160/3160 large speaker, full half-watt of audio
output and tailored response characteristics provide
optimum audio even in noisy environments.
8- TO 12-HOUR BATTERY PACKS
The KNB-25A Ni-Cd 8-hour* pack is the economical
standard for the TK-2160/3160 portables. The optional
KNB-24L Lithium Ion 9-hour* pack offers the ultimate
in compact, lightweight carrying comfort. For super
high-capacity talk and standby time, the KNB-26N
Ni-MH 12-hour pack is the powerhouse of choice.
*Battery life is based on 5% transmit-5% receive-90% standby duty cycles.
TM digital signalling
TOUGH & WATER RESISTANT
Built tough to take rough treatment
in its stride, these portables have
passed the advanced IP54/55 and
MIL-STD 810 "blowing rain" water-
proof tests and meet/exceed eleven other stringent
MIL-STD 810 C/D/E/F environmental standards.
This proves that whatever conditions may be,
the TK-2160/3160 is ready to answer the call.
OPTION BOARD
Despite its compact design, the TK-2160/3160 can be
fitted with option boards for advanced security.
M E A N S
TM , DTMF & 2-Tone) have call alert
B U S I N E S S
