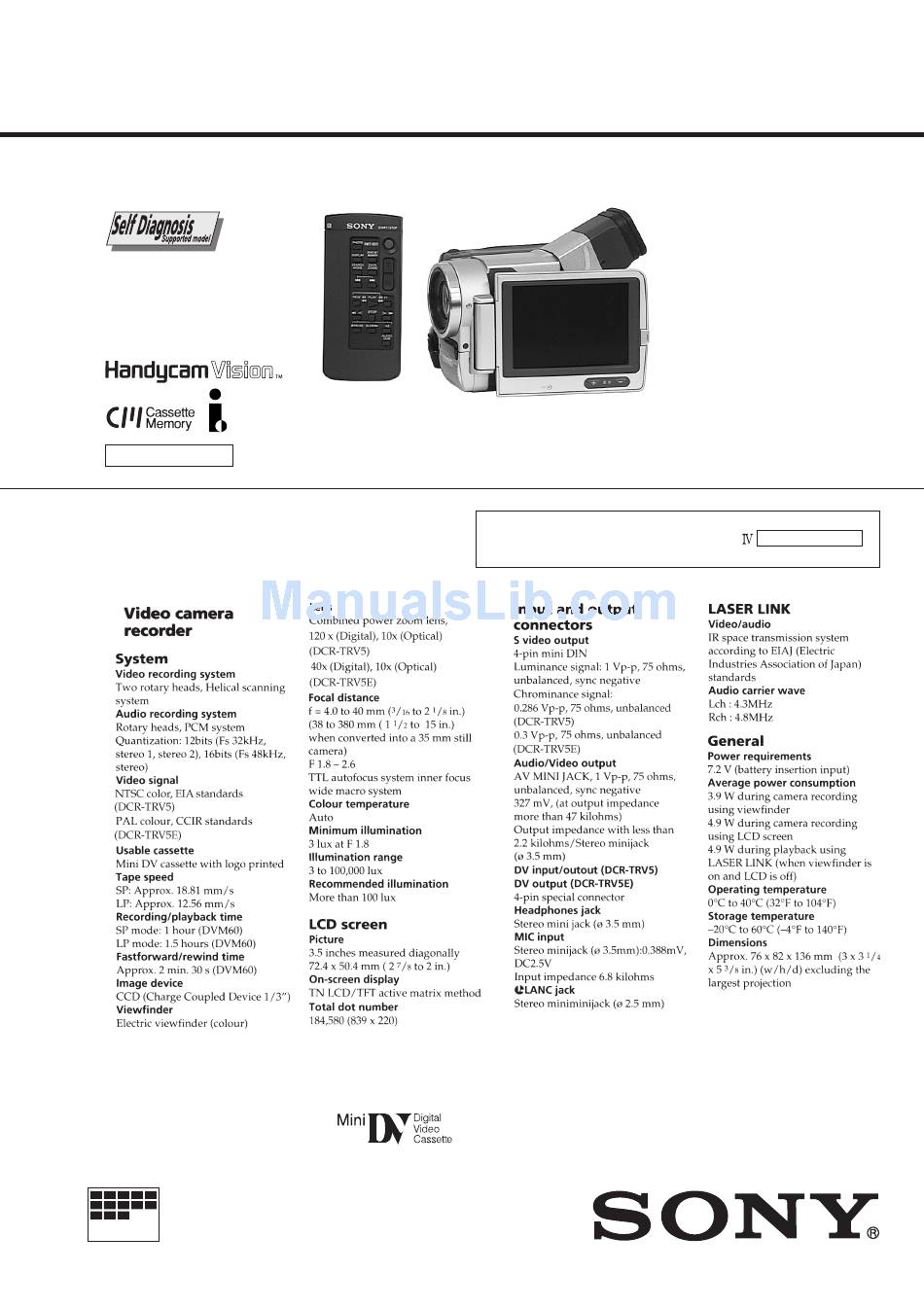

SERVICE MANUAL
C MECHANISM
NTSC model: DCR-TRV5
PAL model:
DCR-TRV5E
MICROFILM
DCR-TRV5/TRV5E
Photo: DCR-TRV5E
RMT-809
For MECHANISM ADJUSTMENTS, refer to the "DV
MECHANICAL ADJUSTMENT MANUAL
(9-974-050-11)
SPECIFICATIONS
DIGITAL VIDEO CAMERA RECORDER
RMT-808/809
Canadian Model
DCR-TRV5
AEP Model
UK Model
Hong Kong Model
DCR-TRV5E
E Model
Tourist Model
DCR-TRV5/TRV5E
C MECHANISM "
— Continued on next page —
