Summary of Contents for Haier LE32K700

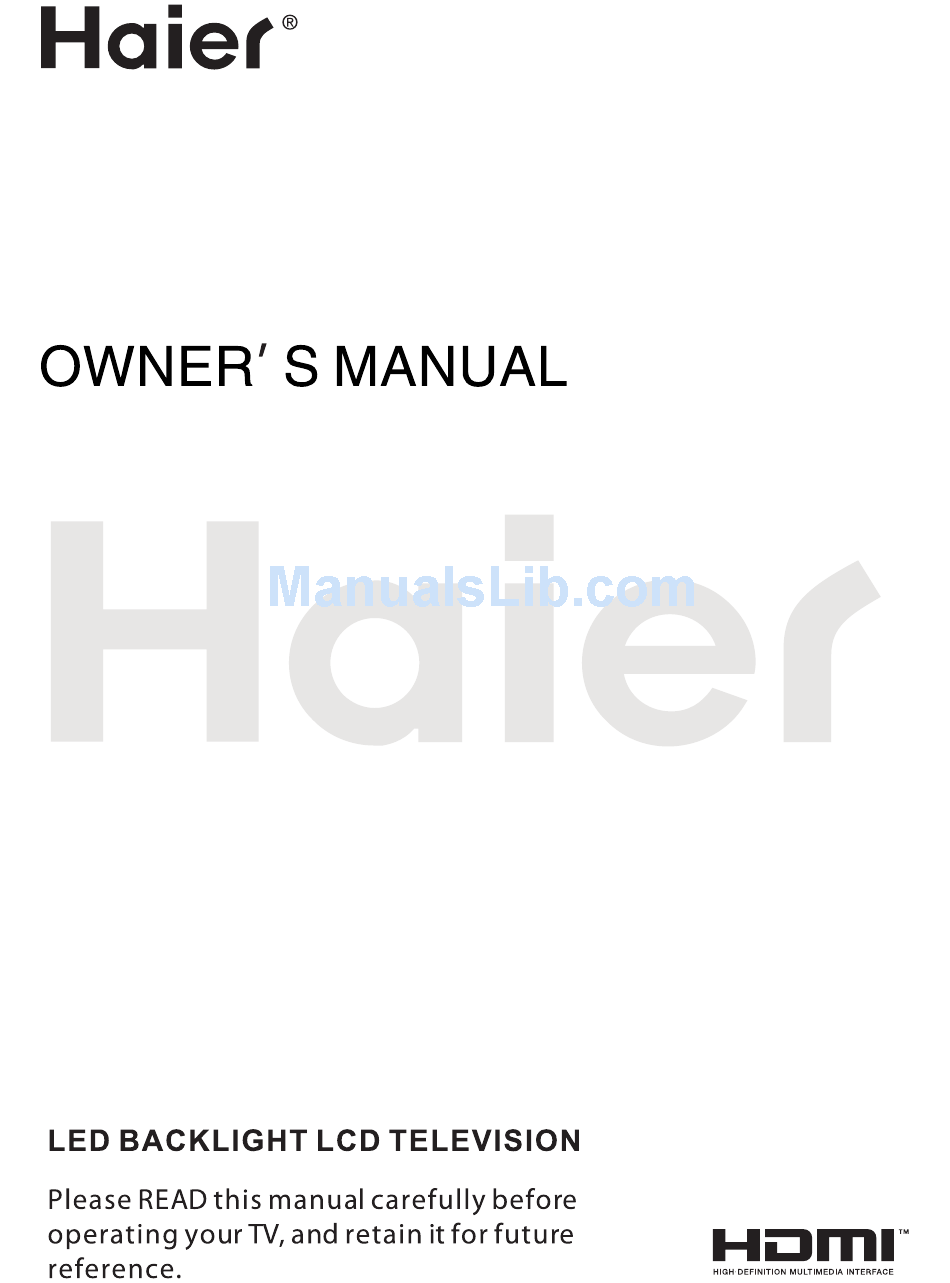

  • Page 1 LE32K700...

  • Page 2: Table Of Contents

    Table of Contents … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …1 Characteristic Functions …………………………………………………………………………1 Important Safety Instructions … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …3 Technical Specifications The Technical Specifications for Final Product…...

  • Page 3: Characteristic Functions

    Characteristic Functions 1. LCD panel with no glint and low radiation can ease eyes' fatigue and protect eyes. 2. High-quality LCD with LED backlight panel is adopted with high brightness, high contrast, wide viewing angle, and super fast response time. Super fast response time can greatly eliminate the shadow of moving images.
  • Page 4 Important Safety Instructions ● The slots on the case is designed to release heat so as to assure that all inside components will not reach an extra high temperature and can work normally for a long time. Please do not cover the holes while place it.

  • Page 5: Technical Specifications

    Important Safety Instructions ● Please do not use the machine immediately when moving the machine from low temperature place to high temperature one, or install and use at the place of facing air conditioning, otherwise it may cause the condensation in the machine, to cause fault. ●...

  • Page 6: Technical Specifications For Tv

    Technical Specifications Panel size 42" Max. Resolution 1920×1080 Best Resolution 1920×1080@60Hz Pixel Pitch 0.4845mm×0.4845mm Active Area 930.24mm×523.26mm Color 1.06 Billion Power Supply 100V-240VAC 60/50Hz Power Consumption 8W+8W of Speaker Unpacking: 992×597×49mm or 1005×615×47mm Net Weight: 14Kg × × Packing: 1105 720 135mm Gross Weight: 16Kg Excluding base Dimension (L×H×W)

  • Page 7: Installation & Connection

    Installation & Connection Base Assembly Installation Fasten the base supporting cover to the back cover of machine (It needn't to operate this step when base support cover had been installed.), and then Insert base assembly to supporting shield hole of complete machine back cover as illustrated direction of arrow, to make supporting shield and supporting hole center in the same line, finally fasten the screw.

  • Page 8: Power Connection

    Installation & Connection Power Connection Plug one end of the power cord into the input port of the machine's power supply and then insert the other end into the socket of the electrical source (AC 100V-240V, 60/50Hz). Notes: 1. When connecting the power cord, be sure to turn off the machine and other equipment's power.

  • Page 9: Position Of Control Keys

    Position of Control Keys 1) Power indicator and remote receiving sensor. 2) SOURCE: Press this key to enter the menu of signal source and choose signal source. 3) CH-/CH+: Press these two keys to select the channel, and adjust the options you need under OSD operation.

  • Page 10: Basic Operation Instruction

    Remote Control Telecontrol battery installation method Take off the cover of battery box, fix two AAA batteries with 1.5 volt, and conform with the polarity of remote control battery box. Note: Appearance of the remote control may be different from this picture, please according to practicality.

  • Page 11: Menu Operation Instruction

    Basic Operation Instruction Menu Operation Instruction Press ''MENU'' key on the remote control or on the control panel. The TV will display the main menu. 1. Press ''Left/Right'' key on the remote control or ''VOL+/ Picture Mode Soft VOL-''key on the control panel to select the adjustment Contrast sort menu, which includes 4 sorts: PICTURE, SOUND,...

  • Page 12: Sound

    Basic Operation Instruction Option Description Function Aspect Ratio Select picture scale "Full, "4:3", "Subtitle","Film" four modes Color Temp Select color temperature mode There are three Color Temperature modes, "Standard", of the picture "Warm", "Cool ". Noise Reduction Select model of 3D NR "Middle", "High", "Off", "Low".
  • Page 13 Basic Operation Instruction Select to enter the submenu. Press "Up/Down" key on the remote control or "CH+/CH-" key on the control panel to choose what you need. Press the "Left/Right" key on the remote control or the "VOL+/VOL-" key on the control panel to adjust analog value or state Color System (see below table).

  • Page 14: Hotel Function(Optional)

    Basic Operation Instruction Move: After select channel, press "2" key on the remote control, then press ''Up/Down'' key on the remote control to select position where you wish place, then press "MENU" key on the remote control to return. Skip: Press ''Up/Down'' key on the remote control to select channel, press ''3'' key on the remote control to open or close "Skip".
  • Page 15 Basic Operation Instruction Press "Left/Right" key on the remote control to select the document sort menu, which includes 4 USB 2.0 sort: PHOTO, MUSIC, MOVIE, TEXT. ★Remote Control Shortcut Keys The last two row keys on the remote control are used for USB operation.
  • Page 16 Basic Operation Instruction Clockwise: Press "Left/Right" key on the remote control to select this function, press "OK" key to clockwise rotation photo. Counter-clockwise: Press "Left/Right" key on the remote control to select this function, press "OK" key to counter-clockwise rotation photo. Zoom in: Press "Left/Right"...

  • Page 17: Simple Troubleshooting

    Simple Troubleshooting Symptom Factor Solution 1.Antenna cable connector is loose, 1.Check the antenna cable connector plug whether or cable is damaged. not loose, cable whether or not perfect. 2.Channel setting is incorrect. 2.Refer to channel setting method, resetting again. Snowflake speckle and 3.Antenna cable type is not matching.
