Kenmore 30" Ceramic Installation Instructions Manual

Electric cooktop
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

INSTALLATION
AND SERVICE MUST BE PERFORMED BY A
QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
llr__FOR
YOUR SAFETY: Do not store or use gasoline
or other
iflammable
vapors and liquids
in the vicinity
of this or any other appliance,
Canada

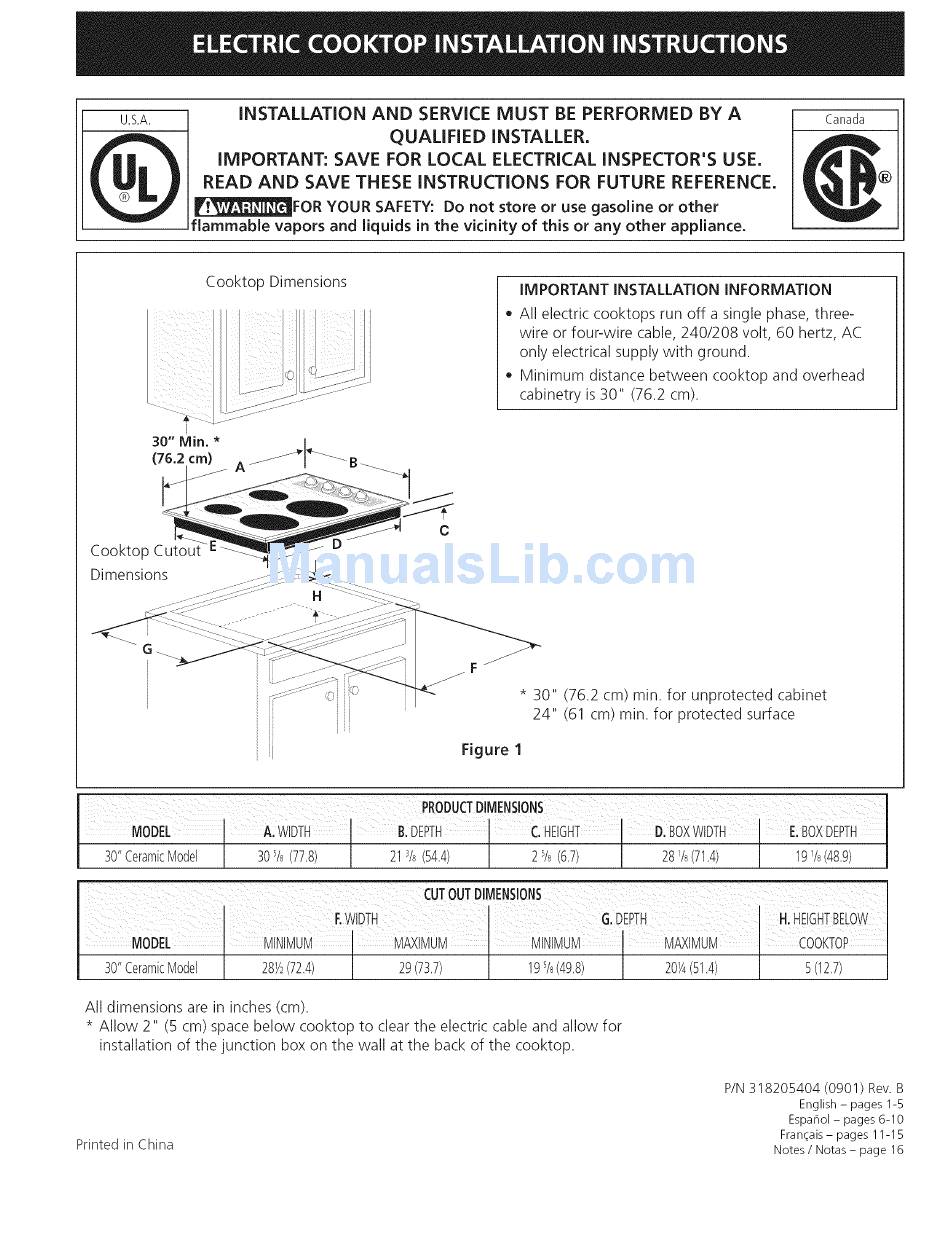

Cooktop Dimensions
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-
wire or four-wire cable, 240/208 volt, 60 hertz, AC
only electrical supply with ground.
• Minimum distance between cooktop and overhead
cabinetry is 30" (76.2 cm).
Cooktop Cutout
Dimensions
C
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Figure 1
MODEL
A:WIDTH
B.DEPTH
C HEIGHT
D.BOXWtDTH
E.BOX DEPTH
30"Ceramic Model
30s/8 (77.8)
213/8 (54,4)
2 % (6.7)
28V8 (71.4)
I9 _/8 ( 48,9)
30"Ceramic Model
28Y_ ( 72.4)
29(73.7)
195/8 ( 49.8)
20_A (51,4)
5(12.7)
All dimensions are in inches (cm).
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for
installation of the junction box on the wall at the back of the cooktop.
Printed in China
P/N 318205404
(0901)
Rev. B
English - pages 1-5
Espahol-
pages 6-10
Fran_ais- pages 11-15
Notes / Notas - page 16
