QuickSpecs
Overview

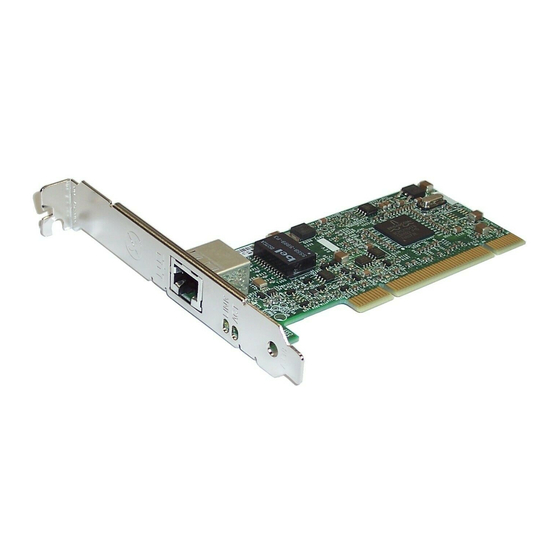

The NC1020 server adapter is a single-port, copper, Gigabit Ethernet PCI bus adapter that supports basic server functionality. It runs
over Category 5 (or better) twisted-pair cabling and is targeted to customers who deploy HP ProLiant 100 and 300 series servers. It is
supported in 32-bit PCI, 33/66 MHz slots, comes with 64KB onboard memory, and provides 10/100/1000T auto-negotiated speed
and duplex.
The NC1020 has been designed with server needs in mind and offers these server features: Wake-on-LAN, PXE support, as well as
link and activity LEDs. Additionally, it supports these IEEE NIC standards: 802.3, 802.3u, 802.3ad, and 802.3ab, 802.1x, 802.1Q
and 802.1p.
Models
Models
Models
Models
HP NC1020 PCI 1000T Gigabit Server Adapter
Kit Contents
Kit Contents
Kit Contents
Kit Contents
NOTE: For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and
NOTE:
NOTE:
NOTE:
specifications, please visit: http://h71028.www7.hp.com/ERC/downloads/4AA0-6064ENW.pdf.
HP NC1020 PCI 1000T Gigabit Server Adapter
CD containing Drivers, User Guide, and Installation and Diagnostic Utilities
Quick Install Card
Product Quality Statement
Product Warranty Statement
DA - 11890
Worldwide — Version 13 — September 5, 2007
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
HP NC1020 PCI 1000T Gigabit Server Adapter
353377-B21
Page 1
Advertisement
Related Manuals for HP NC1020 PCI 100T
Summary of Contents for HP NC1020 PCI 100T
- Page 1 The NC1020 server adapter is a single-port, copper, Gigabit Ethernet PCI bus adapter that supports basic server functionality. It runs over Category 5 (or better) twisted-pair cabling and is targeted to customers who deploy HP ProLiant 100 and 300 series servers. It is supported in 32-bit PCI, 33/66 MHz slots, comes with 64KB onboard memory, and provides 10/100/1000T auto-negotiated speed and duplex.
- Page 2 These port bonding techniques enable users to install up to eight NC1020 adapters in a HP ProLiant server and aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmission.
-
Page 3: Network Management
Management Support Management Support Like all HP server adapters, the NC1020 ships with drivers and agents that can be managed from all versions of HP Insight Manger 7, as well as using any management application that supports SNMP. Server Integration... -
Page 4: Related Options
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter 394795-B21 HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter 313881-B21 HP NC7170 PCI-X Low Profile Dual Port 1000T Gigabit Server Adapter 383738-B21 HP NC7771 PCI-X 1000T Gigabit Server Adapter 290563-B21... -
Page 5: Technical Specifications
This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. DA - 11890 Worldwide —... - Page 6 Microsoft and Windows are US registered trademarks of Microsoft Corporation. Unix is a registered trademark of The Open Group. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
