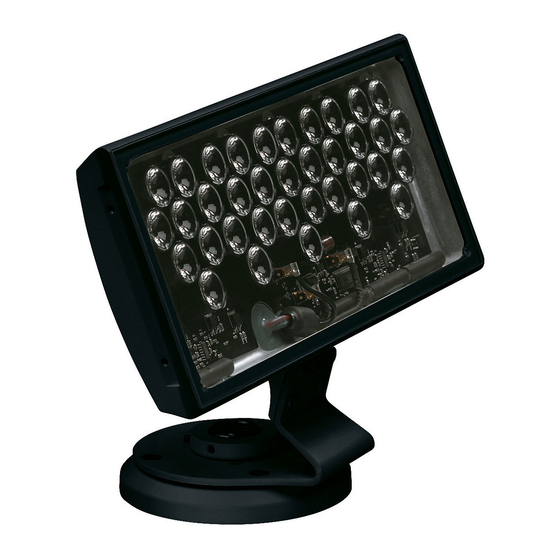

Philips ColorBlast 12 Quick Manual
Color-changing led wash light for use both indoors and outdoors
Hide thumbs
Also See for ColorBlast 12:
- User manual (26 pages) ,
- Installation instructions manual (8 pages)
Related Manuals for Philips ColorBlast 12
Summary of Contents for Philips ColorBlast 12

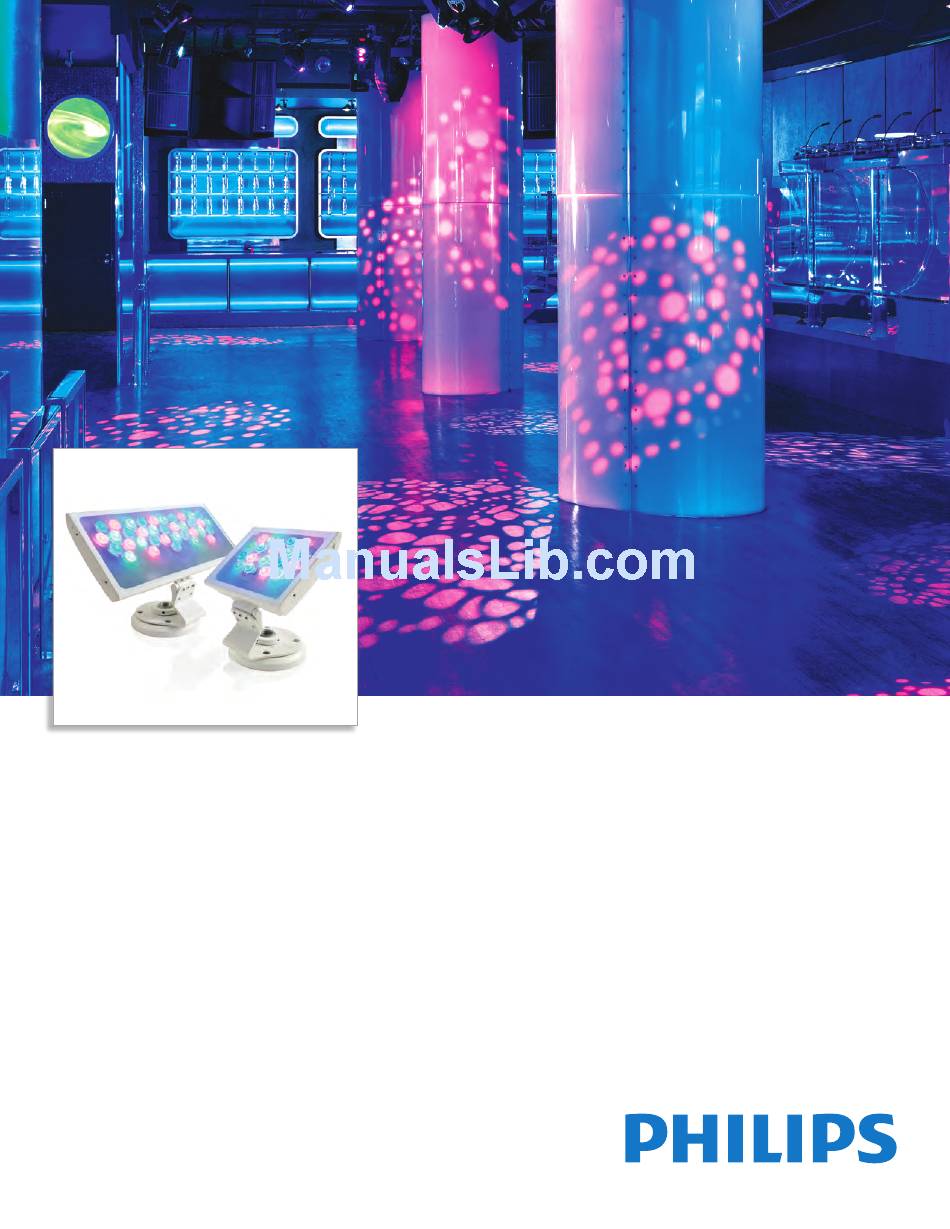

- Page 1 ColorBlast 12 ColorBlast 6 Color-changing LED wash light for use both indoors and outdoors...
- Page 2 ColorBlast can be used in both indoor and outdoor installations. ColorBlast 12 high-intensity LEDs produce superior light output of over 1200 lumens, while ColorBlast 6 produces a lower intensity output in a compact, low-profile housing. Both versions offer full pan and tilt rotation, flexible mounting options, two beam angles, and superior control through Philips or third-party DMX controllers. • Two beam patterns — A frosted glass lens (22°...
- Page 3 Soundbar’s lighting designers enlisted the help of intelligent LED lighting from Philips Color Kinetics. The industrial building’s exterior façade features glass panels, lit by ColorBlast 6 fixtures, which gradually change color over the course of an hour. The compact,...
- Page 4 Photometrics Photometric data is based on test results from an independent NIST traceable testing lab. IES data is available at www.colorkinetics.com/support/ies. ColorBlast 12 Illuminance at Distance Polar Candela Distribution Candela Table 10° beam angle Center Beam fc Beam Width 22.5 67.5 90º Cd: 0 27343 27343 27343 27343 27343 1708 fc 0.7 ft 0.7 ft...
- Page 5 ColorBlast 6 Polar Candela Distribution Illuminance at Distance Candela Table 10° beam angle Center Beam fc Beam Width 22.5 67.5 Cd: 0 90º 13754 13754 13754 13754 13754 860 fc 0.7 ft 0.7 ft 6424 6412 6484 6469 6352 4.0 ft 2,292 80º...
-
Page 6: Specifications
(320 mm) PDS-150e 24V (DMX or Ethernet) Interface PDS-60 24V (DMX, Pre-programmed, or Ethernet) Control 5.1 in 3.0 in Philips full range of controllers, including Light System Manager, (130 mm) (76 mm) Control System iPlayer 3, and Color Dial Pro, or third-party controllers 8.4 in (213 mm) Dimensions 8.4 x 6.3 x 5.1 in... - Page 7 109-000017-00 910503700096 PDS-60 24V DMX / Ethernet 109-000017-03 910503700097 Use Item Number when ordering in North America Typical ColorBlast installation For detailed wiring diagrams visit www.colorkinetics.com/support/wiring/ls_prod.html ColorBlast 12 & 6 fixtures Controller Keypad iPlayer 3 Controller ColorPlay 3 Software DMX Control 2 DMX Control 1 to fixtures to fixtures...
- Page 8 Designed specifically for the family of Blast fixtures, accessories provide additional options for controlling and dispersing light. Accessory holders snap to the front of the fixture and are required for mounting accessories. Accessory holders prevent accessories from falling out if the fixture is tipped or hung upside down. Item Type Housing Color Item Number Philips 12NC White 120-000003-03 — ColorBlast 12 Black 120-000003-04 — Accessory Holders White 120-000004-03 — ColorBlast 6 Black 120-000004-04 —...
-
Page 9: Start The Installation
Installation ColorBlast offers rich, saturated wall-washing color and color-changing effects, both indoors and outdoors. Both ColorBlast 12 and ColorBlast 6 are low-voltage fixtures, intended for use with the power / data supplies PDS 150e 24V and PDS-60 24V from Philips Color Kinetics. Owner / User Responsibilities It is the responsibility of the contractor, installer, purchaser, owner, and user to... - Page 10 4. Ensure that all additional parts and tools are available, including: ColorBlast 6 • The included 8-32 screws for indoor installations, or the 10-24 stainless steel screws for outdoor installations • The included 3/32 in hex key wrench • The included junction box gasket (optional) • Unless mounting directly to a wall, ceiling, or other surface, one 4 in (102 ColorBlast 12 mm) round US electrical junction box per fixture, rated for your application, with 3.5 in (89 mm) center-to-center screw holes for attaching the fixture’s base. (Refer to the junction box manufacturer’s literature for additional items required for mounting or sealing.) • Conduit as required • Contractor-grade room temperature vulcanizing (RTV) silicone sealant Included in the box Install the Fixtures ColorBlast 6 or ColorBlast 12 fixture If installing ColorBlast fixtures indoors, you can mount the fixtures directly to a (2) 8-32 screws for indoor installation wall, ceiling, or other suitable surface.
-
Page 11: Make Power Connections
2. Pull each fixture cable through a knockout in the side of the power / data supply. 3. Connect line, common, ground, and data to a provided connector, then snap the connector into the connector terminal inside the power / data supply housing. ColorBlast 12 wiring 4. Using wire nuts, connect the green ground wire from each fixture cable to the earth ground on the power / data supply,... -
Page 12: Attach Safety Cable
130° 3/32 in Philips Color Kinetics Copyright © 2009 – 2010 Philips Solid-State Lighting Solutions, Inc. All rights reserved. 3 Burlington Woods Drive Chromacore, Chromasic, CK, the CK logo, Color Kinetics, the Color Kinetics logo, ColorBlast, ColorBlaze, ColorBurst, eW Fuse, ColorGraze, ColorPlay, ColorReach, iW Reach, eW Reach,...
