Overview
1. Integrated RAID Controller Slot
2. (2) PCI-X 64 Bit/133MHz Slot
3. (6) PCI-Express x4 Slot
4. (8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Standard
5. (8) PC2-5300 Fully Buffered DIMM Slots per memory card -
Optional
6. Dual-Core Intel Xeon processor - Optional
7. Dual-Core Intel Xeon processor - Standard (2 processors
standard on all Performance Models)
8. (3) Hot Plug Redundant Fans - Standard

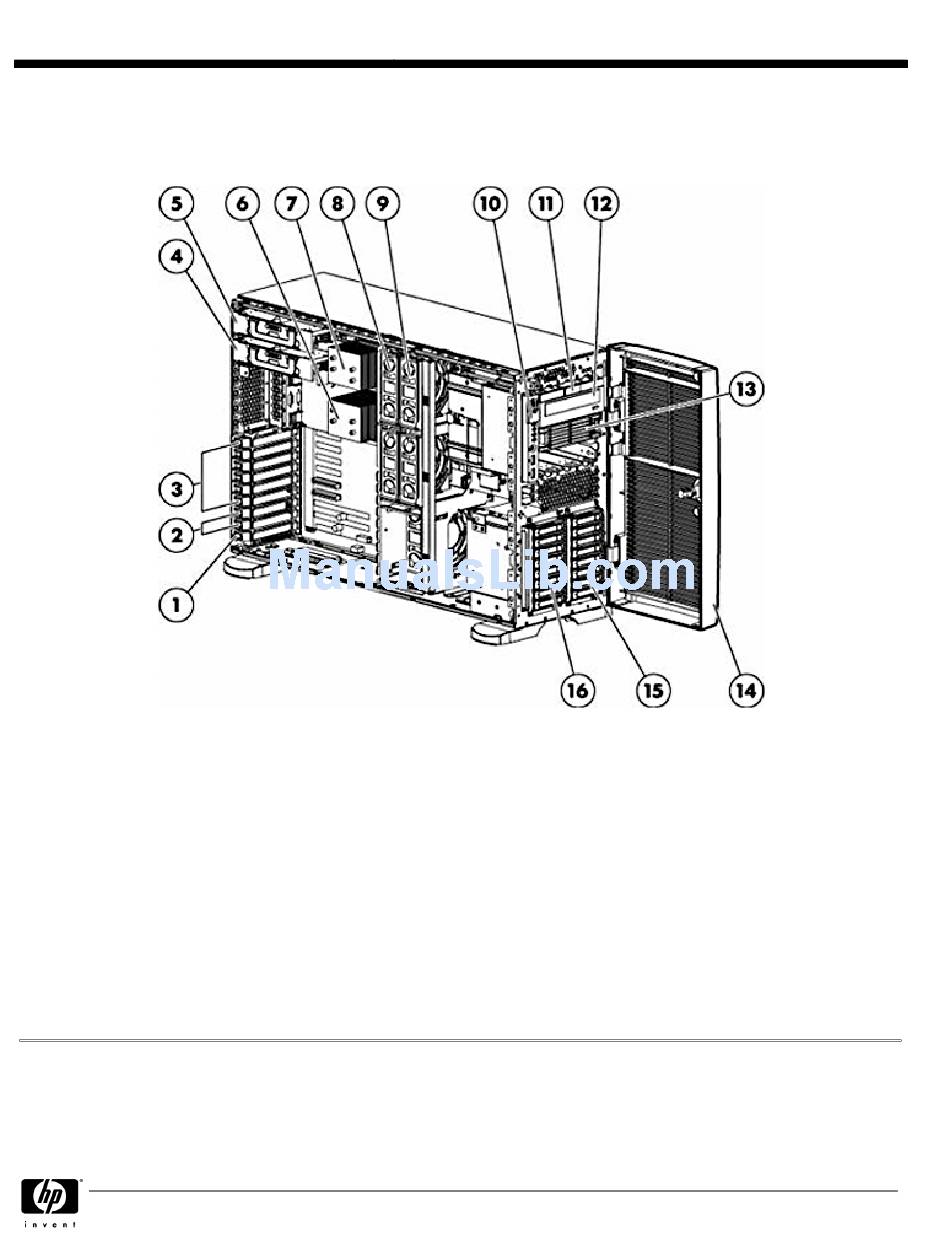

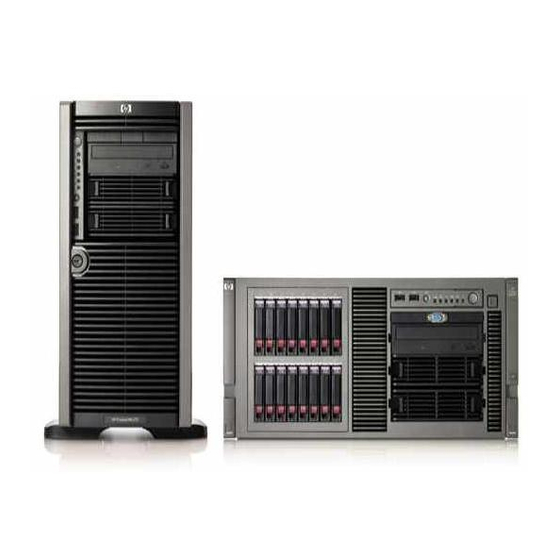

HP ProLiant ML370 G5 Tower
HP ProLiant ML370 G5 Tower call-outs
DA - 12478
Worldwide QuickSpecs — Version 1 — 6/26/2006
HP ProLiant ML370 Generation 5
9. (3) Hot Plug Redundant Fans - Optional
10. System Insight Display (SID)
11. Media Bay Spacer (Tower)/Video Connector (Rack)
12. DVD/CD-ROM Drive
13. Removable Media Bays
14. Front Bezel (Tower Model Only)
15. Hard Drive Bays 1-8 (Serial-attached SCSI (SAS) drives
supported - SFF)
16. Hard Drive Bays 9-16 - Optional Drive Cage (Serial-attached
SCSI (SAS) drives supported - SFF)
Page 1
