QuickSpecs
Overview
The HP ProLiant ML150 G6 is an expandable and affordable solution for growing businesses. Redundant power supply and redundant
fan options help to provide more protection on power and thermal to keep your critical business running. Data security, which is one of
the major concerns in the industry, is ensured by the TPM offering that provides data encryption to protect from data theft. Companies
with remote locations can take advantage of the ML150 G6 embedded Lights-Out 100 remote management feature to decrease
server/company downtime, decrease emergency travel needs, and increase overall productivity. Overall, the HP ProLiant ML150 G6 is
easy on your IT budget with significant headroom to grow with your business.

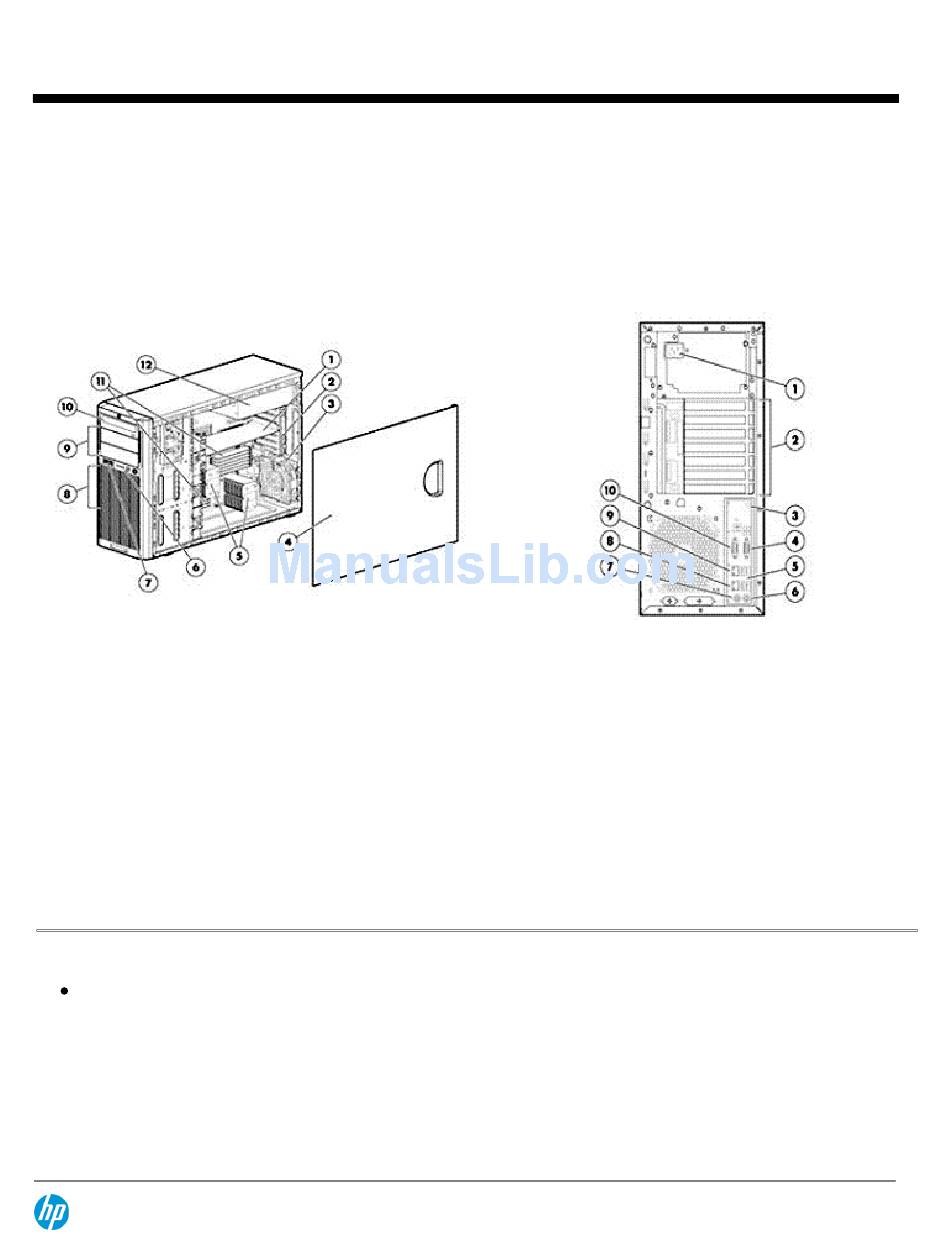

Front View:
1.
SATA/SAS adapter card
2.
Card bracket retainer
3.
Rear fan
4.
Side access panel
5.
Processor socket and Heatsink
6.
LED indicators and power button
7.
Upfront USB ports
8.
Hard drive bays (inside)
9.
One full height or two half height media bay (s)
10.
Optical drive media bay
11.
DIMM socket (total twelve DIMMs supported)
12.
Power Supply
What's New
Support for R5000 and R7000 Uninterruptible Power System.
DA - 13249 North America — Version 33 — September 24, 2012
HP ProLiant ML150 Generation 6 (G6)
Rear View:
1.
AC input connector
2.
Expansion slots
3.
UID LED
4.
VGA monitor connector
5.
USB 2.0 ports (4)
6.
Keyboard connector
7.
Mouse connector
8.
NIC port
9.
Dedicate NIC port
10.
Serial port connector
Page 1
