QuickSpecs
Overview
The HP ProLiant SL170z is part of a new family, HP ProLiant SL6000, of HP server solutions optimized for scale-out customers to
greatly reduce costs, maximize power efficiency, and maintain total flexibility. The SL6000 supports up to two independent HP
ProLiant SL170z G6 Servers in the 2U HP ProLiant z6000 G6 Chassis. The servers share power supplies and fans, providing greater
power and cooling efficiencies. The HP ProLiant SL170z G6 Server is a two socket Intel server with 16 DDR3 DIMM sockets.

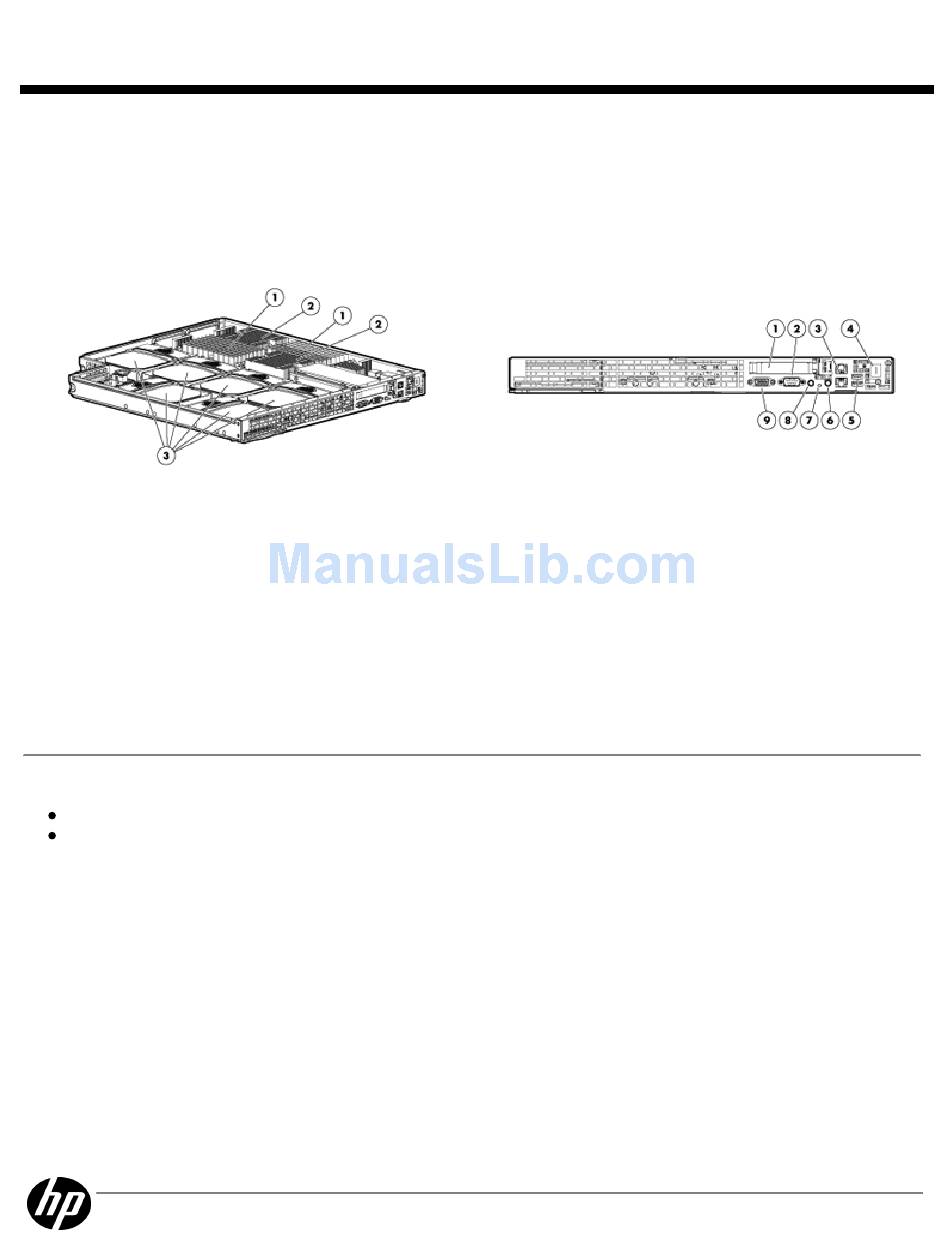

Open View:
Open View:
Open View:
Open View:
1.
16 DDR3 DIMM slots
2.
Up to two Intel® 5600 sequence processors
3.
Six 3.5" or eight 2.5" non-hot plug hard drives using a quick
release drive carrier
What's New
What's New
What's New
What's New
Support for up to two Intel® 5600 sequence processors
Support for Low-voltage memory
DA - 13332
North America — Version 21 — November 14, 2011
HP ProLiant SL170z Generation 6 (G6)
HP ProLiant SL170z Generation 6 (G6)
HP ProLiant SL170z Generation 6 (G6)
HP ProLiant SL170z Generation 6 (G6)
Front View:
Front View:
Front View:
Front View:
1.
Optional low profile x16 PCI-e Gen 2
2.
Serial Port
3.
(2) 1Gbit NIC
4.
Optional Dedicated Management port
5.
(2) USB Ports
6.
Power Button
7.
Health LED
8.
UID
9.
Video Port
Page 1
