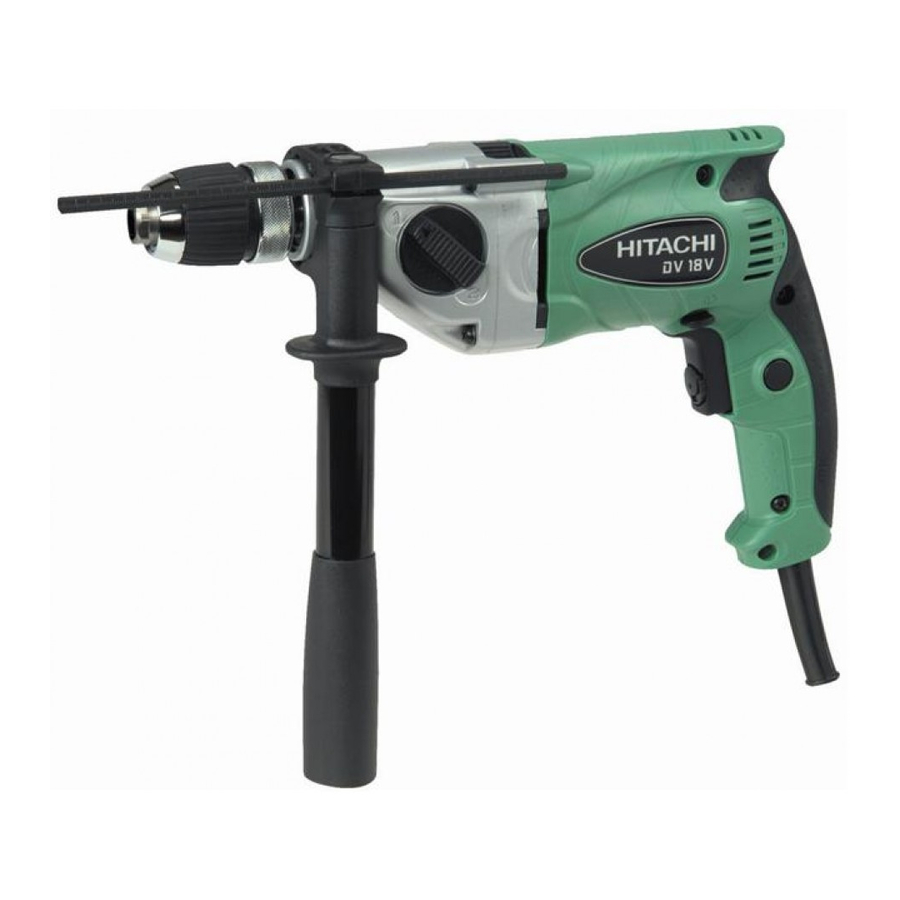

Impact Drill
Model DV 18V

Handling instructions

Note:
Before using this Electric Power Tool, carefully read through these
HANDLING INSTRUCTIONS to ensure efficient, safe operation. It is
recommended that these INSTRUCTIONS be kept readily available
as an important reference when using this power tool.

Advertisement

Table of Contents
loading

Related Manuals for Hitachi DV 18V

Summary of Contents for Hitachi DV 18V

  • Page 1: Handling Instructions

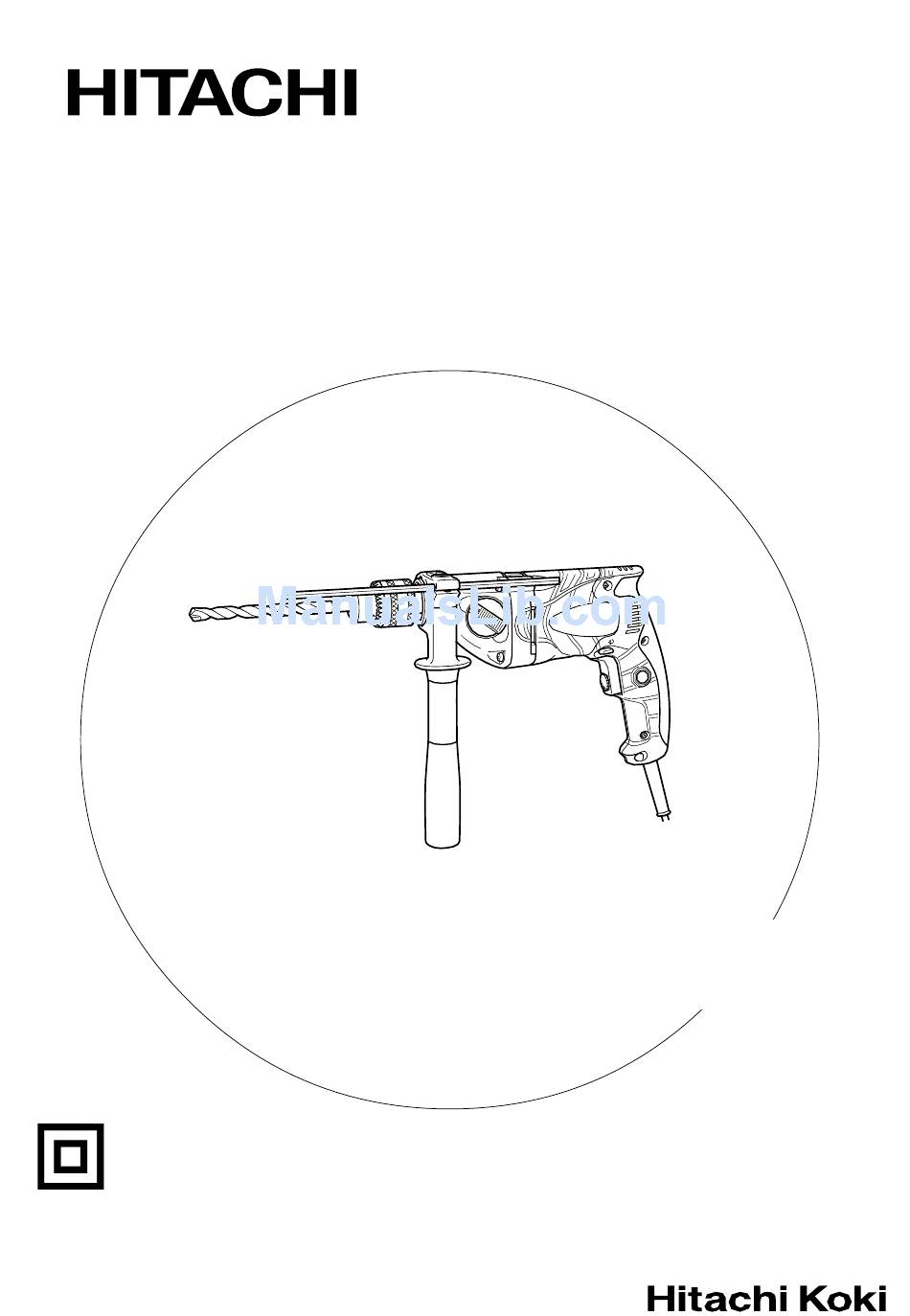

    Impact Drill Model DV 18V Handling instructions Note: Before using this Electric Power Tool, carefully read through these HANDLING INSTRUCTIONS to ensure efficient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as an important reference when using this power tool.

  • Page 2: General Safety Rules

    c) Avoid accidental starting. Ensure the switch is in GENERAL SAFETY RULES the off position before plugging in. Carrying power tools with your finger on the WARNING! switch or plugging in power tools that have the Read all instructions switch on invites accidents. Failure to follow all instructions listed below may result in d) Remove any adjusting key or wrench before electric shock, fire and/or serious injury.

  • Page 3: Specifications

    PRECAUTION 5. Always use the impact drill with clockwise rotation, Keep children and infirm persons away. when using it as an impact drill. (Fig. 1) When not in use, tools should be stored out of reach of children and infirm persons. PRECAUTIONS ON USING IMPACT DRILL 1.
  • Page 4 Drill chuck Chuck wrench mark Push button Switch trigger Tighten Loosen mark Fig. 2 Fig. 5 7. Fixing the side handle (Fig. 6) For keyless chuck (Fig. 3) Attach the side handle to the mounting part. (1) Mounting the bit Rotate the side handle grip in a clockwise direction Turn the sleeve counterclockwise and open the chuck.

  • Page 5: Maintenance And Inspection

    The desired rotation speed can be pre-selected with on this tool should ONLY be performed by a Hitachi the speed control dial. Authorized Service Center.
  • Page 6 This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
  • Page 8 Hitachi Koki Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99131612 F Printed in China...
