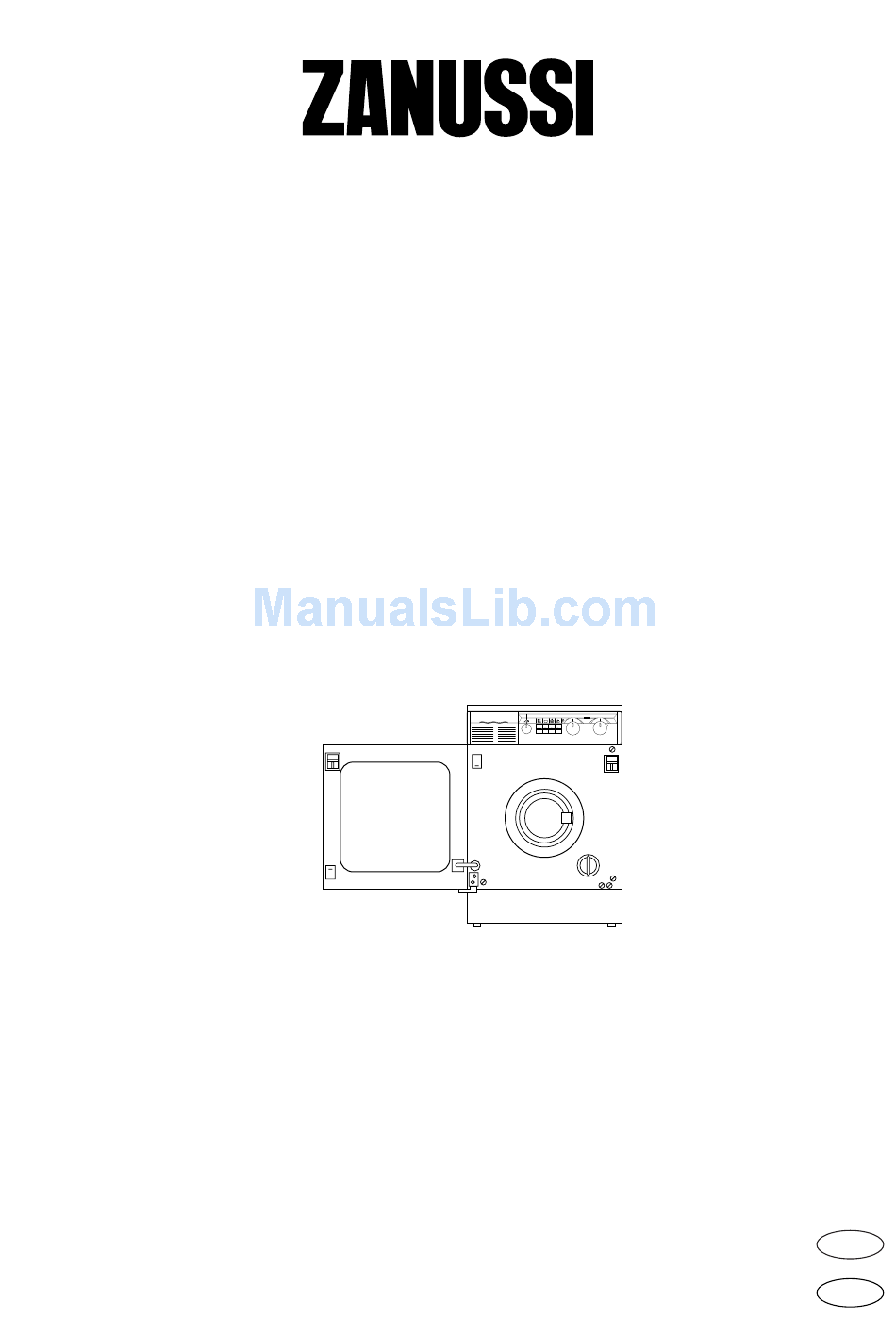

Page 1: Washing Machine
LAVADORA WASHING MACHINE FLD 1006 - FLD 1206 MANUAL DE USO USER MANUAL 132995240... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings 25-26 Maintenance Bodywork Disposal Detergent dispenser drawer Drain filter Tips for environmental protection 26 Water inlet filter Emergency emptying out Technical specifications Frost precautions Installation Something not working? 42-43 Unpacking Positioning Water inlet Water drainage Electrical connection Door reversal Your new washing machine Description of the appliance Detergent dispenser drawer... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Keep all detergents in a safe place out of children’s reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum. -
Page 6: Technical Specifications
6 kg Synthetics 3 kg Delicates 3 kg Woollens 2 kg SPIN SPEED 1000 rpm max. (FLD 1006) 1200 rpm max. (FLD 1206) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE... -
Page 7: Installation
Installation Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 V, ways: single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Door Reversal
Door reversal The opening direction of the outer door on this washing machine can be reversed. To carry out this operation, proceed as follows: 1) Disengage the end of the opening stop (1) from the door and turn it through 90° to remove it from its seat (Fig. -
Page 10: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The temperature selector dial will allow you to choose the most suitable temperature for your laundry. •... -
Page 11: Use
Control panel 1 Programme chart 5 Anti-crease button It will help you to choose the most suitable washing Using this option the last rinse water is not emptied programme for your laundry. out, so as to avoid creasing if the laundry is not removed from the machine immediately after washing. -
Page 12: Washing Hints
Washing hints Delicate fabrics and woollens: drum no more than one third full. Washing a maximum load makes the most efficient Sorting the laundry use of water and energy. Follow the wash code symbols on each garment For heavily soiled laundry, reduce the load size. label and the manufacturer’s washing instructions. -
Page 13: Detergents And Additives
Ball point pen and glue: moisten with acetone (*), Pour it into the compartment marked lay the garment on a soft cloth and dab the stain. Follow the product manufacturer’s recommendations Lipstick: moisten with acetone as above, then treat on quantities to use and do not exceed the «MAX» stains with methylated spirits. -
Page 14: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 15: Operating Sequence
Operating sequence 4. Select the temperature Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with Turn the dial to the required setting. the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine. -
Page 16: At The End Of The Programme
7. At the end of the programme The machine stops automatically. If you have selected a programme which ends with the water of the last rinse left in the tub (option drain the water before opening the door. Select programme “N” (drain) or depress again button Wait one or two minutes before opening the door to give the electric locking mechanism time to release Depress the ON/OFF button... -
Page 17: Washing Programmes
Programme table Washing programmes for cotton and linen Load: 6 kg Consumptions* Additional Programme Temp. Fabrics functions Energy Water Duration min. 60°-90° WHITES WITH PREWASH, for example work garments, sheets, household linen, underwear, towels 40°-60° COLOUREDS WITH PREWASH, sheets, underwear, towels, shirts,blouses 60°-90°... -
Page 18: Programmes For Synthetics, Mixed Fabrics, Delicates
Programme table Washing programmes for synthetics, mixed fabrics, delicates and wool Load: 3 kg, wool 2 kg Addi- Consumptions* tional Programme Temp. Fabrics func- Energy Water Duration tions min. 30°-60° SYNTHETICS WITH PREWASH, for 1.25 example underwear, coloured items, shirts, blouses SYNTHETICS WITHOUT PRE- 30°-60°... -
Page 19: Maintenance
Maintenance 1. Bodywork 3. Drain filter Clean the outside of the machine with warm water The drain filter collects threads and small objects and a neutral, non-abrasive household detergent. inadvertently left in the laundry. Check regularly that Rinse with clean water and dry with a soft cloth. the filter is clean. -
Page 20: Emergency Emptying Out
5. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 21: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... -
Page 22: Machine Does Not Spin
Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in machine does not spin: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
