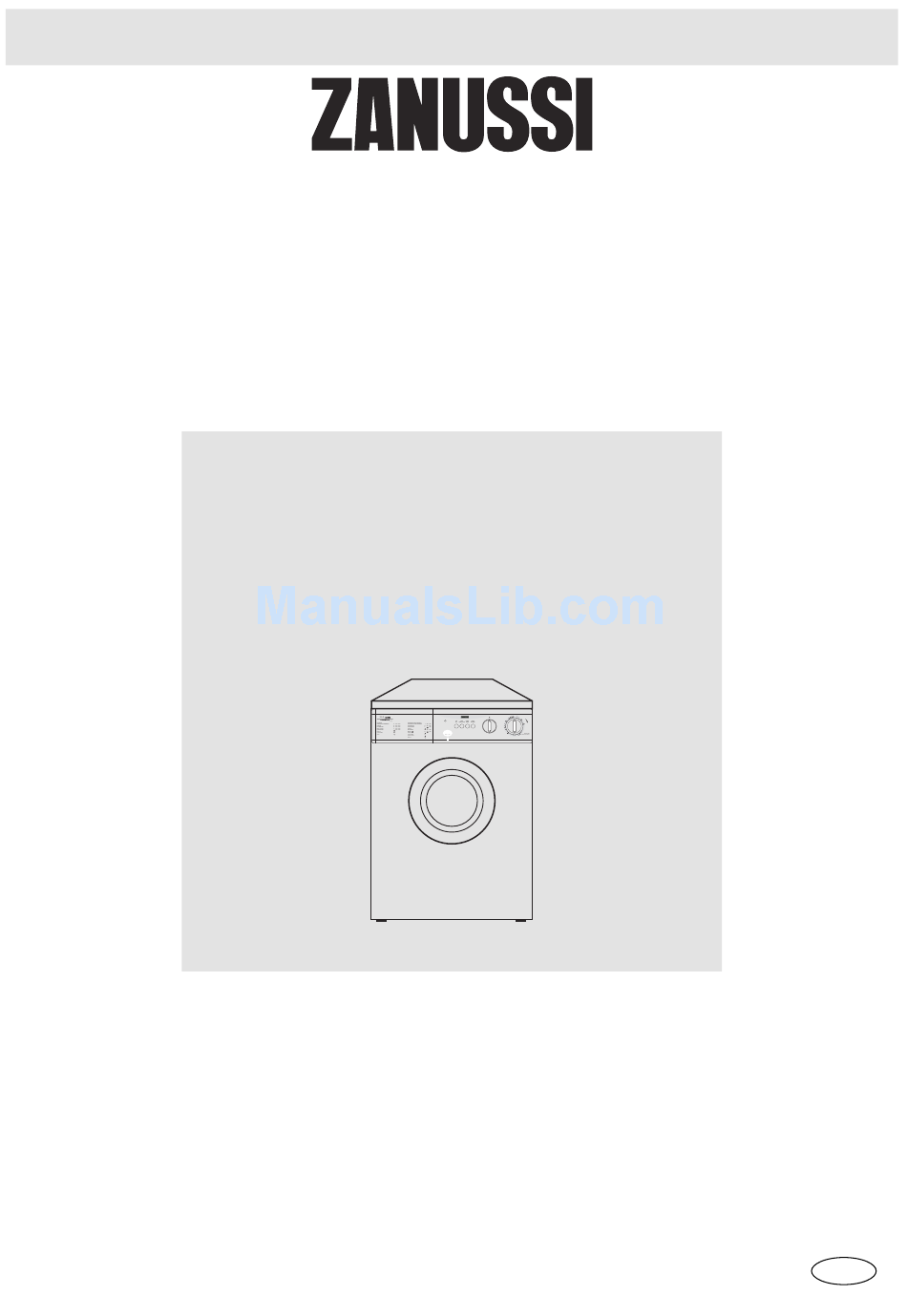

Page 1: Washing Machine
WASHING MACHINE ZWO 290 USER MANUAL 132990420... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 5 Drain pump Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Unpacking Something not working? 20-21 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance Detergent dispenser drawer... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Children are often not aware of how dangerous electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. • The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 32 cm MAXIMUM LOAD Cotton 3,5 kg Synthetics Delicates Woollens/Handwash 0.7 kg SPIN SPEED 950 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 1750 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum... -
Page 7: Installation
Installation Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection This machine is designed to operate on a 220-230 V, The end of the drain hose can be positioned in three single-phase, 50 Hz supply. ways: Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel 1 Detergent dispenser drawer and 5 SUPER RINSE Button programme chart By depressing this button on cotton programmes the machine will perform the rinses with more water. This option is recommended for people who are 2 Mains-On light allergic to detergents and in areas where the water is very soft. -
Page 11: Washing Hints
Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 12: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 13: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 14: Operating Sequence
Operating sequence Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with 3. Measure out the additive the machine empty, in order to remove any manufacturing residue from the drum and tub. If required, pour fabric softener into the compartment Pour half a measure of detergent into the main wash marked Softeners... -
Page 15: Select The Temperature
6. Select the temperature 8. At the end of the programme Turn the selector dial to the required temperature The machine stops automatically, the operating pilot setting. light goes out. If you have selected a gentle programme which ends with the water of the last rinse left in the tub, drain the water before opening the door selecting programme It is normal to have to wait for about 2 minutes... -
Page 16: Programme Table
Programme table Energetic programmes for cotton and linen Maximum load: 3.5 kg Programme/ Possible Selected Temp. Cycle description Type of laundry options Position Prewash Whites Wash at 30°-95°C SPIN REDUCTION 30°-95° with prewash 4 rinses SUPER RINSE (heavy soiled) Long spin Whites Wash at 60°-95°C SPIN REDUCTION... -
Page 17: Washing Programmes For Synthetics/Mixed Fabrics/Delicates
Programme table Gentle programmes for synthetics, mixed fibres, delicates and wool Maximum load: 1 kg, woollens: 0.7 kg Programme/ Possible Progr. Temp. Cycle description Type of laundry options Prewash Synthetics Wash at 30°-60°C 30°-60° with prewash 3 rinses (heavy soiled) Stop with water in the tub Wash at 30°-60°C Synthetics... -
Page 18: Maintenance
Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 19: Frost Precautions
7. Frost precautions If the machine is installed in a place where the temperature could drop below 0°C, proceed as follows: If the machine is exposed to temperatures • below 0°C, certain precautions should be taken. Turn off the water tap. •... -
Page 20: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... - Page 21 Problem Possible cause • The machine is fitted with a commutator motor • The machine makes an unusual which makes an unusual noise compared with noise: other traditional machines. This motor enables a softer start to the spin and controls the increase in spin speed better.
- Page 22 MADE IN ITALY...
