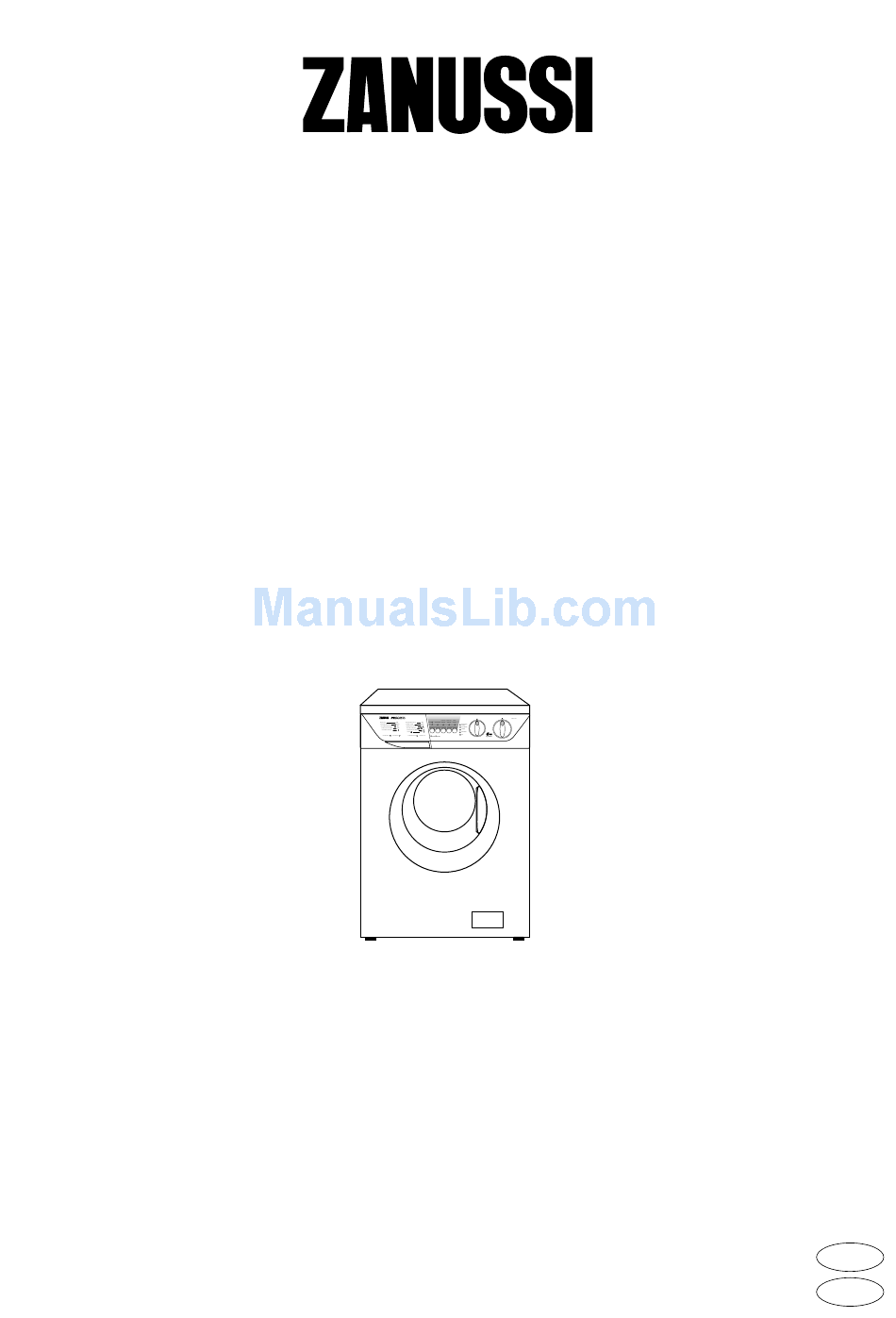

WASHING MACHINE LAVADORA ZWG 385-ZWG 385A-ZWG 3105 ZWG 3105A-ZWG 3125 INSTRUCTION BOOKLET MANUAL DE USO 132986630... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance Bodywork Disposal Door seal Detergent dispenser drawer Tips for environmental protection Drain pump 21-22 Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Unpacking Something not working? 23-24 Positioning and levelling Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • All internal packing must be removed before using • Leave the porthole door slightly ajar when the the appliance. -
Page 5: Disposal
Child safety • Children are often not aware of how dangerous To disable this device and restore the possibility of electrical appliances can be. When the machine is closing the door, rotate the button anti-clockwise working, children should be carefully supervised until the groove is vertical. -
Page 6: Technical Specifications
2.5 kg Delicates 2.5 kg Woollens and Hand wash SPIN SPEED 800 rpm max. (ZWG 385 - 385A ) 1000 rpm max. (ZWG 3105 - 3105A) 1100 rpm max. (ZWG 3125) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED... -
Page 7: Installation
Installation Unpacking 6. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
The inlet hose must not be lengthened. If it is too The drain hose must not be kinked. short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use. Important! Before connecting up the machine to new pipework or to pipework that has not been used for some time,... -
Page 9: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The programme selector dial combines the function of programme and temperature selection, making it easier to set the programme. •... -
Page 10: Use
Control panel 1 Detergent dispenser drawer and Important! programme chart The selected delay can be changed only after selecting the washing programme again. The door will be locked throughout the delay time. Programme option buttons If you need to open the door, you must first set the washing machine to PAUSE by pressing the Depending on the programme, different functions START/PAUSE button. - Page 11 The maximum speeds are: machine. The corresponding pilot light stops flashing Models ZWG 385 - ZWG 385A and remains lit. To interrupt a programme which is running, depress for cotton, synthetics, hand wash and wool: 800 the START/PAUSE button: the corresponding pilot r.p.m.;...
-
Page 12: Programme Selector Dial
The light DESCARGA (drain) or CENTRIF. (spin) comes on during the drain or the spin programme. At the end of the programme the light FIN (end) illuminates again. 9 Programme selector dial The selector is divided into 5 sections: • Cotton •... -
Page 13: Washing Hints
Washing hints Sorting the laundry Washing a maximum load makes the most efficient use of water and energy. Follow the wash code symbols on each garment For heavily soiled laundry, reduce the load size. label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. -
Page 14: Detergents And Additives
Lipstick: moisten with acetone as above, then treat Quantity of detergent to be used stains with methylated spirits. Remove any residual The type and quantity of detergent will depend on marks from white fabrics with bleach. the type of fabric, load size, degree of soiling and Red wine: soak in water and detergent, rinse and hardness of the water used. -
Page 15: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 16: Operating Sequence
Turn the spin speed selector dial to reduce the spin speed or select the option. ZWG 385 - 385A ZWG 3105 - 3105A 2. Measure out the detergent Pull out the dispenser drawer until it stops. Measure out the amount of detergent recommended by the... - Page 17 6. Select the required option(s) 9. Altering a programme or an option The light corresponding to the depressed button You can alter the programme before it starts. illuminates. When the programme has started, you can only reset it by turning the programme selector dial to O and then you can select the new programme.
- Page 18 13. At the end of the programme The machine stops automatically, the START/PAUSE pilot light goes off and phase light FIN (END) illuminates. If the ANTI-ARRUGAS (RINSE HOLD) option has been selected, the phase light FIN is on and the door is blocked to indicate that the water must be emptied out before opening the door.
-
Page 19: Programme Tables
Programme table WASHING PROGRAMMES Consumptions* Temperature/ Additional Fabrics Type of laundry Wash load Energy Water Duration Programme functions min. PREWASH 90° Sheets, household QUICK/STAINS White COTTON linen, towels, SPIN REDUCTION 5 kg cotton tablecloths (ALGODON) PREWASH Hand towels, sheets, White STAINS underwear, COTTON... -
Page 20: Programme Tables
Water draining Drain programmes with (rinse hold) option ZWG 385 - 385A Short spin at max. speed Separate spin SPIN REDUCTION 5 kg for all fabrics Spin ZWG 3105 - 3105A - 3125** Long spin at max. -
Page 21: Maintenance
Maintenance Bodywork Detergent can also accumulate inside the drawer Clean the outside of the machine with soap and recess: clean it with an old toothbrush. Refit the water only. Rinse with clean water and dry with a soft drawer after cleaning. cloth. -
Page 22: Water Inlet Filter
• Remove any objects from the pump impeller by Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 23: Something Not Working
Something not working? Problems which you can resolve yourself, before calling the After Sales Service. During machine operation it is possible that the END (FIN) light starts to flash: 4 flashes= the door has not been closed 2 flashes= the machine does not empty 1 flash= the machine does not fill. - Page 24 Problem Possible cause • The machine, which is the result of modern • Water is not visible in the machine: technology, runs in a very economical way with low water consumption. Performance is nevertheless excellent. • The electronic unbalance detection device has cut •...
