• Please read these instructions carefully before using this product and keep this manual for future reference.
•
•
YFM284C413ZA
High-Power Cassette Player/Receiver with Changer Control
CQ-R223WA
Operating Instructions
REMOTE
DOLBY B NR
TUNE
TRACK
SCAN
REPEAT
RANDOM
3
TPS
REP
4
5
B¥S
6
MONO
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-R223WA
Summary of Contents for Panasonic CQ-R223WA
-
Page 1: Operating Instructions

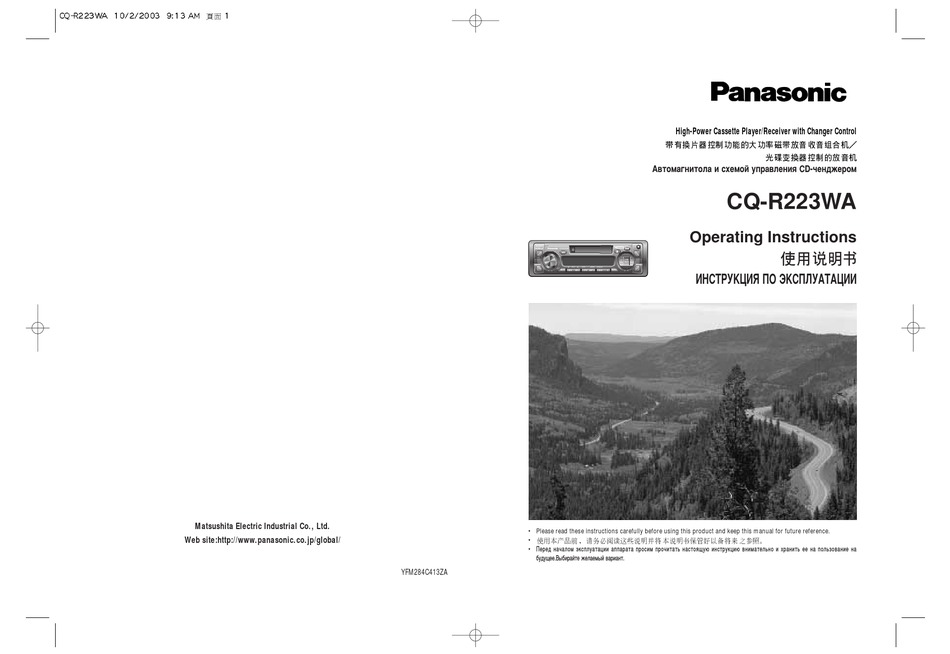

High-Power Cassette Player/Receiver with Changer Control CQ-R223WA Operating Instructions REMOTE DOLBY B NR CQ-R223WA TUNE TRACK DISC SCAN REPEAT RANDOM MUTE B¥S MONO Matsushita Electric Industrial Co., Ltd. • Please read these instructions carefully before using this product and keep this manual for future reference. -
Page 2: Table Of Contents
Troubleshooting ......27 Specifications......29 CQ-R223WA CQ-R223WA... - Page 3 CQ-R223WA CQ-R223WA...
- Page 4 M T L T P S R E P B¥S M O N O [DISP] [PWR] [TUNE] [] [MUTE] [LOUD] [TRACK6 7] [MONO] [1 MTL] [{DISC] [2 NR] [DISC}] [5 B•S] [RAMDOM] [3 TPS] [SCAN] [4 REP] [REPEAT] CQ-R223WA CQ-R223WA...
-
Page 5: Precautions
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family. - Page 6 Panasonic ......................1 ..............1 ...................1 YEFX9992013A Panasonic CQ-R223WA CQ-R223WA...
-
Page 7: General
Adjustable range: Fader center 1 to 15 (by 1 dB step) (default) Time Reset Press and hold [DISP] (clock) for more than 2 seconds to activate the time setting mode to reset the time. Then, repeat steps CQ-R223WA CQ-R223WA... -
Page 8: Radio
Press [MONO] again to cancel. Preset Station Calling Caution: To ensure safety, never attempt to preset stations Press the corresponding preset button from [1] while you are driving. to [6] to tune in a preset station. MONO indicator CQ-R223WA CQ-R223WA... -
Page 9: Cassette Tape Player
If you fast forward to the end, play will resume from the Display Change beginning of the other side of the tape. Press [DISP] (display) to switch to the clock display. To turn it off, press [3] (TPS) again. Tape Clock display CQ-R223WA CQ-R223WA... -
Page 10: Cd Changer Control
CD Changer Clock display changer. If normal operation is not restored yet, call the shop where you purchased the unit or the nearest Panasonic Service center to ask for repairs. No disc in the changer (magazine) Insert discs into the changer (magazine). -
Page 11: Remote Control
Mounting Bolt (5 mmø) Remove and dispose of an old battery immediately. Battery Information: • Battery type: Panasonic lithium battery (CR2025) (included) Caution: Do not disconnect the battery terminals of Power Connector • Battery life: Approximately 6 months with normal use (at room temperature) a car with trip or navigational computer since all user settings stored in memory will be lost. - Page 12 After installation reconnect the Pull out “Click” negative (–) battery terminal. Engage Mounting Springs (C) in the both Remove the unit pulling with both hands. Mounting sides of the mounting Hole holes of Mounting Collar q firmly. Mounting Spring CQ-R223WA CQ-R223WA...
-
Page 13: Anti-Theft System
This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable. Preparation: • This unit can be connected to an optional CD changer (CX-DP88). For details consult your nearest Panasonic Service center. Place the Removable Face Plate •... -
Page 14: Speaker Connections
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or Noise. Connect the ground lead properly. connecting the unit directly without a fuse, could cause fire or damage to the unit. If the fuse replacement fails, consult your nearest Panasonic Service center. Sound Setting Trouble Cause/Step Left and right balance, or front and rear balance is off on one side. -
Page 15: Specifications
