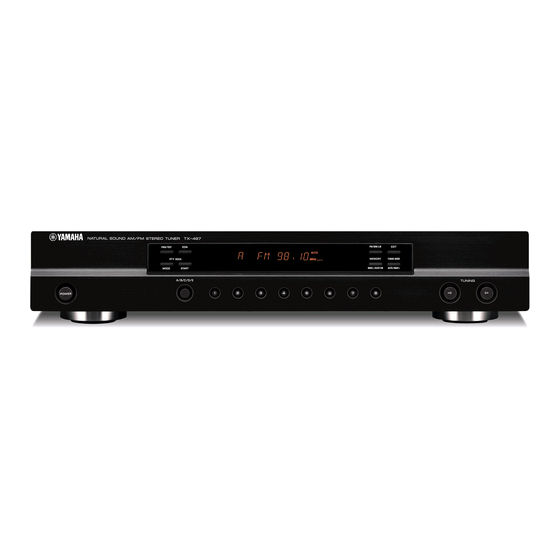

Yamaha TX-497 Owner's Manual
Stereo tuner tx-497
Hide thumbs
Also See for TX-497:
- Owner's manual (23 pages) ,
- Service manual (32 pages) ,
- Owner's manual (58 pages)
Related Manuals for Yamaha TX-497
Summary of Contents for Yamaha TX-497
- Page 1 TX-497 Stereo Tuner Tuner Stéréo OWNER’S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING GEBRUIKSAANWIJZING ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ...
- Page 2 YAMAHA will not be held responsible for any damage proceed as follows: resulting from use of this unit with a voltage other than The wire which is coloured BLUE must be connected specified.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION FEATURES............. 2 SUPPLIED ACCESSORIES ......... 2 CONTROLS AND FUNCTIONS ......3 Front panel ..............3 Front panel display ............ 4 Rear panel ..............5 SETUP CONNECTIONS ............ 6 Connecting the AM and FM antennas ....... 6 Connecting an amplifier ..........9 Controlling this unit with a remote control.... -
Page 4: Features
FEATURES FEATURES ◆ 40-station random access preset tuning ◆ Automatic preset tuning ◆ Multi-status station memory ◆ Direct PLL synthesizer tuning ◆ Preset station shifting capability (preset editing) ◆ Multi-functions for Radio Data System broadcast reception (U.K. and Europe models only) •... -
Page 5: Controls And Functions
Receives signals from a remote control provided with a Selects a frequency. – Press l to tune into a lower frequency. YAMAHA amplifier or receiver. – Press h to tune into a higher frequency. 3 Front panel display ■ U.K. and Europe models only Shows information about the operational status of this unit (see page 4). -
Page 6: Front Panel Display
CONTROLS AND FUNCTIONS Front panel display AUTO EDIT MEMO PS PTY RT CT EON NEWS INFO AFFAIRS SPORT PTY HOLD ■ U.K. and Europe models only 1 Preset station indicator The indicators numbered from 8 to A are only Displays the group (A to E) and number (1 to 8) of the selected preset station. -
Page 7: Rear Panel
CONTROLS AND FUNCTIONS Rear panel (U.S.A. model) FM ANT AM ANT FREQUENCY STEP FREQUENCY STEP LINE OUT VOLTAGE VOLTAGE SELECTER SELECTER 220V-240V 220V-240V 75Ω UNBAL 110V-120V 110V-120V 100kHz 100kHz 50kHz 50kHz 10kHz 10kHz 9kHz 9kHz ■ Asia and General models only 1 FM ANT terminal See page 6 for connection information. -
Page 8: Connections
CONNECTIONS CONNECTIONS CAUTION Do not connect this unit or other components to the mains power until all connections are complete. Connecting the AM and FM antennas Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength. -
Page 9: Connecting The Am Loop Antenna
If you experience poor reception quality, an Press down the tab to insert the AM loop outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about outdoor antenna lead wires into the AM ANT and GND antennas. - Page 10 CONNECTIONS ■ Connecting a coaxial cable to the ■ Notes on the 75-ohm coaxial and 75-ohm/300-ohm antenna adapter the 300-ohm feeder cables (included for U.K. model only) Consult with your dealer or authorized service center about the best method of selecting and erecting an outdoor FM antenna.
-
Page 11: Connecting An Amplifier
Controlling this unit with a remote control This unit has a remote control sensor. It receives signals Notes from a remote control provided with a YAMAHA • Do not place any large obstacles between the remote control amplifier or AV receiver. -
Page 12: Connecting The Power Supply Cord
CONNECTIONS Connecting the power supply cord Turning on the power ■ Connecting the AC power cord When all connections are complete, turn on the power of this unit. Plug the power cord into an AC wall outlet. ■ Memory back-up POWER The memory back-up circuit prevents the stored data from being lost. -
Page 13: Tuning
TUNING TUNING ■ Manual tuning Automatic and manual tuning If the signal from the station you want to select is weak, tune into it manually. Manually tuning into an FM station There are 2 tuning methods; automatic and manual. will automatically switch the tuner to monaural reception Automatic tuning is effective when station signals are to increase the signal quality. -
Page 14: Presetting Stations
TUNING Notes Presetting stations • Any stored station data existing under a preset number is ■ Automatically presetting FM stations cleared when you store a new station under that preset number. • If the number of received stations does not reach 40 (E8), You can use the automatic preset tuning feature to store automatic preset tuning has automatically stopped after FM stations. - Page 15 TUNING ■ Manually presetting stations You can also store up to 40 stations (8 stations x 5 groups) Press the preset station number button manually. (1 to 8) you want to store while the MEMO indicator is flashing. FREQ/TEXT FM/MW/LW EDIT PTY SEEK MEMORY...
-
Page 16: Selecting Preset Stations
TUNING Selecting preset stations Exchanging preset stations You can tune any desired station simply by selecting the You can exchange the assignment of two preset stations preset station number under which it was stored. with each other. The example below describes the procedure for exchanging preset station “E1”... -
Page 17: Receiving Radio Data System Stations
TUNING Receiving Radio Data System Press EDIT again. stations The stations stored at the two preset assignments are exchanged. Radio Data System is a data transmission system used by EDIT FM stations in many countries. The Radio Data System function is carried out among the network stations. This unit can receive various Radio Data System data such as PI (Program Identification), PS (Program Service name), PTY (Program Type), RT (Radio Text), CT (Clock... -
Page 18: Changing The Radio Data System Mode
TUNING ■ RT (Radio Text) mode Changing the Radio Data System Displays information about the program (such as the title of the song or name of the singer) on the Radio Data mode System station being received using a maximum of 64 alphanumeric characters, including the umlaut symbol. -
Page 19: Pty Seek Function
TUNING PTY SEEK function Press PTY SEEK START to begin searching all preset Radio Data System stations. If you select the desired program type, this unit The selected program type flashes and the PTY automatically searches all preset Radio Data System HOLD indicator lights up in the front panel display stations that are broadcasting a program of the required while searching for stations. -
Page 20: Eon Function
TUNING EON function This function uses the EON data service on the Radio Data System station network. If you select the desired program type (NEWS, INFO, AFFAIRS or SPORT), this unit automatically searches for all preset Radio Data System stations that are scheduled to broadcast the selected type of program and switches from the station currently being received to the new station when the broadcast starts. -
Page 21: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the power of this unit, disconnect the power cord, and contact the nearest authorized YAMAHA dealer or service center. ■ Tuner... - Page 22 TROUBLESHOOTING ■ General Problem Cause Remedy This unit fails to turn The power cord is not connected or the Connect the power cord firmly. on when POWER is plug is not completely inserted. pressed. This unit has been exposed to a strong Disconnect the power cord, plug it back in after 30 seconds, then external electric shock (such as lightning use it normally.
-
Page 23: Specifications
SPECIFICATIONS SPECIFICATIONS AUDIO SECTION AM (MW) SECTION • Tuning Range • Output Level/Impedance (fixed) [U.S.A., Canada and General models] ....530 to 1710 kHz FM (100% mod., 1 kHz) [Other models] ........... 531 to 1611 kHz [U.K. and Europe models] (40 kHz dev.) .... 500 mV/2.2 kΩ [Other models] .............
