Wall aside stand

Advertisement

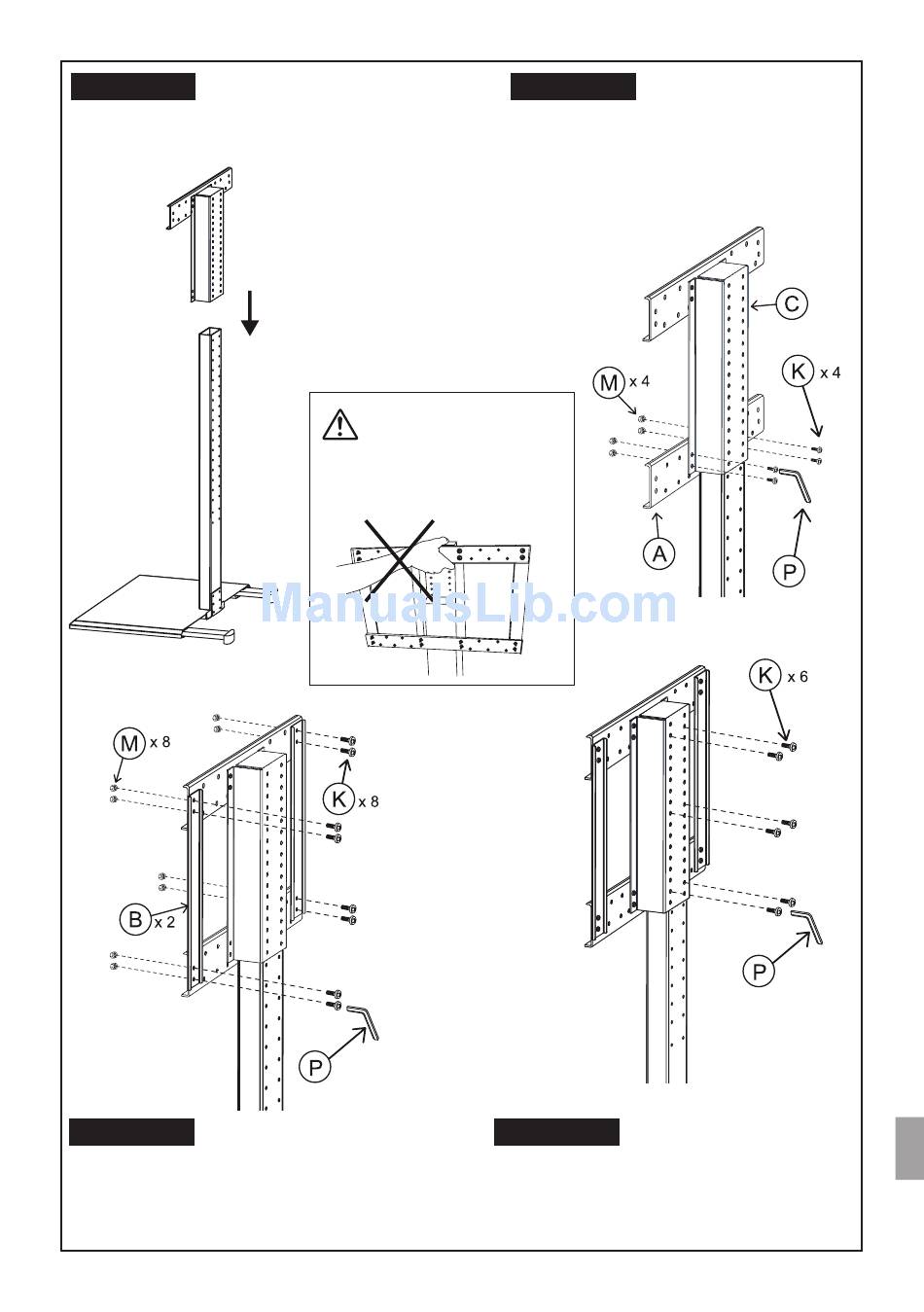

Step 2
Slot in the LCD support frame to the Centre Bar as
shown.
Step 4
Fix the LCD Support Bar (B) using 8 pieces of M6
[16mm] screws (K) and 8 pieces of Flange Nuts
(M) as shown. Use M6 Allen key (P) to fasten the
screws.
Caution:
Do not hold the Support Frame at the
centre while inserting it to the Centre
Bar as this will cause injury.
E-6
Step 3
Fix the LCD Support Bar (A) with LCD U Bracket
(C) using 4 pieces of M6 [16mm] screws (K) and 4
pieces of Flange Nuts (M). Use M6 Allen key (P) to
fasten the screws.
Step 5
Screw the Support Frame to the Centre Bar using 6
pieces of M6 [16mm] screws (K). Fasten them with
M6 Allen key (P).
