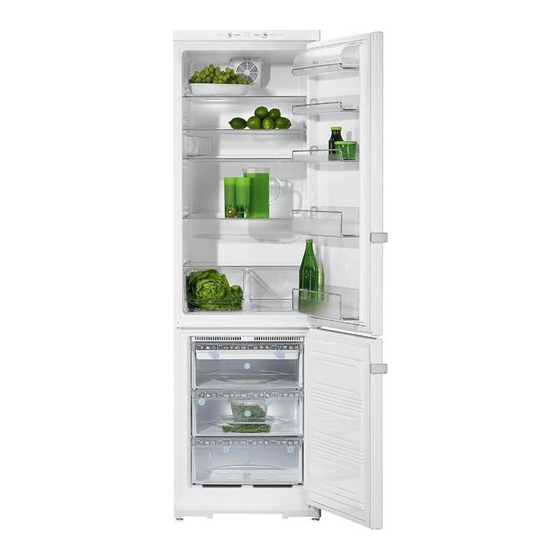

Miele K 8652 SD Operating And Installation Instructions

Refrigerator with dynamic cooling
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating and installation instructions
Refrigerator
with Dynamic cooling
K 8652 SD
K 8852 SD
G
To avoid the risk of accidents or
damage to the appliance, it is
to read these operating instructions
before it is installed or used for the
first time.
M.-Nr. 06 505 650

Advertisement

Table of Contents
loading

Related Manuals for Miele K 8652 SD

Summary of Contents for Miele K 8652 SD

  • Page 1 Operating and installation instructions Refrigerator with Dynamic cooling K 8652 SD K 8852 SD To avoid the risk of accidents or damage to the appliance, it is to read these operating instructions before it is installed or used for the first time.

  • Page 2: Table Of Contents

    ......... 4 .
  • Page 3 ............28 Location .
  • Page 4 a Dynamic cooling button and c Super cool button and indicator light indicator light d On-Off and temperature selector dial b Temperature display...
  • Page 5 a Fan b Butter and cheese compartment c Egg tray d Interior lighting e Shelves f Bottle rack (depending on model) g Door shelf h Condensate channel and drain hole i Fruit and vegetable containers j Divider* * depending on model...
  • Page 6 Please ensure that the appliance presents no danger to children while The transport and protective packing being stored for disposal. has been selected from materials which are environmentally friendly for It should be unplugged or disposal, and can normally be disconnected from the mains electricity recycled.
  • Page 7 This appliance complies with all This appliance contains the coolant relevant legal safety requirements. Isobutane (R600a), a natural gas Improper use can, however, present which is environmentally friendly. a risk of both personal injury and Although it is flammable, it does not material damage.
  • Page 8 Before connecting the appliance to persons could be dangerous and the the mains supply make sure that manufacturer will not be held liable. the rating on the data plate Ensure current is not supplied to the corresponds to the voltage and appliance until after maintenance or connected load of the household repair work has been carried out.

  • Page 9: In The Refrigerator

    Observe the "use by" dates given The appliance is designed for use on food to avoid the risk of food within certain climate ranges poisoning. (ambient temperatures), and should not Storage times will depend on several be used outside this range. The climate factors, including the freshness and range for your appliance is stated on quality of the food as well as the...
  • Page 10 Before disposing of an old appliance, first make the door latch or lock unusable. This way you will prevent children from accidentally locking themselves in and endangering their lives. Disconnect the appliance. Cut off the cable and render any plug unusable.
  • Page 11 In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ambient room Where there is a high ambient room temperature is ideal at approx.

  • Page 12: Temperature Display

    ^ Clean the inside of the appliance and the accessories with warm water and If the appliance is not going to be used a little washing up liquid, and then for a longer period of time, e.g. whilst dry with a soft cloth. on holiday, ^ switch the appliance off, Important:...
  • Page 13 It is very important to set the correct temperature for storing food in the The temperature is set with the appliance. Micro-organisms will cause temperature dial. food which is not stored at the correct ^ Using a coin, turn the dial in a temperature to deteriorate rapidly.

  • Page 14: Super Cool

    The Super cool function can be used to When the Dynamic cooling function is rapidly reduce the temperature in the not switched on, the natural circulation refrigerator to its lowest setting of air in the appliance will cause (depending on the room temperature), different temperature zones in the and is particularly recommended for refrigerator as the cold, heavy air will...
  • Page 15 ^ Press the Dynamic cooling button m. The Dynamic cooling indicator light will go out. The fan automatically switches off when the door is open.

  • Page 16: Coldest Area

    Do not store explosive materials in Due to the natural circulation of the air the appliance or any products in the appliance, there are different containing propellants (e.g. spray temperature zones in the refrigerator. cans). Danger of explosion. Cold, heavy air sinks to the lowest section of the appliance.
  • Page 17 Store food covered or packaged. This will prevent food smells or tastes from affecting other foods, and prevent food from drying out and also any cross-contamination of bacteria. The growth of bacteria, such as salmonella, can be avoided by setting the correct temperature and maintaining good standards of hygiene.
  • Page 18 ^ Push the door shelf upwards, then The shelves can be adjusted according to the height of the food. remove it by pulling it forwards. ^ Raise the shelf at the front, pull it out ^ Replace the door shelf at the half way, and then lift it out.
  • Page 19 Condensate and frost can build up on the back wall of the refrigerator whilst it is in use. These are automatically removed and defrosted by the appliance. The condensate is drained away via a channel and drain hole into an evaporation system at the back of the appliance.
  • Page 20 ^ A microfibre "E-Cloth" is available The data plate located inside the from the Miele UK Spare Parts appliance must not be removed. It Department which is suitable for contains information which is required cleaning surfaces such as stainless in the event of a service call.
  • Page 21 Warning: The handle is susceptible to scratches and abrasions. In addition to the cleaning agents The metal grille at the back of the mentioned previously, you should also appliance (heat exchanger) should be avoid dusted at least once a year. A build-up of dust will increase the energy –...
  • Page 22 ^ Check that the fuse is not defective withdraw the plug from the socket, or and that the mains fuse has not disconnect the mains fuse or remove blown. If it has, contact the Miele Ser- the screw-out fuse in countries where vice Department. this is applicable.
  • Page 23 ^ Clean the condensate channel and drain hole. If you still cannot remedy the fault having followed these suggestions, please contact the Miele Service Department. To prevent unnecessary loss of temperature it is advisable not to open the door while waiting for the...
  • Page 24 Humming noise made by the motor (compressor). This noise can get louder for brief periods when the motor is switching on. A gurgling noise can be heard when coolant is circulating through the pipes. Clicking sounds are made when the thermostat switches the motor on and off.
  • Page 25 In the event of a fault which you cannot correct yourself, or if the appliance is under guarantee, please contact: – your Miele Dealer – the Miele Service Department (see back cover for address). When contacting your Dealer or the Service Department, please quote the model and serial number of your appliance.
  • Page 26 All electrical work should be carried out The fuse cover must be re-fitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person in accordance with local and is lost, the plug must not be used until a national safety regulations.
  • Page 27 Do not place any appliance which gives off heat, such as a toaster or microwave oven, on top of this +10 °C to +32 °C appliance, as this would increase +16 °C to +32 °C +18 °C to +38 °C the appliance's energy +18 °C to +43 °C consumption.
  • Page 28 ^ To align the appliance adjust the feet using the spanner supplied.

  • Page 29: Door Handle

    ^ Remove the cover caps from the The appliance is supplied right-hand hinged. If left-hand door hinging is opposite side, and fit them into the required, follow the instructions below. empty holes. ^ Open the appliance door. First the side section of the handle must be removed: ^ Pull door handle a towards you.
  • Page 30 In the following illustration the door is not shown in the closed position to make it easier to see what happens next. ^ Open the door, tilt it downwards and take it off. Take care not to lose washer a. ^ Using a screwdriver remove covers ^ Turn door support b around, pull ^ Unscrew upper hinge pin c using...
  • Page 31 It is important to check that the side section of the handle d does not Please make sure you follow the instructions below carefully when come into contact with the door seal you refit the handle. The door seal when opening the door, as this will be damaged if the handle is would damage the door seal fitted incorrectly.

  • Page 32: Ventilation Gaps

    The air inlet and outlet must not be covered or blocked in any way. They should be dusted on a regular basis. When built into a kitchen run (max. depth 580 mm) the appliance can be installed directly next to a kitchen furniture housing unit.
  • Page 36 Alteration rights reserved / 4704 M.-Nr. 06 505 650 / 00 en - GB K 8652 SD K 8852 SD...
