Pioneer SP-SB23W Datasheet

Utilizing technology and componentry derived from the Andrew Jones line of award-
winning home theater speakers, Pioneer's Speaker Bar is designed with the primary goal
of producing the most immersive, natural and room-filling sound experience for both

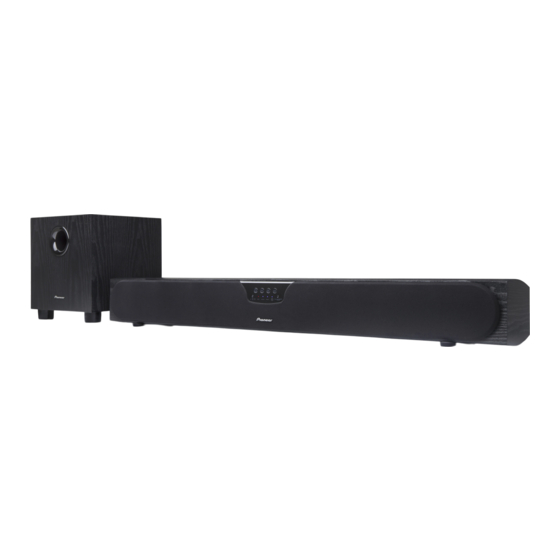

SP-SB23W Speaker Bar
Features
› Composite Wood Curved Cabinet
› 4 – 3" Structured Surface Mid-Woofers
› 2 – 1" Soft Dome Tweeters
› 6 x 28 Watt Amplifiers
› 1 – Optical Input (Cable included)
› 1 – Analog Input
› Dolby Digital Decoding Built-In
®
› Sound Modes (Music, Movies, Dialogue)
› Bluetooth Music Streaming Built-in
®
SP-SB23W 2.4 GHz Wireless Subwoofer
Features
› 6 ½" Woofer
› 50 Watt Amplifier
› Composite Wood Cabinet
› Custom Tuned Port
SP-SB23W
Speaker Bar System
movies and music.

Specifications

› Dimensions........................ 35.98" W x 4.05" H x 4.74" D
› Cabinet.............................................. Composite Wood
› Finish........................................................ Black Ash Vinyl
› Wall Mountable......................................................... Yes
› Rubber Feet.................................................. Quantity: 2
› Frequency Range...................................... 45 Hz-20 kHz
› Driver: Mid-Woofer.............................. 3" x 4 (2 per side)
› Driver: Tweeter.................................... 1" x 2 (1 per side)
› Amplifier............................ 6 x 28 Watts 4 Ohms at 1kHz
› DSP................................................................... 8 Channel
› Inputs....................................... Optical and Analog L/R
Specifications
› Dimensions........................ 9.01" W x 10.01" H x 9.01" D
› Cabinet.............................................. Composite Wood
› Finish........................................................ Black Ash Vinyl
› Power...................... 50 Watts (50 Hz 1% THD @ 6 Ohms)
› Connection......................................... Wireless (2.4 GHz)
