Page 2: Table Of Contents
Table of contents Introduction Installation Operation Suggestion on food storage Care and maintenance...
Page 3: Introduction
Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Page 4: Identification Of Parts
Introduction DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors but leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children or infirm persons without supervision.
Page 5: Installation
Installation Where to Install 1. Place your appliance where it is easy to use. 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. Air must circulate properly around your appliance to ensure efficient operation. If your appliance is placed in a recessed area in the wall, allow at least a 12 Inches (30 cm) or greater clearance above the appliance and 2 inches (5 cm) or more...
Page 6: Door Removal
Lower hinge • Move the refrigerator compartment door passing through the access door and lay it down, but be careful not to damage the feed water pipe tube. 1) Loosen the hinge cover screws and remove the cover.
Page 7: Door Replacement
Installation Pass the refrigerator laterally through the access door as shown in the right figure. TEMP TEMP Door replacement Mount them in the reverse sequence of removal after they pass through the access door. Feed water pipe installation Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5 kgf/cm ) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).
Page 8: Height Adjustment
Level the door by inserting flat ( - type) driver into the groove of the right height adjusting screw and rotate it clockwise ( ). The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw. If the doors do not close correctly, performance may be affected.
Page 9: Operation
Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions...
Page 10 Operation You can adjust temperature of and freezer room and refrigerator room. Middle(-19 C) Middle strong(-22 C) Strong(-23 C) Weak(-15 C) Middle weak(-17 Middle(3 C) Middle strong(2 C) Strong(0 C) Weak(6 C) Middle weak(4 Whenever pressing button, setting is repeated in the order of (Middle)
Page 11 After the machine is powered again, crushed ice will be automatically selected. The unit is newly installed It takes about 12 hours for a newly installed refrigerator to make ice in the freezer compartment. Please select this function for prompt freezer.
Page 12 A lot of time are need for service engineer to detect the failed part if turning it off. Water is cooled while stored in the water tank in the refrigerator compartment, and then sent to the dispenser.
Page 13 The first ice and water may include particles or odor from the feed water pipe or feed water box. This is necessary in case that the refrigerator has not been used for a long time. Keep children away from the dispenser.
Page 14 You can access the refreshment center without opening refrigerator door and thus saving electricity. Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents. Never use the refreshment center door as a chopping board and take care not to damage it with sharp tools.
Page 15 Operation Shelf (Applicable to some models only) You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Wine holder (Applicable to some models only) Bottles can be stored laterally with this wine corner.
Page 16: Humidity Control In The Vegetable Compartment
H I G Convert into a vegetable or meat compartment (Applicable to some models only) The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.
Page 17 Operation Miracle Zone Temperature Transition Corner (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc. Temperature Change at Miracle Zone (Applicable to some models only) You can select optimum temperature range depending on types of foods stored.
Page 18: Suggestion On Food Storage
Suggestion on food storage Location of foods (Refer to identification of parts) Store wine. Store small foods such as bread, snacks, etc.. Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc.. Store small packed frozen food. Temperature is likely to increase as door opens.
Page 19: Storing Foods
Do not store food which goes bad easily at low temperatures, such as bananas, and melons. Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.
Page 20: Care And Maintenance
( ) and rotating ( ) the lamp cover. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center. Separate the lamp by pulling it out, and then remove the lamp.
Page 21 To remove the lamp cover, press the protrusion under the lamp cover to the front and then pull the lamp cover out. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.
Page 22: General Information
0 Suggestion on food storage General information During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
Page 23: Trouble Shooting
This is normal. Larger, more efficient one you owned. units run longer in these conditions. It is normal for the refrigerator to work Room or outside weather is hot. longer under these conditions. It takes some hours for the refrigerator Refrigerator has recently been to cool down completely.
Page 24 Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. Refrigerator control is set too warm. Set the freezer or refrigerator control to a Refrigerator control has some effect on colder setting until the freezer or freezer temperature.
Page 25 ON cycle. the refrigerator continues to run. Floor is uneven or weak. Be sure floor is level and solid and can Refrigerator rocks on the floor when it is adequately support refrigerator. moved slightly. Remove items.
Page 26 Clean interior with sponge,warm water Interior needs to be cleaned. and baking soda. Cover food completely. Food with strong odor is in the refrigerator. Some containers and wrapping materials Use a different container or brand of produce odors. wrapping materials.
Page 27 Open household water line valve. See problem “Ice maker is not making any ice.” Refrigerator or freezer door is not closed. Be sure both doors are closed. Water has been in the tank for too long. Draw and discard 7 glasses of water to freshen the supply.
Page 36 Ön beállíthatja a mélyhıtŒ és a hıtŒszekrény hŒmérsékletét. (-19 (-22 (-23 (-15 (-17 Választható funkciók: víz vagy jég. DISPENSER DISPENSER...
Page 37 • Azonnali gyorsfagyasztáshoz válassza a „Expressz mélyhıtés" funkciót. EXPRESS FRZ EXPRESS FRZ Ezzel a gombbal lezárhatjuk egy másik gomb mıködését. LOCK LOCK...
Page 38 ’Nyitott ajtó’ figyelmeztetés Diagnosztika funkció (hibakeresés) • DISPENSER DISPENSER DISPENSER...
Page 39 FILTER RESET HOLD 3 SEC. <1. típus> <2. típus>...
Page 41 [1. típus] [2. típus] • •...
Page 42 HUMIDITY CONTROL HIGH L O W H I G HUMIDITY CONTROL HIGH...
Page 43 ° ° °...
Page 49 A hıtŒszekrény mıködése...
Page 50 Túl alacsony hŒmérséklet Túl magas hŒmérséklet...
Page 51 Rendellenes zajok Víz / pára / jég a hıtŒgép belsejében Víz / pára / jég a hıtŒgép külsŒ falán...
Page 52 Kellemetlen szagok a hıtŒszekrényben Ajtók/fiókok nyitása/ zárása Adagoló...
Page 56 •...
Page 58 • • •...
Page 59 TEMP TEMP...
Page 61 BUTT BUTTON WATER CRUSH CRUSH FRZ TEMP TEMP REF REF TEMP TEMP EXPRESS FRZ EXPRESS FRZ DISPENSER DISPENSER FREEZER REFRIGERA REFRIGERATOR OR FILTER LOCK EXPRESS FRZ EXPRESS FRZ DISPENSER DISPENSER FREEZER REFRIGERA REFRIGERATOR OR FILTER LOCK EXPRESS EXPRESS DISPENSER DISPENSER...
Page 62 MÛÏete nastavit teplotu v mrazniãce i v chladniãce. Typ-1 Typ-2 Typ-3 FREEZER TEPL. MRAZ. (-19 (-22 (-23 (-15 (-17 Typ-1 Typ-2 Typ-3 REFRIGERATOR TEPL. CHLAD. MÛÏete zvolit v˘dej vody nebo ledu. <Typ-1,2> <Typ-3> CUBE DISPENSER CUBE DISPENSER WATER WATER CRUSH CRUSH •...
Page 63 • Tato funkce umoÏÀuje rychlé zmrazování. EXPRESS FRZ EXPRESS FRZ EXPRESS FRZ EXPRESS FRZ Toto tlaãítko vypíná ostatní tlaãítka. LOCK LOCK 3 SECS 3 SECS LOCK LOCK...
Page 64 V˘straha otevﬁen˘ch dveﬁí Diagnostika (rozpoznávání závad) • • • • DISPENSER DISPENSER DISPENSER...
Page 65 FILTER RESET HOLD 3 SEC. < > < >...
Page 67 Obsluha Vy‰‰í pﬁedmûty jako napﬁ. kanistry ãi lahve mÛÏete v lednici skladovat tak, Ïe jednodu‰e zatlaãíte pﬁední pÛlku poliãky pod její zadní ãást. AÏ budete chtít poliãku vrátit zpût do pÛvodní polohy, vytáhnûte ji smûrem k sobû. V tomto rohovém drÏáku lze horizontálnû skladovat láhve.
Page 68 Obsluha Ovládání vlhkosti v pﬁihrádce pro zeleninu Pﬁi uchovávání ovoce ãi zeleniny lze vlhkost nastavovat prostﬁednictvím spínaãe pro ovládání vlhkosti. Vysoká vlhkost HUMIDITY CONTROL HIGH L O W Nízká vlhkost HUMIDITY CONTROL H I G HIGH Pﬁepínání pﬁihrádky pro zeleninu/maso (pouze nûkteré...
Page 69 ° ° ° Pﬁi instalaci Zázraãné zóny...
Page 71 •...
Page 72 •...
Page 73 •...
Page 76 ˚ ˚ )
Page 83 ˚...
Page 85 TEMP TEMP...
Page 88 Mo˝na ustawiç temperatur´ komory zamra˝arki i komory ch∏odziarki FREEZER (-19 (-22 (-23 (-17 REFRIGERATOR < > < > Mo˝na wybraç wod´ lub lód CUBE CUBE DISPENSER DISPENSER WATER WATER CRUSH CRUSH Wskazówka : Po zwolnieniu przycisku naley pozostawiç • szklank´ pod wylotem dozownika jeszcze przez 2- 3 sekundy, aby odebraç...
Page 89 Wyst´powanie ha asu podczas wytwarzania lodu jest normalnym zjawiskiem • towarzyszàcym wpadaniu kostek do pojemnika na lód. EXPRESS FRZ LOCK 3 SECS 3 SECS LOCK LOCK LOCK...
Page 90 DISPENSER DISPENSER DISPENSER...
Page 91 FILTER RESET HOLD 3 SEC. < > < >...
Page 94 HUMIDITY CONTROL HIGH L O W H I G HUMIDITY CONTROL HIGH...
Page 95 ° ° °...
Page 102 ˚...
Page 108 •...
Page 110 • • •...
Page 111 TEMP TEMP...
Page 113 BUTT BUTTON ON WATER CRUSH CRUSH FRZ TEMP TEMP REF REF TEMP TEMP EXPRESS FRZ EXPRESS FRZ DISPENSER DISPENSER FREEZER REFRIGERA REFRIGERATOR OR FILTER LOCK EXPRESS FRZ EXPRESS FRZ DISPENSER DISPENSER FREEZER REFRIGERA REFRIGERATOR OR FILTER LOCK EXPRESS EXPRESS DISPENSER...
Page 114 MôÏete nastaviÈ teplotu mraziaceho priestoru a chladiaceho priestoru. MôÏete si vybraÈ vodu alebo ºad. <Typ - 1,2> <Typ - 3> DISPENSER CUBE CUBE DISPENSER WATER WATER CRUSH CRUSH •...
Page 115 • Prosím zvoºte túto funkciu na ur˘chlené mrazenie. EXPRESS FRZ EXPRESS FRZ EXPRESS FRZ EXPRESS FRZ Toto tlaãidlo zastaví v˘kon funkcie iného tlaãidla. LOCK 3 SECS 3 SECS LOCK LOCK LOCK...
Page 116 Upozornenie na otvorené dvere Funkcia diagnostiky (zistenie poruchy) • • • • DISPENSER DISPENSER DISPENSER...
Page 117 FILTER RESET HOLD 3 SEC. < > < >...
Page 119 • •...
Page 120 HUMIDITY CONTROL HIGH L O W HUMIDITY CONTROL H I G HIGH •...
Page 121 ° ° °...
Page 123 •...
Page 124 •...
Page 125 •...
Page 128 ˚ ˚...

This manual is also suitable for:

Sxs refrigerator

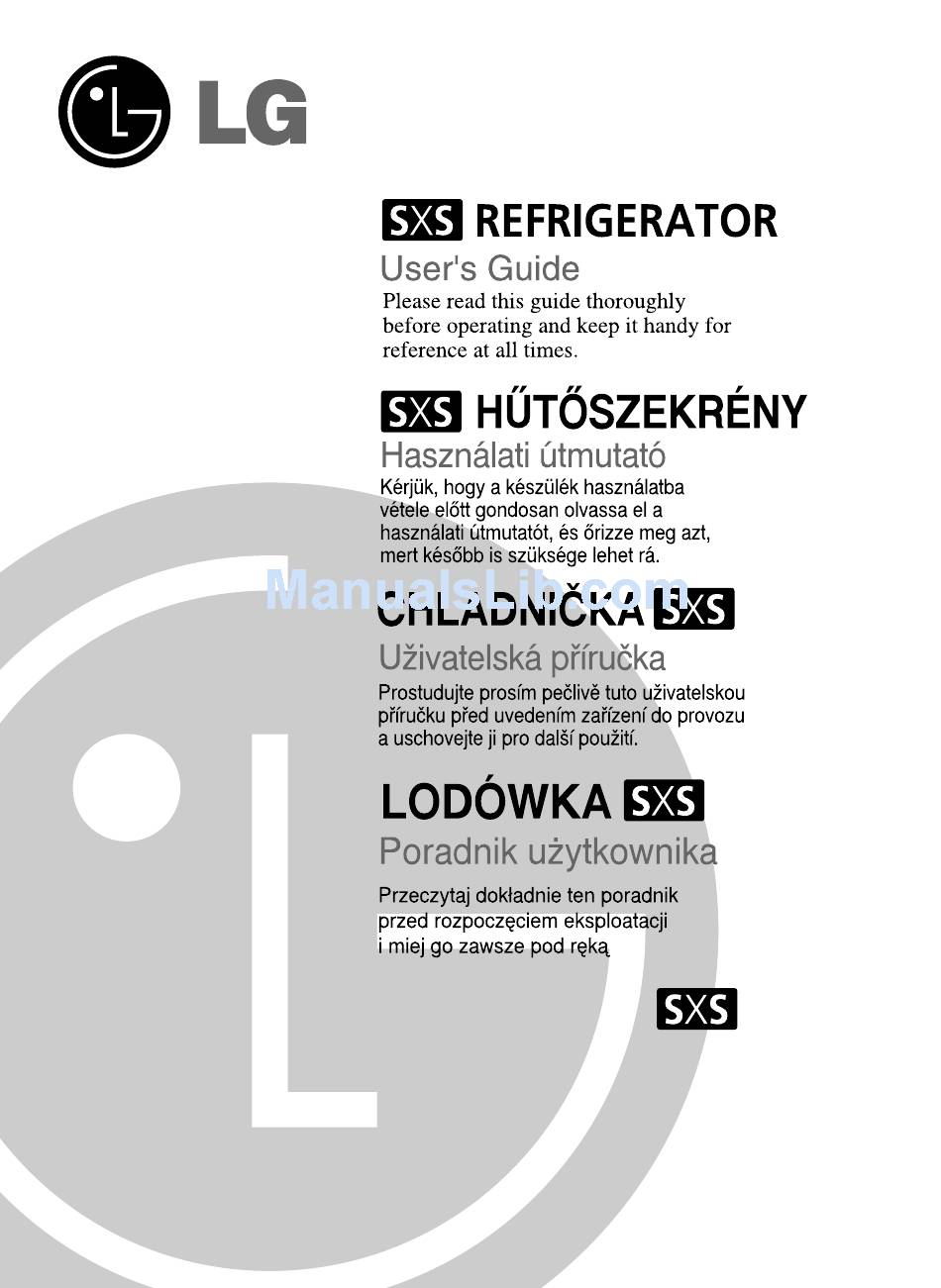

LG Refrigerator User Manual
