HP AlphaServer ES45 Overview

HP AlphaServer ES45 Overview

Hp alphaserver es45
Hide thumbs Also See for AlphaServer ES45:

Advertisement

Quick Links

Download this manual
QuickSpecs

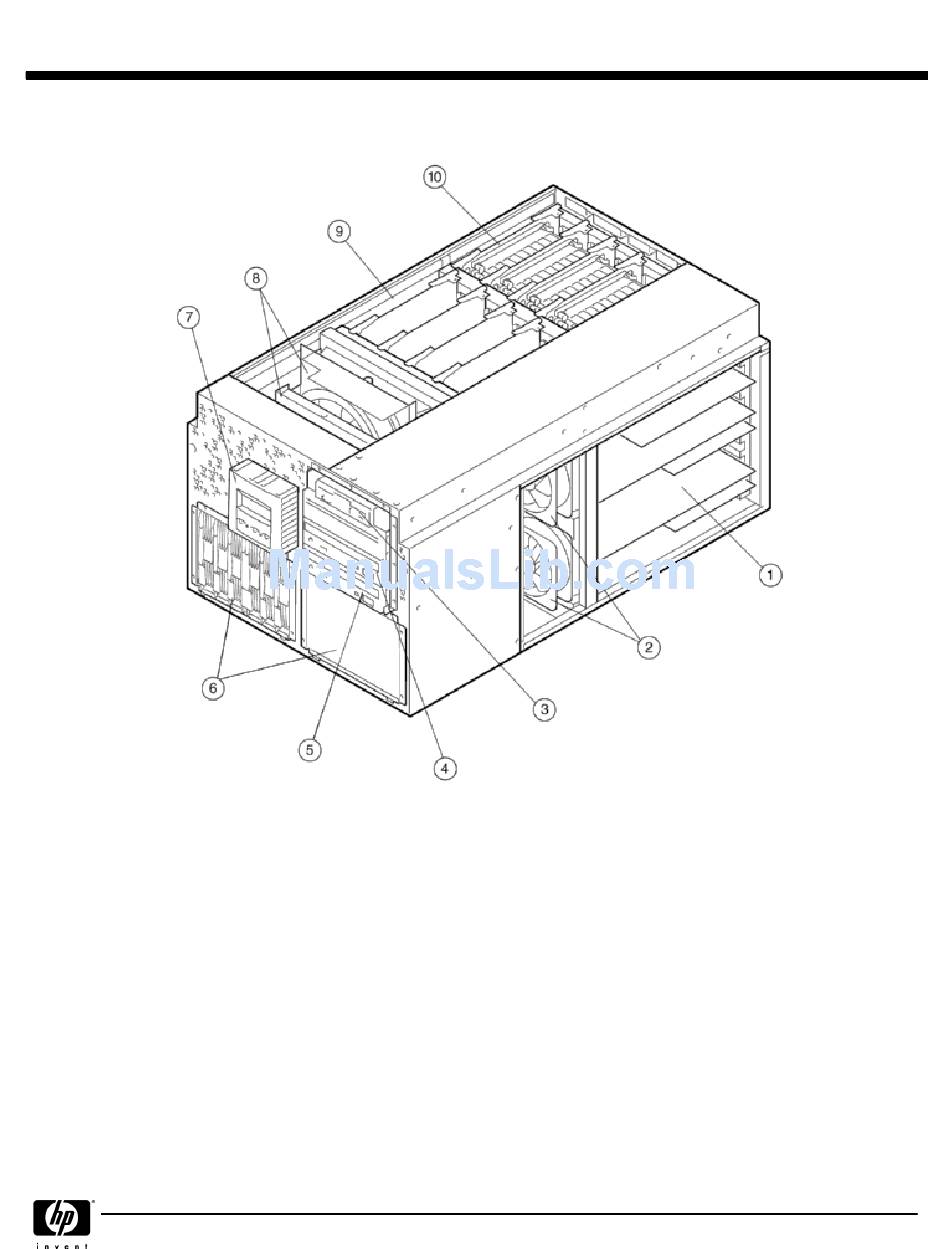

Overview
1. PCI Cards
2. Fans
3. Diskette drive
4. Removable media bays
5. DVD-ROM drive
DA - 10994
North America — Version 59 — May 7, 2007
6. 6-Bay disk drive storage cages
7. Control Panel
8. Fans
9. CPUs
10. Memory
HP AlphaServer ES45
HP AlphaServer ES45
HP AlphaServer ES45
HP AlphaServer ES45
Page 1

Advertisement

loading

Related Manuals for HP AlphaServer ES45

Summary of Contents for HP AlphaServer ES45

  • Page 1 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Overview 1. PCI Cards 6. 6-Bay disk drive storage cages 2. Fans 7. Control Panel 3. Diskette drive 8. Fans 4. Removable media bays 9. CPUs 5. DVD-ROM drive 10.
  • Page 2 Integral remote system management console Customer documentation Tru64UNIX or OpenVMS Factory Installed Software Protected by HP Services, including one-year hardware warranty, on-site with 5 x 9 next business day response. DA - 10994 North America — Version 59 — May 7, 2007...

  • Page 3: Standard Features

    8-MB (1 GHz) or 16-MB (1.25 GHz) L2 Dual Data Rate Backup Cache Upgradability Upgradability Upgradability Upgradability Supports additional processors and upgrades of memory and hard drives Minimum 1 GB – AlphaServer ES45 Memory Memory Memory Memory Maximum 16 GB (16 DIMM slots) - Model 1B...
  • Page 4 Model 1B (1.25 GHz) Model 2B (1.25 GHz) Model 3B (1.25 GHz) When configuring an AlphaServer ES45 system, refer to the following chart that summarizes the features of each model as well as the differences between each model. AlphaServer ES45 Model...
  • Page 5 Universal PCI modules are designated as 3.3/5 V and can be installed into 33-MHz or 66-MHz slots. AlphaServer ES45 systems provide four I/O hoses, each is configured differently as illustrated in the following charts for Models 1B, 2B, and 3B.
  • Page 6 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Standard Features 33 MHz 5.0 V 33 MHz 5.0 V 33 MHz 5.0 V 33 MHz 5.0 V 33 MHz 5.0 V DA - 10994 North America — Version 59 — May 7, 2007...
  • Page 7 Step 1 – Select system AlphaServer ES45 Model 1B, Model 2B, and Model 3B Systems require the mandatory selection of the following items. AlphaServer ES45 Base Systems require the selection of a minimum of 1-GB memory in addition to the following mandatory items.
  • Page 8 AlphaServer ES45 Base Systems (1250 MHz) AlphaServer ES45 Base Systems (1250 MHz) AlphaServer ES45 Base Systems (1250 MHz) NOTE: NOTE: NOTE: NOTE: Selection of a minimum of 1-GB memory is mandatory for AlphaServer ES45 Base systems. ES45 ES45 ES45 ES45 PCI I/O Slots...
  • Page 9 (xx-6xEBA-xx) systems. Memory performance considerations: The AlphaServer ES45 system has two memory buses. When two or more memory options are installed, both buses are utilized, enhancing system performance. The AlphaServer ES45 system has two arrays per bus. Interleaved operations reduce the average latency and increase the memory throughput.
  • Page 10 Pedestal system and Rack kit include three internal IEC/IEC power cords (for internal connection to power distribution unit or power strip) regardless of the number of power supplies ordered ES45 1080 W power supply; order for Models 1B, 2B, and 3B (1-GHz) and Models 3X-H7514-AA 1B, 2B, and 3B (1.25-GHz) systems only;...
  • Page 11 Hardware to mount into a Series 10000 Cabinet is included. When mounting into an M-Series Cabinet or ES45 Pedestal Enclosure, a rail kit (3R-A5281-AA/313877-B21) must be ordered separately. StorageWorks Modular Smart Array SW4414R Single Bus Ultra320 rackmountable 3R-A4075-AA SCSI disk drive, 4-node Storage Enclosure (302969-B21).
  • Page 12 Step 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 Rack Step 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 Rack Rack Kit required for each AlphaServer ES45 system installed in an M-Series Cabinet or Series 10000 Rack Rack Kit supports one system...
  • Page 13 Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) –...
  • Page 14 NOTES NOTES: a. Installation of only one AlphaServer ES45 system in an H9A15 cabinet requires the mandatory selection of a ballast kit. b. H9A1x-ME includes one H7609-EB PDU; H9A1x-MF includes one H7609-DB PDU - Order second PDU. - Single Input - 3X-H7609-DB/EB, 240V...
  • Page 15 Step 7b - Rack 10000 G2 Series - Optional Step 7b - Rack 10000 G2 Series - Optional The HP Rack 10000 Series were designed to the19-inch RETMA standard. The Racks accommodate all HP equipment (ProLiant, Alpha Systems, StorageWorks, UPS, and PDUs) in addition to select third-party equipment.
  • Page 16 Step 7c - KVM (Keyboard, Video, Mouse) Switch - Optional Step 7c - KVM (Keyboard, Video, Mouse) Switch - Optional KVM (Keyboard, Video, The HP Server Console Switch 1 x 8 (8-port) is supported on Alpha Systems using PS/2 Mouse) Switch - Optional Switch - Optional...
  • Page 17 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Maximum # Supported Maximum # Supported Maximum # Supported Maximum # Supported Tru64 Tru64 Tru64 Tru64 Open Open Open Open PCI Slot PCI Slot PCI Slot...
  • Page 18 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Ethernet 10/100 Ethernet 10/100 Ethernet 10/100 Ethernet 10/100 Dual-port 10/100 Ethernet (UTP/RJ45) add-on 3.3/ 3X-DE602-TR daughter card for use with the 3X-DE602-BR only. The combined 3X-DE602-BR and 3X-DE602-TR modules, running at 66MHz, provide four 10/100 (UTP/RJ45s) ports in a single PCI slot option;...
  • Page 19 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Asynchronous Asynchronous PCI (32-bit, 33-MHz) to 4-port Async Communications 3.3/ PBXDA-BA Asynchronous Asynchronous Communications Communications Communications Communications NIC with DB-25 octopus cable NOTE: NOTE: NOTE: NOTE: The Tru64 UNIX driver (UNIX Tar File 4001180K.tar) is located at:...
  • Page 20 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Step 9 - Memory Channel - Optional Step 9 - Memory Channel - Optional Step 9 - Memory Channel - Optional Step 9 - Memory Channel - Optional...
  • Page 21 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Model 1B Model 1B Model 2B Model 2B Model 3B Model 3B Model 1B Model 1B Model 2B Model 2B Model 3B Model 3B 128K I/O...
  • Page 22 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options AlphaServer ES45 Configuration Chart for Storage Adapters AlphaServer ES45 Configuration Chart for Storage Adapters AlphaServer ES45 Configuration Chart for Storage Adapters AlphaServer ES45 Configuration Chart for Storage Adapters Storage Adapters...
  • Page 23 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Fibre Channel Fibre Channel PCI-X 64-bit 144-MHz 2-GB StorageWorks Fibre 3.3/ DS-A5132-AA Fibre Channel Fibre Channel Channel Host Bus Adapter - FCA2684 - single channel NOTE:...
  • Page 24 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options PCI 4-port PCI to Ultra3, 64-bit, 66 MHz, LVD 6 per 6 per 3.3/ 3X-KZPDC-DF backplane RAID controller with 256-MB cache (uses one system, system, PCI slot); requires connection to DS-SL13R-xx shelves or...
  • Page 25 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Step 11a - Tape Devices Step 11a - Tape Devices Step 11a - Tape Devices Step 11a - Tape Devices For detailed tape drive information see http://www.compaq.com/products/storageworks/sitemap.html#tapedrives...
  • Page 26 Step 11c – External Storage Solutions/Controllers Step 11c – External Storage Solutions/Controllers Enterprise Virtual Enterprise Virtual Enterprise Virtual Enterprise Virtual ES45 servers support HP Enterprise Virtual Array 5000 (EVA5000) StorageWorks products running Tru64 Array 5000 Array 5000 Array 5000 Array 5000 UNIX and OpenVMS.
  • Page 27 3R-A5281-AA StorageWorks Disk StorageWorks Disk StorageWorks Disk StorageWorks Disk NOTE: The HP StorageWorks Disk Array Family, specifically the XP128 and XP1024, are supported on Array Family Array Family Array Family Array Family AlphaServer ES45 systems. For product and ordering information, refer to the following Web pages: http://www.hp.com/products1/storage/products/disk_arrays/highend/xp1024/index.html...
  • Page 28 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options RADEON 7500 AGP 2D/3D graphics accelerator; 1.5 V 3X-PBXGG-AB Tru64 UNIX V5.1B with latest patch kit: Tru64 UNIX supports a maximum of 4 graphics heads when...
  • Page 29 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Flat Panel Monitors Flat Panel Monitors Flat Panel Monitors Flat Panel Monitors L2065 20" (20.1" viewable image area) flat panel monitor 0.255mm pixel pitch, 3R-A6701-AA 1600 x 1200 @60 Hz, A + D, TCO 03, Energy Star compliant, 4 video input...
  • Page 30 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Options Keyboards Keyboards Keyboards Keyboards - Optional Select a keyboard and mouse All keyboards listed may not be available in all geographies Select an opal OpenVMS keyboard for use with VT5xx text terminals.
  • Page 31 Documentation Documentation Documentation Documentation Additional AlphaServer ES45 System Information Kit (print and CD), Owners Guide, QA-6E88A-G8 User Interface Guide, and Release Notes Step 15 - Software - Media and documentation required for first system on sit Step 15 - Software - Media and documentation required for first system on sit...
  • Page 32 Step 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS Step 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS Select one of the optional HP Care Pack Service Packages described below that best support the customer's operational requirements for system availability.
  • Page 33 HP Care Pack Services HP Care Pack Services UNIX or OpenVMS operating systems. HP Care Pack Services are designed for customers who require support beyond that provided by the hardware product warranty with coverage for both Principal server systems and SSPs (Subsequent System Packages) - that meet a full range of customer support requirements.
  • Page 34 AlphaServer ES45 systems include one-year parts and labor warranty with 5x9, on-site Next Business Day response. HP Care Pack Services include support for new HP branded hardware options internal to the AlphaServer enclosure plus a monitor (17-inch or less excluding flat panel models).

  • Page 35: Technical Specifications

    QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Technical Specifications Tower Configuration Tower Configuration Tower Configuration Tower Configuration Dimensions Dimensions Dimensions Dimensions 20 x 15.25 x 31 in (50.8 x 38.7 x 78.7 cm) (H x W x D)
  • Page 36 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Technical Specifications Cabinet Configuration Cabinet Configuration Cabinet Configuration Cabinet Configuration H9A10 M-Series H9A10 M-Series H9A10 M-Series H9A10 M-Series H9A15 M-Series H9A15 M-Series H9A15 M-Series H9A15 M-Series Series 10000 Rack...
  • Page 37 QuickSpecs HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 HP AlphaServer ES45 Technical Specifications NOTE: NOTE: Higher altitudes are possible if maximum operating temperature is NOTE: NOTE: reduced (see Temperature); other restrictions may apply such as maximum permissible altitude for hard drives.
  • Page 38 The information contained herein is subject to change without notice. UNIX is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
