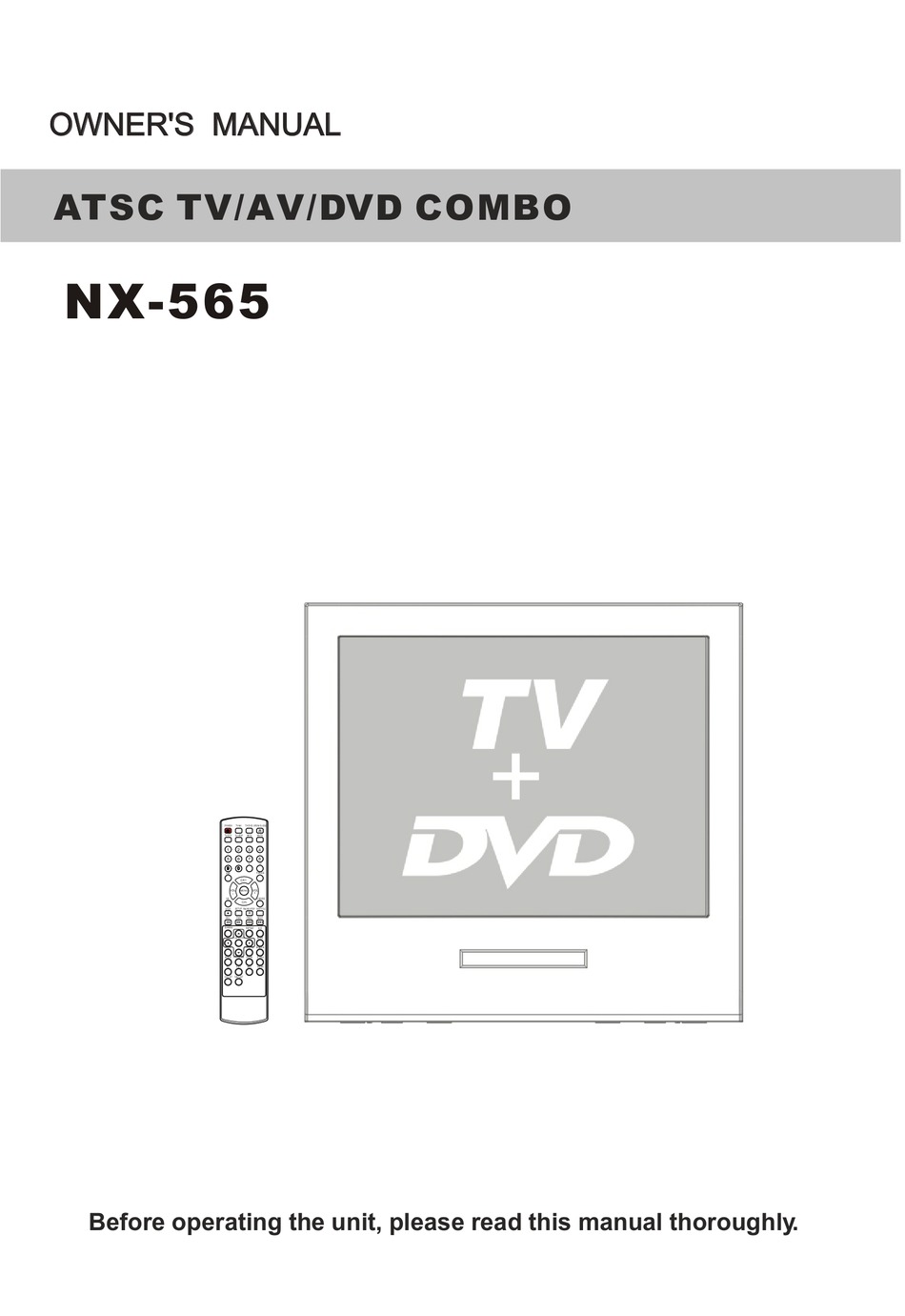

OWNER'S MANUAL
OWNER S MANUAL
'
ATSC TV/AV/DVD COMBO
NX-565
POWER
TV/AV
Q.VIEW
TV/DTV
1
2
5
6
9 9
0 0
SAP
CH+
VOL
MENU
_
OK
STOP
SETUP
REV
FWD .
D.MENU
PLAY/ENTER
ANGLE
AUDIO
PROGRAM
10+
EXIT
CH.LIST
FAV.LIST
Before operating the unit, please read this manual thoroughly.
TV/DVD OPEN/CLOSE
INFO
MUTE
3
4
7
8
-
CC
P.MODE
VOL
+
S.MODE
CH-
PAUSE/STEP
SUBTITLE
PREV
NEXT
A-B
REPEAT
SLOW
TITLE/PBC SEARCH
ZOOM
D.CALL
ARC
GUIDE
Advertisement
Table of Contents
Related Manuals for Haier NX-565
Summary of Contents for Haier NX-565
- Page 1 OWNER S MANUAL OWNER'S MANUAL ATSC TV/AV/DVD COMBO NX-565 POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE MENU S.MODE SETUP PAUSE/STEP SUBTITLE STOP FWD . PREV NEXT D.MENU REPEAT PLAY/ENTER SLOW ANGLE TITLE/PBC SEARCH AUDIO PROGRAM ZOOM D.CALL GUIDE EXIT CH.LIST...
-
Page 2: Table Of Contents
PRECAUTIONS FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. -
Page 3: Important Safety Instructions
CAUTION RISK ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 4 Important safety Instructions 15) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 16) The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the apparatus normal use.
- Page 5 Important safety Instructions 23) REPLACEMENT PARTS When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 24) SAFETY CHECK Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
-
Page 6: Installation
Installation Antenna connection If the picture is not clear or is snowy, it is recommended that an External Aerial is used, this is usually mounted outside. twin-lead cable Antenna adapter (Not supplied) 75 coaxial cable Plug (Not supplied) Note: * It is recommended that a 75 ohm coaxial antenna is used to avoid interference. -
Page 8: Using The Remote Control
Using the Remote Control POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO DTV Audio MENU CH.LIST FAV.LIST SIZE STOP SETUP PAUSE/STEP PREV FWD . D.MENU REPEAT PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM Buttons on the remote control Power Switch Open/close DVD Tray TV / AV Mode Selection TV / DTV Mode Selection MUTE... -
Page 9: The Other Video And Audio Equipment Connections
The other video and audio equipment Connections You can connect the DVD,VCR and stereo system to the output to enjoy a higher quality of picture and sound effect. ANT IN DC IN... -
Page 10: Antenna Connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CABLE), see the Cable TV connections. Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire) RF IN jack 75 ohm... -
Page 11: Cable Tv Connections
This unit has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company. -
Page 12: Connections For Other Equipment
Connections for other equipment Using the audio/video inputs If you connect the TV to a camcorder or Video Game, you can select different modes by pressing TV/AV. Press TV/AV repeatedly to select the desired mode. "AV1", "AV2" ,"COMPONENT","DVD" or TV channel will display on the screen for 4 seconds, will be displayed on the screen when there is no signal input. -
Page 13: Setting The Language And Blue Screen
You can choose from three different languages (English, French and Spanish) for the on-screen displays. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV FWD . NEXT D.MENU REPEAT SLOW... -
Page 14: Channel Menu
This describes the case for searching and memorizing channels for DTV/ATV. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP SUBTITLE STOP FWD . PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO... - Page 15 SETTING SKIP After the programs are preset, you can skip some programs to select your favorite channels only. Press MENU, and then press VOL+/- button to select CHANNEL menu, then press CH- button to POWER TV/AV TV/DVD OPEN/CLOSE enter. TV/DTV Q.VIEW INFO MUTE...
-
Page 16: Channel Selection
You can select the channel by using either CH +/- button or Channel number buttons. How to select the channel in each way is shown below. Using CH +/- button Using CH +/- button on the remote control, change the channel. POWER TV/AV TV/DVD OPEN/CLOSE... -
Page 17: Volume Adjustment
This section describes how to adjust the volume when viewing TV. The MUTE function, which is useful when you have a visitor or a phone call, will be also described. Using VOL +/- button You can adjust the audio volume with VOL +/- button on the remote control. -
Page 18: Screen Information
You can display the currently selected channel number or other information such as the audio mode on the screen for checking. In the analog mode, the currently selected channel number and the audio mode are displayed. Display the channel number and the audio mode. The currently selected channel number and the audio POWER TV/AV... -
Page 19: Video Menu
SETTING VIDEO POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP SUBTITLE STOP This will adjust the intensity of bright parts in the picture but keep PREV FWD . NEXT the dark parts unchanged. -
Page 20: Audio Menu
SETTING AUDIO POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV P.MODE DTV Audio MENU This will adjust the sound output level. SLEEP CH.LIST FAV.LIST SIZE GUIDE STOP SETUP PAUSE/STEP SUBTITLE This will adjust the sound output balance. FWD . PREV NEXT D.MENU REPEAT... -
Page 21: Manual Time Setting
You must set the time manually for ON/OFF Timer. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP SUBTITLE STOP FWD . PREV NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM... -
Page 22: Setting The On/Off Timer
This feature allows you to have the TV automatically turn on/off at a predetermined time. If you program the ON/OFF TIMER, the TV will turn on/off at the time your predetermined time. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio MENU... -
Page 23: Function Menu
SETTING THE NTSC CAPTION This allows you to configure the way you choose to view the captioning. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE Then use VOL+/- button to CC2,CC3,CC4,TEXT1, TEXT2,TEXT3,TEXT4. P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP... - Page 24 An age limitation can be set to forbid children to see and hear violent scenes or pictures for adults, etc. The TV Corresponds to "TV RATING" and "MOVIE RATING". to use theparental control function, you must register a password. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV...
- Page 25 Press MENU. The main menu screen will appear. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio Enter the password (4 digits) using the number MENU buttons(0-9). SLEEP CH.LIST FAV.LIST SIZE GUIDE Press CH+ to select STOP SETUP PAUSE/STEP SUBTITLE CHANGE PASSWORD,...
- Page 26 POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio MENU SLEEP CH.LIST FAV.LIST SIZE GUIDE SETUP PAUSE/STEP SUBTITLE STOP PREV FWD . NEXT D.MENU REPEAT SLOW PLAY/ENTER TITLE/PBC SEARCH ANGLE AUDIO PROGRAM ZOOM D.CALL To use the TV after Parent Control activated.
- Page 27 TO SET THE MPAA RATING POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE Rating for Movies previously shown in theaters: Movie Rating P.MODE DTV Audio MENU If you set PG-13 : G and PG movies SLEEP will be available , PG-13, R, NC-17 and X will be blocked.
-
Page 28: Closed Caption
WHAT IS CLOSED CAPTIONING? This television has the capability to decode and display closed captioned television programs. Closed captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW... -
Page 29: Dtv Caption Menu
SETTING CLOSED CAPTION MODE In DTV mode Press MENU. The main menu screen will appear. Press VOL+/- button to select FUNCTION then press CH- button to enter the submenu. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO MUTE TV/DTV Press CH+/- button to select DTV CAPTION. - Page 30 SETTING THE DTV CAPTION STYLE The DTV caption style function lets you change the caption size and font style. Press MENU. The main menu screen will appear. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE Press VOL+/- button to select FUNCTION then press CH- button to enter the submenu.
- Page 31 SETTING THE DTV CAPTION STYLE(continue) Select this option to select the font style of caption display according to your own preference. Press the VOL+/- button to select Style1, Style2, Style3, POWER TV/AV TV/DVD OPEN/CLOSE Style4,Style5, Style6, Style7, Style8. Q.VIEW INFO TV/DTV MUTE Select this option to select the size of caption display according...
- Page 32 SETTING THE DAYLIGHT SAVING Daylight saving time is automatically set by specially broadcasted signals. This menu item allows you to disable the automatic setting of daylight saving time. This is useful if you live in an area or state where daylight saving is not applied, but you receive channels from other areas where daylight saving signals are broadcasted.
-
Page 33: Other Function
GUIDE - This activates some, but not all, electronic program guides (EPG data) when it is used and transmitted by some DTV station providers. It is only supported when receiving DTV channels. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE P.MODE DTV Audio 1. -
Page 34: Picture Mode
QUICKLY VIEW This function enables quick swap to the last watched program. Suppose the channel number you used just now is 8 and the channel number you are using is 18 (as shown in the figure). If you want to return to the last watched POWER TV/AV TV/DVD OPEN/CLOSE... -
Page 35: Dvd Features
DVD Features Basic Playback Preparations Preparations Press the DVD/TV button on the remote control or the TV to enter the DVD status. Basic playback Basic playback 1. Press OPEN/CLOSE to open the disc tray, place a disc in the disc tray. There are two different disc sizes. - Page 36 Features(Continued) Advanced Playback Advanced Playback Advanced Playback IMPORTANT NOTE: All described functions are for DVD discs. If you play other format discs, the operation and on screen display will be different. SUBTITLE CAPTION Press "SUBTITLE ", the screen will display "SUBTI- TLE 01/XX XXXXX", "01"...
-
Page 37: Special Playback Functions
Special Playback Functions JPEG DISC PLAYBACK When a disc containing standard JPEG picture files is inserted into the player, a navigation menu will be displayed automatically. Use the UP and DOWN cursor buttons to select a file then press PLAY/ENTER. The slide show will commence. Press PREVIOUS or NEXT to move between pictures. -
Page 38: Dvd System Setup
DVD System Setup DVD System Setup General Setup Process 1.Press the SETUP button, the SETUP General Setup Page,Preference Page will be displayed in turn. 2.Press CH+/- b item, then press submenu. PLAY/ENTER 3.Press CH+/- bu to select then press PLAY/ENTER to confirm. 4.Press EXIT key or press SETUP repeatedly to exit the set-up menus. - Page 39 DVD System Setup(Continued) DVD System Setup General Setup Page ANGLE MARK: Users can select a particular camera angle when playing a DVD which offers multiple angles. This item allows you to set Angle Mark ON or OFF. On Screen Display (OSD) Language: Users can select on-screen display language.
- Page 40 DVD System Setup(Continued) DVD System Setup SETUP PLAY/ENTER SETUP PLAY/ENTER Preference Page The Preference Page is only available when there is no disc in the player. These settings are applied consistently to all discs which are inserted and played. DEFAULT: Resets all settings (except password and parental lock status) for this DVD player...
-
Page 41: Playable Discs
Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labelled as above. The performance of CD-R or CD-RW disc depends on the way the disc was burned. In a few cases, their performance may not be consistant or may not even operate at all. -
Page 42: Disc Protection And Dvd Characteristics
Disc Protection and DVD Characteristics Compare DVD disc with other discs: Encode Digital/MPEG method Single- Double side -side Capacity single single- layer -layer 8.5G 4.7G Playing Time minutes minutes Disc diameter Horizontal More than 500 line resolution Picture proportion Subtitle Language 48KHz, 96KHz/ Sound quality... -
Page 43: Troubleshooting Guide
Troubleshooting guide To assist in location possible faults use help guide below BREAKDOWN PHENOMENON PICTURE Picture with snow Double or Triple Image Disturb Normal No Picture No color Scramble Normal or Weak Volume Color Spot Note: 1.If the fault can not be corrected using the above guide consult with your local authorized service center. -
Page 44: Specifications
Specifications The specifications offered you here are for reference only. With product improvement there may be some differences between the description and the final product. Colour system NTSC /ATSC Picture tube 14"colour picture tube (33.5 cm viewable) Sound output power 2X2W 10% THD Power requirements AC 120V 60Hz... - Page 45 0090500177I...
