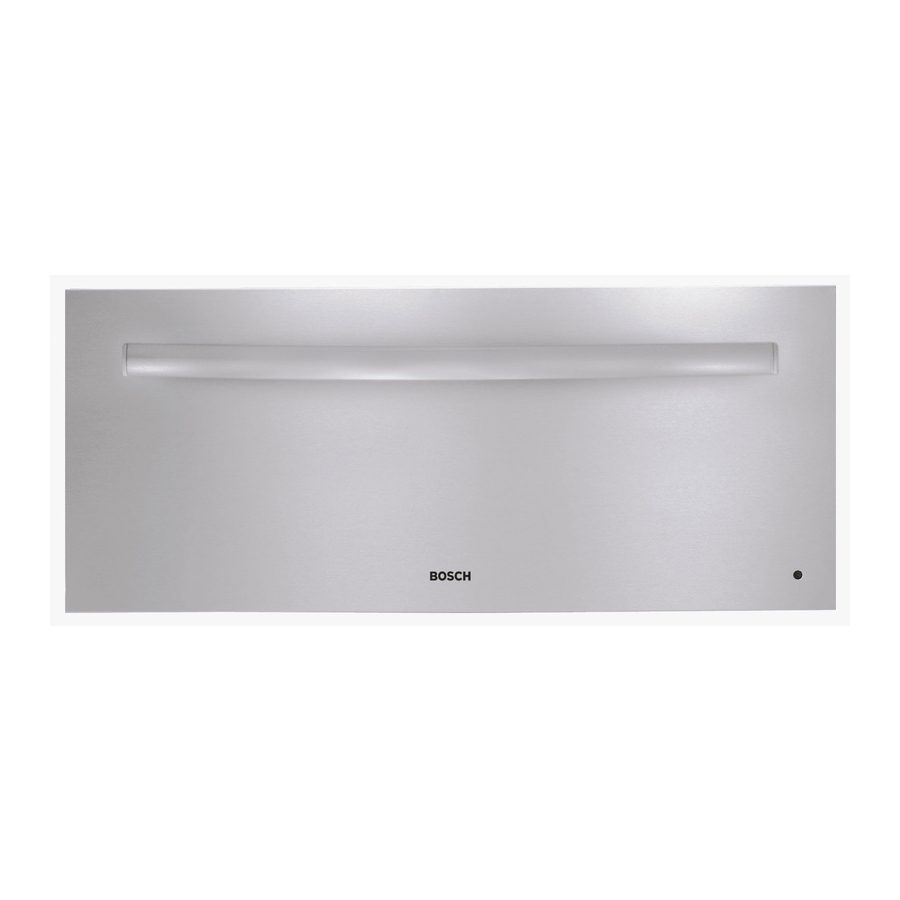

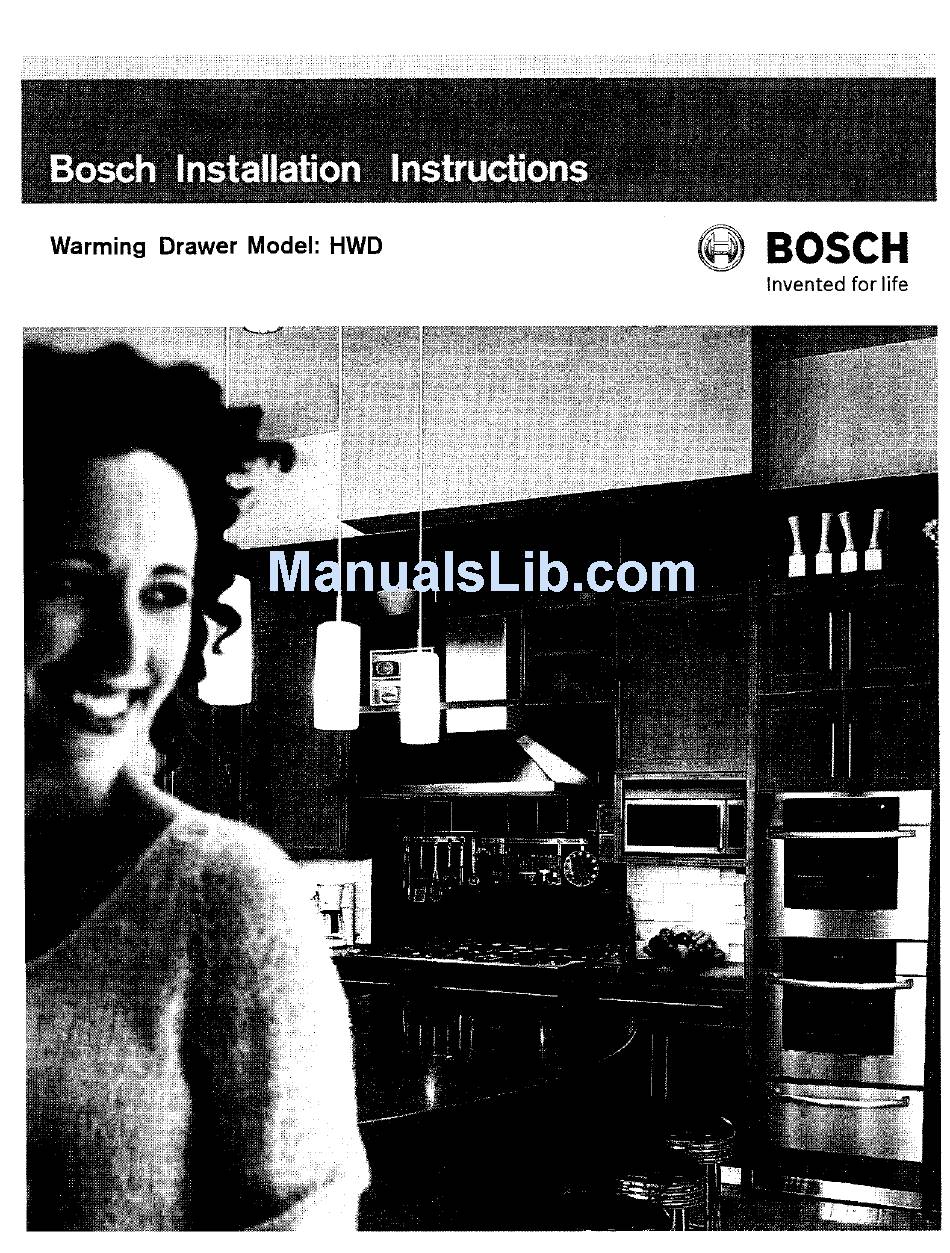

- Page 1 BOSCH Warming Drawer Model: HWD Invented for life...
- Page 2 Important Safety Instructions ........Installation ..........Before You Begin ............Tools and Parts Needed ............Parts Included ..............Warming Drawer Dimensions ............ Cabinet Cutout Dimensions ............Custom Drawer Front Dimensions (Optional) ........Power Requirements and Grounding ..........Installation Procedure ........... Prepare Cabinet Cutout ............
-
Page 3: Important Safety Instructions
Important Safety Instructions Save these Instructions Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 7 lat- est edition (or the Canadian Electric Code) and local electrical code requirements. Important: Local codes vary. - Page 4 Figure1 Warming Drawer O verall D imensions Table 1 Warming Drawer O verall Dimensions i i/!iiii! !!! !!!!!!! !!!i 11 1/4" (285.8mm) 11 1/4" (285.8 mm) 26 5/8" (676.3 mm) 29 1/4" (743 mm) 22 1/4" (565.2 mm) 22 1/4" (565.2 mm) 20 1/2"...
- Page 5 Table 2: Cabinet Cutout Dimensions 22 1/4" (565.2 mm) 22 1/4" (565.2 mm) 7/16" (11.1 mm) 1 3/4" (44.5 mm) Custom Drawer Front Dimensions Build custom drawer front to the dimensions specified in Table 3 on page 3 and- (Optional) Table 4 on page 3 below.
- Page 6 3) Install Warming Drawer Slide warming drawer assembly into cutout and over support brackets (if applica- ble) until it is flush with cabinet. Secure through four screw holes in front frame (Drill pilot holes in cabinet first if necessary.). 4) Attach Custom Drawer Front CAUTION: Use care when handling glass panel to avoid breaking.
- Page 7 YOUR LIFE,OURINSPIRATION, 5551 McFadden Avenue, Huntington Beach_ CA 92649 • 800-944-2904 ° www.boschapptiances.com 9000060282 (ECO# 5V03FT) • 10006 Rev A • 04/05 © BSH Home Appliances Corporation 2005 • Litho U.S.A.
