Operating and installation instructions

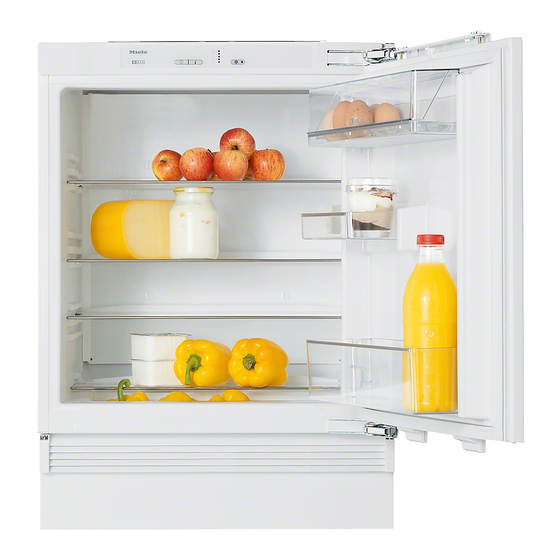

Refrigerator
K 9122 Ui
K 9124 UiF
en - GB
To avoid the risk of accidents
or damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
M.-Nr. 09 265 160

Advertisement

Table of Contents
loading

Related Manuals for Miele K 9122 Ui

Summary of Contents for Miele K 9122 Ui

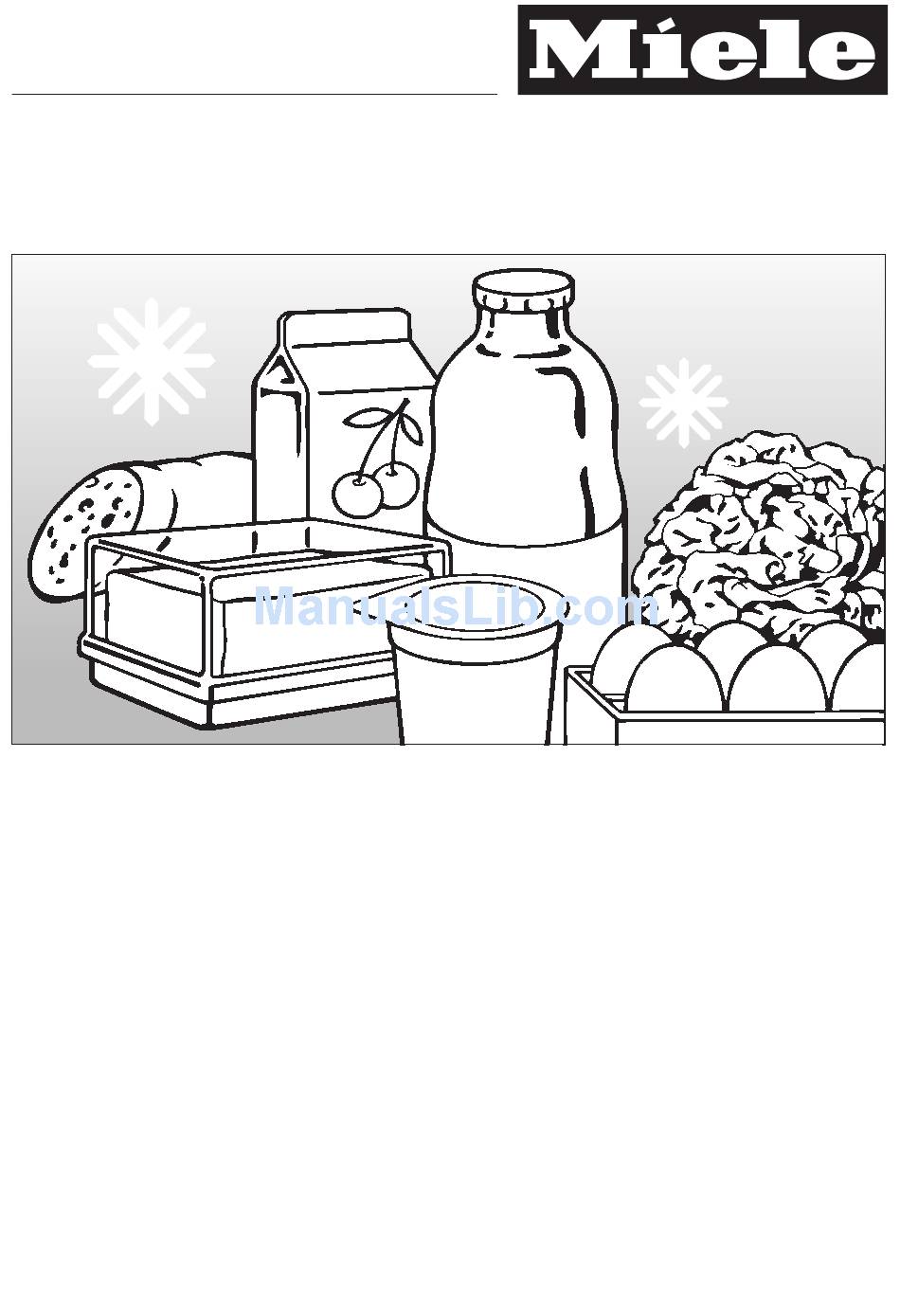

  • Page 1 Operating and installation instructions Refrigerator K 9122 Ui K 9124 UiF en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.

  • Page 2: Table Of Contents

    Contents Guide to the appliance ..........4 Caring for the environment .
  • Page 3 Contents Defrosting ............24 Refrigerator section .

  • Page 4: Guide To The Appliance

    Guide to the appliance a On/Off button c Temperature display b Temperature selector button d Super cool button and indicator light a Freezer compartment* e Butter and cheese compartment b Adjustable shelves f Door shelf c Condensate channel and g Interior lighting drain hole h Bottle shelf d Fruit and vegetable containers*...

  • Page 5: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment.

  • Page 6: Warning And Safety Instructions

    Any other usage is not supported by This appliance complies with all the manufacturer and could be relevant legal safety requirements. dangerous. Miele cannot be held liable Improper use can, however, present for damage resulting from incorrect or a risk of both personal injury and improper use or operation of the damage to property.

  • Page 7: Technical Safety

    Warning and Safety instructions Technical safety The more coolant there is in an appliance, the larger the room it should Before setting up the appliance, be installed in. In the event of a check it for any externally visible leakage, if the appliance is in a small damage.
  • Page 8 (e.g. electric shock). Faulty components must only be Installation, maintenance and replaced by genuine Miele original repairs may only be carried out by a spare parts. The manufacturer can only guarantee the safety of the appliance Miele authorised person in strict...
  • Page 9 Warning and Safety instructions Correct use Do not store cans or bottles containing carbonated drinks or liquids Do not store explosive materials in which could freeze in the freezer. The the appliance or any products cans or bottles could explode. containing propellants (e.g.

  • Page 10: Disposal Of Your Old Appliance

    Warning and Safety instructions Disposal of your old appliance Do not use any oils or grease on the door seals, as these will cause the Before disposing of an old seals to deteriorate and become appliance, first make the door latch or porous with time.

  • Page 11: How To Save Energy

    How to save energy Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not near to a heat source (radiator, Near to a heat source (radiator, oven).

  • Page 12: Switching On And Off

    Switching on and off Before using for the first time Switching off Protective foil The stainless steel trim to the interior shelves and the door shelves has a layer of protective foil to prevent ^ Press the On/Off button until the damage during transportation.

  • Page 13: The Correct Temperature

    The correct temperature . . . in the refrigerator It is very important to set the correct temperature for storing food in the We recommend a temperature of 5 °C appliance. Micro-organisms will cause in the middle of the refrigerator. food which is not stored at the correct temperature to deteriorate rapidly.

  • Page 14: Setting The Temperature

    The correct temperature Setting the temperature The temperature can be set slightly colder within a temperature range The higher or lower the temperature in (e.g. between 5 and 3 °C). the refrigerator, the higher or lower it is ^ Press the temperature selector button in the freezer compartment.

  • Page 15: Super Cool

    Super cool Super cool Switching off Super cool The Super cool function can be used to The Super cool function will switch itself rapidly reduce the temperature in the off automatically after approx. 6 - 12 refrigerator section to its lowest setting hours.

  • Page 16: Using The Refrigerator Efficiently

    Using the refrigerator efficiently Different storage zones Do not store explosive materials in Due to the natural circulation of the air the appliance or any products in the appliance, there are different containing propellants (e.g. spray temperature zones in the refrigerator. cans).

  • Page 17: When Shopping For Food

    Using the refrigerator efficiently – Aubergines/egg plant, cucumber, Fruit and vegetables potatoes, peppers/capiscum, Fruit and vegetables may be stored tomatoes, courgettes/zucchini loose in the vegetable containers. – Some hard cheeses, e.g. Parmesan However, you should bear in mind that aromas and flavours can transfer from one type of food to another (e.g.

  • Page 18: Unpacked Meats And Vegetables

    Using the refrigerator efficiently Unpacked meats and vegetables Meat Unpackaged meat and vegetables Meat should be stored unwrapped. should be stored separately. To avoid (Undo wrappings slightly to leave meat any microbiological loosely covered, and leave containers cross-contamination, these foods may open).

  • Page 19: Adjusting The Interior Fittings

    Adjusting the interior fittings Moving the shelves Adjusting the door shelf/bottle shelf The shelves can be adjusted according to the height of the food. ^ Push the door/bottle shelf upwards, then remove it by pulling it forwards. ^ Raise the shelf, and pull it forwards slightly until the notch at the side is in ^ Replace the door/bottle shelf at the line with the shelf support.

  • Page 20: Freezing And Storing Food (Depending On Model)

    Freezing and storing food (depending on model) Using the freezer compartment Storing frozen food Use the freezer compartment to: When buying frozen food to store in your freezer compartment, check – store frozen food, – that the packaging is not damaged, –...

  • Page 21: Home Freezing

    Freezing and storing food (depending on model) Home freezing – Do not season fresh foods or blanched vegetables before Only freeze fresh food which is in a freezing. Only season cooked food good condition. lightly before freezing, but care should be taken as the taste of some Hints on home freezing spices alters when frozen.

  • Page 22: Before Placing Food In The Freezer Compartment

    Freezing and storing food (depending on model) ^ Make a note of the contents and the – in the refrigerator (the cold given off date of freezing on the packaging. by the frozen food helps to keep other food cold), Before placing food in the freezer –...

  • Page 23: Ice Cubes

    Freezing and storing food (depending on model) Ice cubes ^ Fill the ice tray three quarters full with water and place it on the bottom of the freezer compartment. ^ Once frozen, use a blunt instrument, for example a spoon handle, to remove the ice tray from the freezer.

  • Page 24: Defrosting

    Defrosting Refrigerator section Freezer compartment The refrigerator section defrosts (depending on model) automatically. The freezer compartment does not Condensate and frost can build up on defrost automatically. the back wall of the refrigerator section In normal use, ice and frost will form on whilst it is in use.
  • Page 25 Defrosting To defrost Do not use defrosting sprays, or Carry out the defrosting procedure de-icers as they could contain as quickly as possible if food has substances which could damage not been placed in another freezer. the plastic parts and which may The longer the food is left out at cause a build up of gases and pose room temperature, the faster it...

  • Page 26: Cleaning And Care

    Cleaning and care – hard, abrasive sponges and A range of Miele branded cleaning brushes, e.g. pot scourers, and conditioning products is – melamine eraser blocks, available to order from Miele or www.miele-shop.com. – sharp metal scrapers. Do not let water get into the Before cleaning electronic unit or into the light.

  • Page 27: Ventilation Gaps

    Cleaning and care Ventilation gaps The temperature of the dishwasher ^ The ventilation gaps should be programme must not exceed 55 °C. cleaned on a regular basis with a Contact with some foodstuffs, such brush or vacuum cleaner. A build-up as carrots, tomatoes or ketchup can of dust will increase the energy cause plastic items to discolour.

  • Page 28: Problem Solving Guide

    ^ The refrigerator and freezer Contact a qualified electrician or the compartment doors have been Miele Service department. opened too frequently, or a large amount of fresh food has been . . . the appliance does not get cool...
  • Page 29 Problem solving guide ^ Check to see whether a thick layer of . . . the interior lighting in the ice has built up in the freezer refrigerator is not working. compartment. If it has, then the Has the appliance door been left open freezer compartment will need for too long? The lighting switches itself defrosting.
  • Page 30 ^ Clean the condensate channel and drain hole. If you still cannot remedy the fault having followed these suggestions, please contact the Miele Service Department. To prevent unnecessary loss of temperature, it is advisable not to open the door while waiting for the...

  • Page 31: Noises

    Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes.

  • Page 32: After Sales / Guarantee

    – your Miele Dealer – Miele (see back cover for contact details). When contacting your Dealer or Miele, please quote the model and serial number of your appliance. This information is given on the data plate inside your appliance.

  • Page 33: Information For Dealers

    Information for dealers Demo mode To deactivate Demo mode ^ Press the On/Off button. The appliance can be demonstrated in the showroom or at exhibitions in The appliance is now switched on. "Demo mode". In this mode the controls ^ Press the On/Off button and the and interior lighting are functioning but Temperature button at the same time the compressor remains switched off.

  • Page 34: Electrical Connection

    Electrical connection Electrical connection U.K. Non-rewireable plugs (BS 1363) All electrical work should be carried out The fuse cover must be re-fitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person in strict accordance with current is lost, the plug must not be used until a local and national safety regulations suitable replacement is obtained.

  • Page 35: Installation

    Installation Climate range This appliance must be built in, This appliance is designed for use otherwise it could tip up. within certain climate ranges (ambient temperatures), and should not be used Side-by-side installation outside this range. The climate range of the appliance is stated on the data To avoid a build-up of condensation plate.

  • Page 36: Before Installing The Appliance

    Installation Before installing the appliance ^ Remove any cable clips from the back of the appliance. ^ Remove the red transport fixing a, and use the stopper supplied b to plug the empty hole. ^ Check that all parts at the back of the appliance are unhindered.

  • Page 37: Building-In Dimensions

    Building-in dimensions Plinth height B depends on the building under height: With a niche height of 820 mm the plinth height is 100 - 170 mm. The plinth height will be dictated by the height of the furniture front. With a building under height of 870 mm the plinth height is 150 - 220 mm.

  • Page 38: Adjusting The Door Hinges

    Adjusting the door hinges The door hinges are set ex-works to – If you would like the appliance door enable the door to be opened wide. to be cushioned so that it opens more softly, the spring tension on the However, if the opening angle of the appliance door can be adjusted.

  • Page 39: Changing The Door Hinging

    Changing the door hinging Appliance door Before building the appliance in, you will need to decide on which side the ^ Open the door. door is to be hinged. If left hand door hinging is required, follow the instructions below. To change the door hinging you will need the following tools: –...
  • Page 40 Changing the door hinging ^ Refit the hinges on the diagonally If you have put locking pins into the opposite side of the door b. hinges to stop the door opening too far: Use a power screwdriver to secure the hinges - screws a are self-tapping.

  • Page 41: Freezer Compartment Door

    Changing the door hinging Freezer compartment door (depending on model) ^ Lower the cover on hinge plate a. ^ Unscrew hinge plate b, and remove freezer compartment door c together with the hinge plate. ^ Unscrew door catch d. ^ Screw door catch d into place on the opposite side, having turned it by 180 °.

  • Page 42: Building In The Appliance

    – a hexagon spanner, Maximum weight of Appliance furniture door in kg – an allen key. K 9122 Ui Positioning the appliance K 9124 UiF Before pushing the appliance into the niche loosen the two rear feet by Fitting a door front which is heavier a half turn.
  • Page 43 Building in the appliance ^ Align the appliance so that the front edges of the hinges at the top and bottom are flush with the front edge of the housing unit side wall. This will create a gap all round of 42 mm to the front edges of the housing unit side walls.

  • Page 44: Aligning The Appliance

    Building in the appliance Aligning the appliance ^ Take the bottom shelf out of the appliance door. This will make it easier to build in the appliance. ^ Hold the plinth facing at the side and pull it forwards and off. With a building-under height of 820 mm the adjustable feet must not ^ Use an allen key to unscrew both...

  • Page 45: Securing The Appliance In The Niche

    A fitting kit for securing the appliance at the sides when building it under a granite worktop is available from Miele. If there is a continuous plinth in the kitchen, a ventilation gap will need to be made in the plinth for the appliance:...

  • Page 46: Fitting A Furniture Door

    Building in the appliance Fitting a furniture door Ensure that the plinth facing is replaced correctly. ^ Using a pencil, lightly mark a line down the centre of the inside of the furniture door. ^ Hang the fixing bracket with fitting aids a onto the inside of the furniture door.
  • Page 47 Building in the appliance ^ Whilst counterholding adjusting bolts b with a screwdriver, tighten nuts a at the top of the appliance door. ^ Hang the furniture door onto adjusting bolts a. ^ Loosely attach nuts b on the adjusting bolts. ^ Close the door and check the distance between the door and neighbouring furniture doors.
  • Page 48 Building in the appliance ^ Attach the appliance door and the ^ Place the cover in position. furniture door using screws through fixing brackets a: To make sure the appliance is correctly fitted: – Drill holes in the furniture door (mark the position of the holes first).
