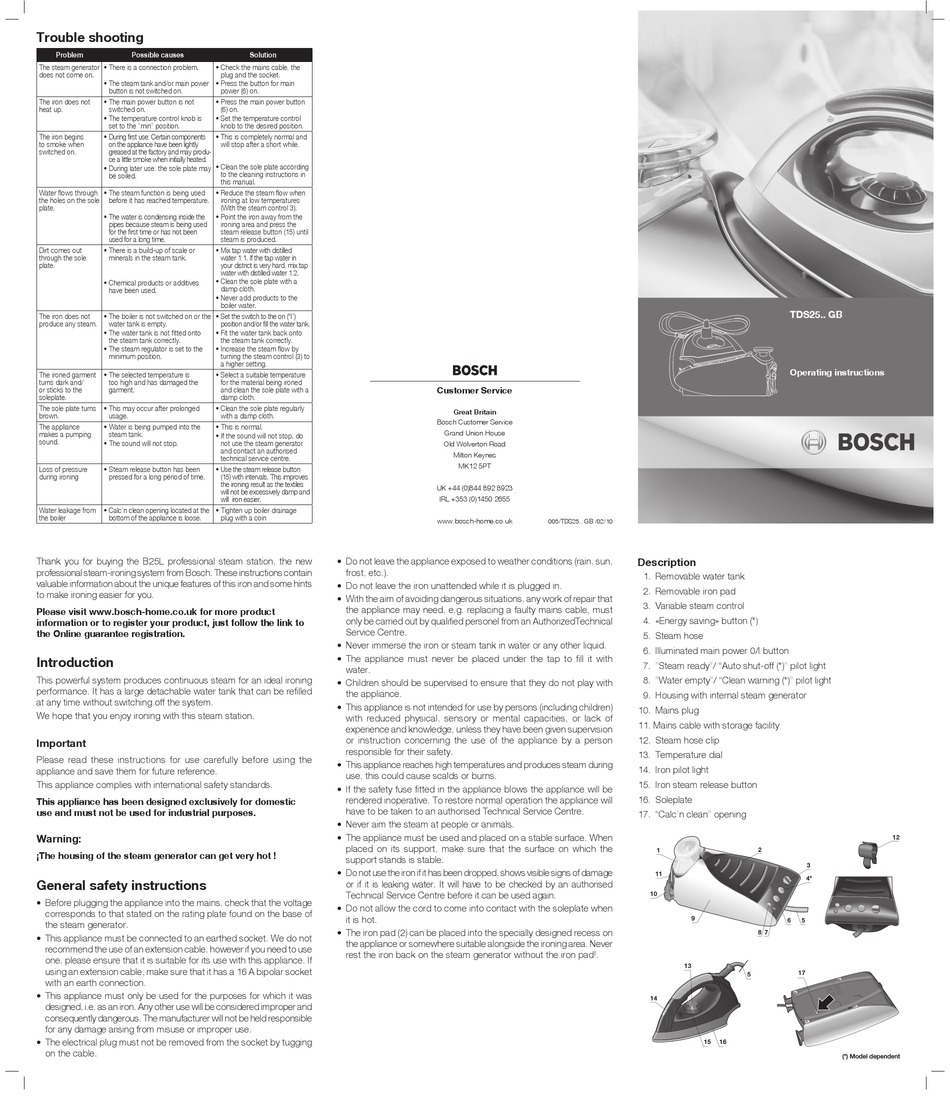

Bosch TDS25.. GB Operating Instructions

Trouble shooting

Problem Possible causes
The steam generator • There is a connection problem. • Check the mains cable, the
does not come on.
• The steam tank and/or main power • Press the button for main
button is not switched on.
The iron does not • The main power button is not • Press the main power button
heat up. switched on.
• The temperature control knob is • Set the temperature control
set to the "min" position.
The iron begins • During first use: Certain components • This is completely normal and
to smoke when on the appliance have been lightly
switched on. greased at the factory and may pro d u-
ce a little smoke when initially heated.
• Clean the sole plate according
• During later use: the sole plate may
be soiled.
Water flows through • The steam function is being used • Reduce the steam flow when
the holes on the sole before it has reached temperature.
plate.
• The water is condensing inside the • Point the iron away from the
pipes because steam is being used
for the first time or has not been
used for a long time.
Dirt comes out • There is a build-up of scale or • Mix tap water with distilled
through the sole minerals in the steam tank.
plate.
• Clean the sole plate with a
• Chemical products or additives
have been used.
• Never add products to the
The iron does not • The boiler is not switched on or the • Set the switch to the on ("I")
produce any steam. water tank is empty.
• The water tank is not fitted onto • Fit the water tank back onto
the steam tank correctly.
• The steam regulator is set to the • Increase the steam flow by
minimum position.
The ironed garment • The selected temperature is • Select a suitable temperature
turns dark and/ too high and has damaged the
or sticks to the garment.
soleplate.
The sole plate turns • This may occur after prolonged • Clean the sole plate regularly
brown. usage.
The appliance • Water is being pumped into the • This is normal.
makes a pumping steam tank.
• If the sound will not stop, do
sound.
• The sound will not stop.
Loss of pressure • Steam release button has been • Use the steam release button
during ironing pressed for a long period of time.
Water leakage from • Calc'n clean opening located at the • Tighten up boiler drainage
the boiler bottom of the appliance is loose.
Thank you for buying the B25L professional steam station, the new
professional steam-ironing system from Bosch. These instructions contain
valuable information about the unique features of this iron and some hints
to make ironing easier for you.
Please visit www.bosch-home.co.uk for more product
information or to register your product, just follow the link to
the Online guarantee registration.
Introduction
This powerful system produces continuous steam for an ideal ironing
performance. It has a large detachable water tank that can be refilled
at any time without switching off the system.
We hope that you enjoy ironing with this steam station.
Important
Please read these instructions for use carefully before using the
appliance and save them for future reference.
This appliance complies with international safety standards.
This appliance has been designed exclusively for domestic
use and must not be used for industrial purposes.
Warning:
¡The housing of the steam generator can get very hot !

General safety instructions

• Before plugging the appliance into the mains, check that the voltage
corresponds to that stated on the rating plate found on the base of
the steam generator.
• This appliance must be connected to an earthed socket. We do not
recommend the use of an extension cable, however if you need to use
one, please ensure that it is suitable for its use with this appliance. If
using an extension cable, make sure that it has a 16 A bipolar socket
with an earth connection.
• This appliance must only be used for the purposes for which it was
designed, i.e. as an iron. Any other use will be considered improper and
consequently dangerous. The manufacturer will not be held responsible
for any damage arising from misuse or improper use.
• The electrical plug must not be removed from the socket by tugging
on the cable.
Solution
plug and the socket.
power (6) on.
(6) on.
knob to the desired position.
will stop after a short while.
to the cleaning instructions in
this manual.
ironing at low temperatures
(With the steam control 3).
ironing area and press the
steam release button (15) until
steam is produced.
water 1:1. If the tap water in
your district is very hard, mix tap
water with distilled water 1:2.
damp cloth.
boiler water.
posi t ion and/or fill the water tank.
the steam tank correctly.
turning the steam control (3) to
a higher setting.
for the material being ironed
and clean the sole plate with a
damp cloth.
with a damp cloth.
not use the steam generator
and contact an authorised
technical service centre.
(15) with intervals. This improves
the ironing result as the textiles
will not be excessively damp and
will iron easier.
plug with a coin
• Do not leave the appliance exposed to weather conditions (rain, sun,
frost, etc.).
• Do not leave the iron unattended while it is plugged in.
• With the aim of avoiding dangerous situations, any work of repair that
the appliance may need, e.g. replacing a faulty mains cable, must
only be carried out by qualified personel from an AuthorizedTechnical
Service Centre.
• Never immerse the iron or steam tank in water or any other liquid.
• The appliance must never be placed under the tap to fill it with
water.
• Children should be supervised to ensure that they do not play with
the appliance.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capacities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person
responsible for their safety.
• This appliance reaches high temperatures and produces steam during
use, this could cause scalds or burns.
• If the safety fuse fitted in the appliance blows the appliance will be
rendered inoperative. To restore normal operation the appliance will
have to be taken to an authorised Technical Service Centre.
• Never aim the steam at people or animals.
• The appliance must be used and placed on a stable surface. When
placed on its support, make sure that the surface on which the
support stands is stable.
• Do not use the iron if it has been dropped, shows visible signs of damage
or if it is leaking water. It will have to be checked by an authorised
Technical Service Centre before it can be used again.
• Do not allow the cord to come into contact with the soleplate when
it is hot.
• The iron pad (2) can be placed into the specially designed recess on
the appliance or somewhere suitable alongside the ironing area. Never
rest the iron back on the steam generator without the iron pad!.
Customer Service
Great Britain
Bosch Customer Service
Grand Union House
Old Wolverton Road
Milton Keynes
MK12 5PT
UK +44 (0)844 892 8923
IRL +353 (0)1450 2655
www.bosch-home.co.uk
005/TDS25.. GB /02/10
TDS25.. GB
Operating instructions
Description
1. Removable water tank
2. Removable iron pad
3. Variable steam control
4. «Energy saving» button (*)
5. Steam hose
6. Illuminated main power 0/I button
7. "Steam ready"/ "Auto shut-off (*)" pilot light
8. "Water empty"/ "Clean warning (*)" pilot light
9. Housing with internal steam generator
10. Mains plug
11. Mains cable with storage facility
12. Steam hose clip
13. Temperature dial
14. Iron pilot light
15. Iron steam release button
16. Soleplate
17. "Calc'n clean" opening
� �
�
��
��
��
�
� �
� �
��
��
�
��
�� ��
��
�������������������
