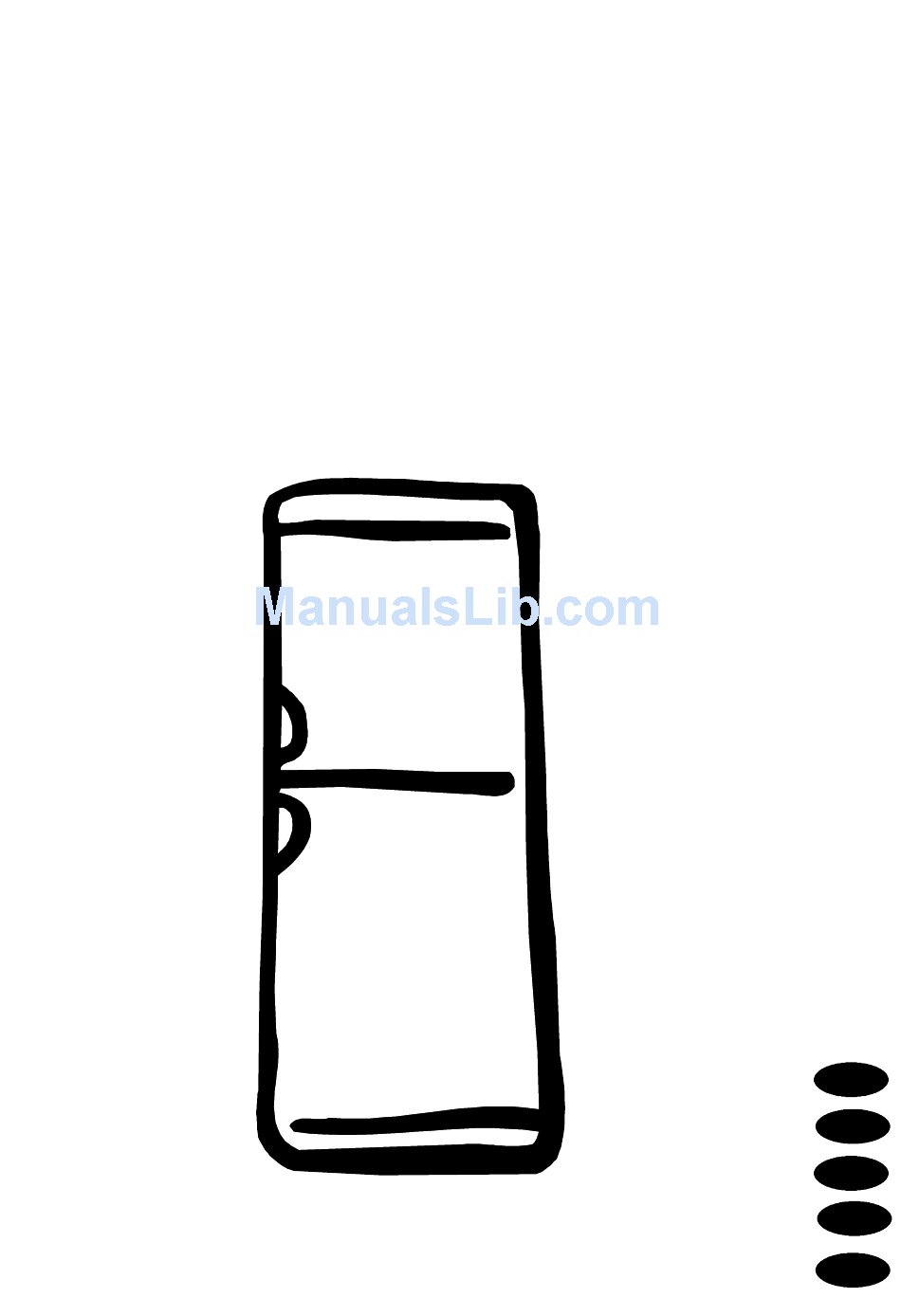

K ü h l- G e f r i e r k o m b i n a t i o n / F r i g o r i f e r o - C o n g e l a t o r e /
F r i g o r i f i c o - C o n g e l a d o r / F r i d g e -- f r e e z e r
GEBRAUCHSANWEISUNG
ISTRUZIONI D'USO
INSTRUCCIONES DE USO
INSTRÇÕNES DE USO
INSTRUCTION BOOKLET
DE
IT
ES
ERE3600
PT
GB
818 34 37-05/5
Advertisement
Table of Contents
Related Manuals for Electrolux ERE3600
Summary of Contents for Electrolux ERE3600
-
Page 1: Instrucciones De Uso
F r i g o r i f i c o - C o n g e l a d o r / F r i d g e -- f r e e z e r GEBRAUCHSANWEISUNG ISTRUZIONI D'USO INSTRUCCIONES DE USO INSTRÇÕNES DE USO INSTRUCTION BOOKLET ERE3600 818 34 37-05/5... -
Page 2: Table Of Contents
Safety instructions Your new fridge/freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the instruction booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. -
Page 3: Description Of The Appliance
Description of the Appliance Model ERE3600 Glass shelf Bottle shelf Vegetable drawer Butter compartment Door shelf with Egg holder Bottle shelf Freezer plate Freezer drawer Ventilation grille Grid Bottle- and can holder Quick chill shelf Control Panel -- 18 ACTION FREEZE ACTION COOL A. -
Page 4: Before Use
Before use Position and clean the cabinet as explained in the section "Installation". Check that the drain hose at the rear of the cabinet discharges into the drip tray. Before inserting the power plug into the outlet and switching on the cabinet for the first time, leave it standing upright for about 4 hours. -
Page 5: Switching Off
Switching off Switch off the cabinet by pressing the power switch. Keep the button pressed for approx. 1 second. Power to the cabinet is completely interrupted only when the power plug is disconnected. Alarms and other features Door open alarm If the fridge door remains open for more than 5 - 18 minutes, the red warning lamp starts flashing and an... -
Page 6: Using The Freezer
The vegetable drawer has two moveable partitions with five different choices in order to separate different vegetables. The vegetable drawer has a removable ventilation edging to increase the circulation of air and reduce the risk of condensation. Quick chill shelf: The lower Quick chill shelf can be placed in one of the upper grooves. -
Page 7: Temperature Inside The Freezer
Temperature inside the freezer To ensure that foodstuff will keep for a long time, be sure that the temperature inside the freezer is -18°C or below. Please note, however, that the energy consumption increases as the temperature decreases. The built-in temperature display shows the warmest temperature inside the freezer. If the temperature is measured using a thermometer, put it between the products since this will reflect the real temperature in the frozen products. -
Page 8: Freezing
At about -12°C: Most food products can be immediately re-frozen. Ice cream is especially sensitive to temperature changes and should be consumed as soon as possible. At -9° - -2°C: Food products should be prepared (cooked) prior to eating or re-freezing them. However, always check the quality of the food yourself to determine if it can be frozen or if it must be discarded. -
Page 9: Cabinet Interior
Cabinet interior Freezer drawers The freezer drawers make it possible to quickly and easily find the food package you want. To gain space, the drawers can be removed and the products can be put directly on the shelves. On all shelves, except the top shelf, it is possible to place products that protrude 20 mm from the front edge. -
Page 10: Maintenance And Cleaning
dismantling and subsequent recycling. All parts in the packaging can be recycled. · The cabinet has been designed for easy · Maintenance and Cleaning Removing the ventilation grille The ventilation grille can be removed, e.g. to wash the grille. Unsnap the ventilation grille by pulling it toward you. -
Page 11: Defrosting The Freezer
Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. Remove the freezer drawers and place them on top of each other by turning every other drawer one half turn. -
Page 12: Something Not Working
Something Not Working Before contacting your local Service Force Centre check the following point: Problem Possible cause / Remedy " " is displayed in the temperature An error has occurred in measuring the temperature. Call your display. service representative. (The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.) Audible alarm + flashing red warning... -
Page 13: Technical Specification
If the food products have thawed but are still fresh, they may be used, however they should be prepared before re-freezing or eating them. Technical specification Model ERE3600 Volume Refrigerator 254 l 87 l Freezer Width... -
Page 14: Unpacking
Unpacking Unpack the cabinet and check that it is in good condition and free of any transport damage. Notify the dealer immediately of any damage. Hand the packaging over for recycling. For more information, contact your local city office or the dealer. Do not allow children to play with the packaging. -
Page 15: Installing The Cabinet
Installing the cabinet When two appliances are placed beside each other, the distances enclosed in the plastic wrapping should be glued between the appliances. As shown in the illustration. Make sure that the power plug is not squashed or damaged by back of the product. A damaged power plug may overheat and cause a ·... -
Page 16: Door Reversal
Door Reversal 1. Close the cabinet and remove the plug from the electrical socket. 2. Remove the ventilation grille. There is a part on the grille that can be removed. Remove and reposition it on the other side. 3. Put the cabinet on a wooden board when it is laid down. - Page 17 www.electrolux.com www.electrolux.de www.electrolux.it www.electrolux.es www.electrolux.pt www.electrolux.co.uk MARIESTAD DT-AV...
