QuickSpecs

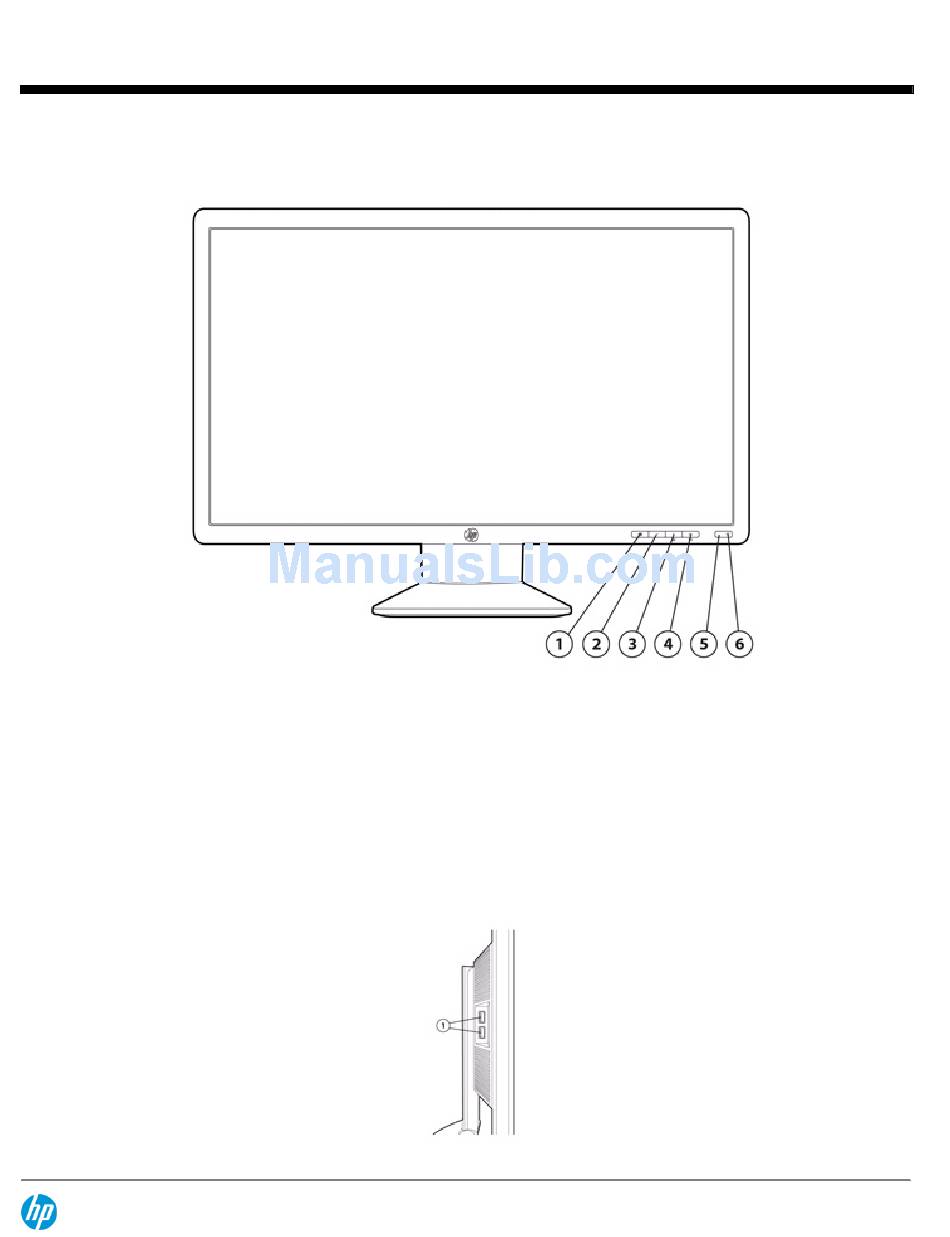

Overview
1. Menu
Opens, selects or exits the OSD menu.
2. Minus "-"
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
3. Plus"+"/ Input
If the OSD menu is on, press to navigate
forward through the OSD menu and increase
adjustment levels.
If the OSD menu is inactive, press to activate
the source button that chooses the video
signal input (VGA, DVI, or DisplayPort).
HP EliteDisplay E271i 27-inch IPS LED Backlit Monitor
1. Integrated USB 2.0 hub
DA - 14661 North America — Version 3 — August 19, 2013
4. OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu is
inactive, press to activate the auto
adjustment feature to optimize the screen
image.
5. Power/ Power
Turns the monitor on or off.
LED:
LED
fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.
Page 1
