Page 1: Washing Machine
Bruksanvisning Käyttöohje Installation and instruction manual Bruksanvisning Bruksanvisning Käyttöohje Instruction booklet Vaskemaskin EW 813 F Tvättmaskin Vaskemaskin EW 813 F Pesukone Tvättmaskin Pesukone Washing machine Washing machine Stiralwnaå maßina Lavadora Manual de uso Rukovodstvo po ™kspluatacii... -
Page 2: Your New Washing Machine
Your new washing machine This new washing machine meets all requirements for Protection of the environment a modern washing of laundry with reduced Materials marked with the symbol are consumption of water, energy and detergent. recyclable. The temperature selector dial allows you to To enable them to be recycled, they must be placed choose personally the suitable washing in the appropriate collection areas (or containers). -
Page 3: Table Of Contents
Contents Important information Maintenance ......56 ...........68 Bodywork ............68 Description of the appliance ....57 Detergent dispenser drawer ........68 Detergent dispenser drawer ........57 Drain filter ............68 Water inlet filter..........69 Technical specifications ......57 The dangers of freezing........69 Installation ............58 Something not working ....70-71 Unpacking ............58 Positioning............59 Water inlet ............59... -
Page 4: Important Information
Important Information It is important that this instruction book be kept with the appliance for future reference. If you sell or give the appliance away, make sure that the book is passed to the new owners so that they can familiarise themselves with its operation and relevant warnings. -

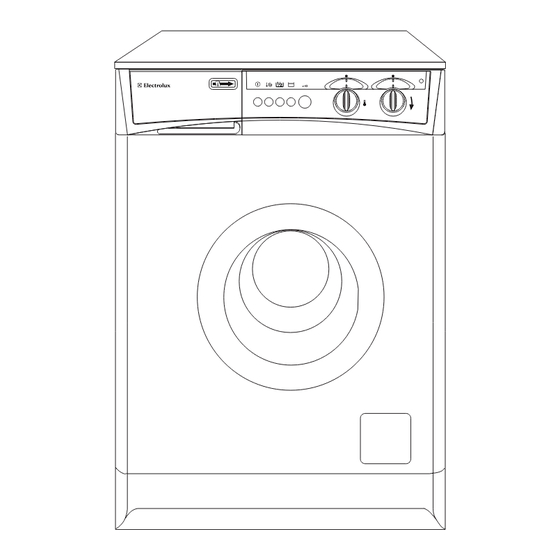

Page 5: Description Of The Appliance
Description of the appliance 01 Detergent dispenser drawer 02 Programme chart 03 ON/OFF button 04 Option buttons 05 Door opening button 06 Temperature selector dial 07 Programme selector dial 08 Operating pilot light 09 Drain filter 10 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: Installation
Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. 1. Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. -
Page 7: Water Inlet
Water inlet Connect the water inlet hose to a tap with a 3/4" thread after having inserted the small filter “A” supplied with the machine. The other end of the inlet hose which connects to the machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks. -
Page 8: Use
Control panel 2 3 4 5 6 Description of the controls 1 Programme chart There is a programme guide in symbols inside the handle of the detergent dispenser drawer. C0012 2 On/Off button clothes are left damp in the drum. When it is convenient for you to empty the machine, simply Press this button to start the machine: the «pilot»... -
Page 9: Washing Hints
Washing hints Maximum loads Recommended loads are indicated in the programme Sorting the laundry charts. General rules: Follow the wash code symbols on each garment label cotton, linen: drum full but not too tightly packed and the manufacturer’s washing instructions. Sort the laundry as follows: synthetics: drum no more than half full whites, coloureds, synthetics, delicates, woollens. -
Page 10: Detergents And Additives
Any fabric softener or starching additives must be Mould stains: treat with bleach, rinse well (whites poured into the compartment marked before and fast coloureds only). starting the wash programme. Grass: soap lightly and treat with bleach (whites and Follow the product manufacturer’s recommendations fast coloureds only). -
Page 11: International Wash Code Symbols
Wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not wash... -
Page 12: Washing Programmes
Energetic programmes for cotton and linen Maximum load: 4.5 kg Possible Progr. Temp. Type of laundry Cycle description options Prewash Whites Wash at 60°-95°C 60°-95° with prewash 4 rinses (heavy soiled) Spin Whites Wash at 60°-95°C 60°-95° without prewash 4 rinses (normally soiled) Spin Coloureds... - Page 13 Gentle programmes for synthetics, mixed fibres, delicates woollens Maximum load: 2 kg, woollens: 1 kg Possible Progr. Temp. Type of laundry Cycle description options Prewash Synthetics Wash at 40°-60°C 40°-60° with prewash 3 rinses (heavy soiled) Short spin Synthetics Wash at 40°-60°C 40°-60°...
-
Page 14: Operating Sequence
Operating sequence Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. Pour half a measure of detergent into the main wash compartment and start up the machine. -
Page 15: At The End Of The Programme
7. At the end of the programme The machine stops automatically, the operating pilot light goes out. If you have selected a gentle programme with the anticrease option , drain the water before opening the door. It is normal to have to wait for about 2 minutes before being able to open the door to allow the safety lock to release. -
Page 16: Maintenance
Maintenance Bodywork Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork. Detergent dispenser drawer After a while, detergents and fabric softeners leave deposits in the drawer. -
Page 17: Water Inlet Filter
Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap and remove the filter. Clean it with a stiff brush. -
Page 18: Something Not Working
Something not working Problems which you can resolve yourself Problem Possible cause The machine does not start up: Check that the door is firmly closed. Check that the machine is plugged in and that there is power at the socket. Check that the main fuse has not blown. - Page 19 Problem Possible cause The machine vibrates or is noisy: Check that all the transit bolts and packing have been removed. Check that the machine is not resting against anything. Check that the support feet are resting firmly on the ground. Check that the laundry is evenly distributed in the drum.
