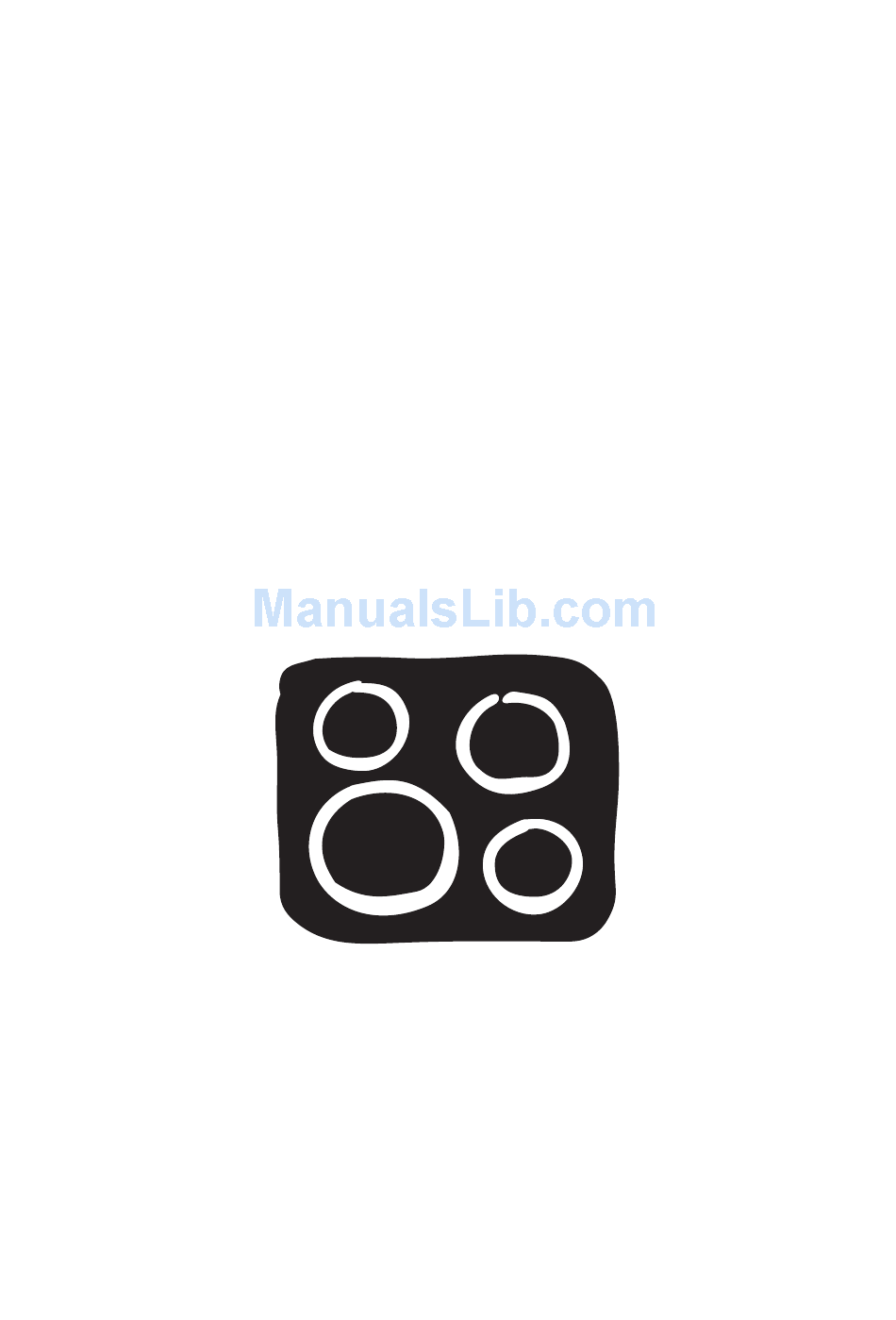

- Page 1 C e r a m i c h o b Installation and Operating Instructions CM 600 BLK 822 930 628-M-060807-01...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty. Correct use • This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowl- edge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the ap- pliance safely. -
Page 5: Safety During Use
Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •... -
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone Single cooking zone 1200 W 1800 W Control Knobs Residual heat indicator Single cooking zone Single cooking zone 1200 W 1800 W Assignment of Control Knobs... -
Page 7: Control Knobs
Control Knobs The cooking power can be set anywhere between level 1 and 9. lowest power highest power Off position Residual heat indicator The residual heat indicator lights up, as soon as one cooking zone is hot. Caution Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. -
Page 8: Operating The Appliance
Operating the appliance When a cooking zone is switched on, it may hum briefly. This is a character- istic of all ceramic glass cooking zones and does not impair either the func- tion or the life of the appliance. Selecting the heat setting Heat setting Ring Control Knob Knob setting... -
Page 9: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, espe- cially in products containing starch, may present a health risk due to acryla- mide. Therefore we recommend cooking at low temperatures and not browning foods too much. -
Page 10: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking set- suitable for Cook time Tips/Hints process ting Residual heat setting, Off position Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce, Melting melting butter, chocolate,... -
Page 11: Cleaning And Care
Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Re- move residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 12: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones are not The desired heat setting is Set the heat setting. functioning. not set. The fuse in the house’s Check the fuse. electrical wiring (fuse box) If the fuses trip a number of has been tripped. -
Page 13: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this prod-... -
Page 14: Installation Instructions
Installation Instructions Safety instructions Warning! This must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. -
Page 15: Electrical Connection Diagram
A device must be provided in the electrical installation which allows the ap- pliance to be disconnected from the mains at all poles with a contact open- ing width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contac- tors. -
Page 16: Assembly
Assembly... -
Page 18: Rating Plate
Rating Plate CM600BLK 949 592 590 PEE2011 230 V 50 Hz 6,0 kW... -
Page 19: Service And Spare Parts
Service and Spare Parts If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning: 0870 5 929 929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area. - Page 20 822 930 628-M-060807-01 Subject to change without notice...
