Summary of Contents for Electrolux EWN13570W

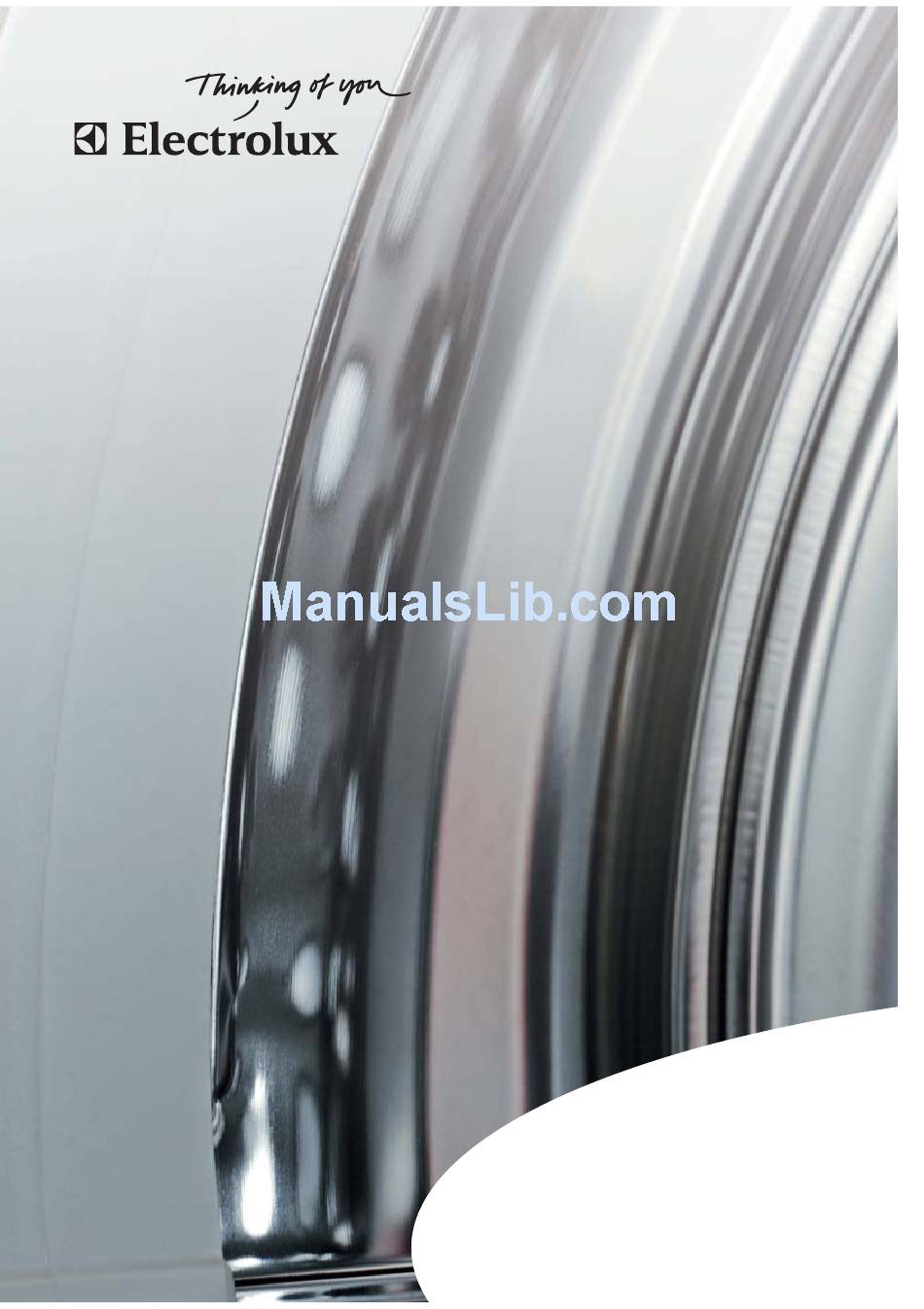

- Page 1 User Manual Washing Machine EWN 13570 W...
- Page 3 electrolux 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual.
-
Page 4: Table Of Contents
4 contents electrolux Contents Safety information......5 Product description ......7 Control panel ........8 Use............9 Washing hints ........17 International wash code symbol ..20 Washing programme ....21-23 Programme information ....24 Care and cleaning ......26 Something not working....30 Techical data ........34 Consumption values ......35 Installation ........36 Environment concerns .....42 Guarantee conditions ......43... -
Page 5: Safety Information
safety information electrolux 5 ● Safety Information Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum. In the interest of your safety and to ●... - Page 6 6 safety information electrolux ● ● If the appliance is installed in a Never use the washing machine if location subject to frost, please read the power supply cable, the control the “dangers of freezing”chapter. panel, the working surface or the base are damaged so that the inside ●...
-
Page 7: Product Description
electrolux product description 7 Product description Your new appliance meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The New Jet system allows total use of detergent and reduces water consumption so saving energy. Detergent dispenser drawer Control panel Door opening handle... -
Page 8: Control Panel
8 electrolux control panel Control panel Programme selector dial Temperature button Spin reduction button Easy Iron button Extra Rinse button Delay button Display Start/Pause button Time manger buttons... -
Page 9: Use
use electrolux 9 To enable (disable) this option press simoultaneously for about 6 seconds First Use «Extra Rinse» and «Delay» buttons until the icon appears (disappears) on (from) the display. Ensure that the electrical and water ● Daily Use connections comply with the installation instructions. - Page 10 10 electrolux use Shirts , Lingerie , Duvet compartment marked (the amount Curtains and Jeans used must not exceed the “MAX” mark in the drawer). Close the drawer gently. The selector dial can be turned either clockwise or anticlockwise. Position «O» to Reset programme/ Switching OFF of the machine.
- Page 11 use electrolux 11 Select the temperature Maximum speeds are: for Cottons: 1300 rpm; ● for Jeans programme: 1100 rpm; ● for Synthetics, Wool, Handwash: ● Shirt and Lingerie: 900 rpm; for delicate fabrics, Silk, Quick Wash, ● Duvet and Curtains: 700 rpm. Night Cycle : by selecting this Press this button repeatedly to increase or...
- Page 12 12 electrolux use This button can be selected with all Rinse Hold : by selecting this programmes except the Wool, option the water of the last rinse is not Handwash, Duvet, Lingerie, Silk, Quick emptied out to prevent the fabrics from Wash and Shirt programmes.
- Page 13 use electrolux 13 Selecting the delayed start. • Select the programme and the required options. • Select the delay start. • Depress Start/Pause button: the machine starts its hourly countdown. After the machine has started, only the running icon stays on. When the The programme will start after the programme has finished, a flashing selected delay has expired.
- Page 14 14 electrolux use Alarm codes Select the Start/Pause In the event of operating problems, To start the selected programme, press some alarm codes can be displayed, for the Start/Pause button; the green pilot example (see paragraph light stops flashing. “Something not working”). The «Door»...
- Page 15 use electrolux 15 Note Select the “Time Manager” option Once the programme has started the Time manager option cannot be changed. This function allows you to modify the Attention! washing time, automatically proposed The “Time Manager” option cannot by the washing machine. be selected with the Economy By pressing the «Time manager »...
- Page 16 16 electrolux use Altering an option or a running If the «Door» pilot light does not programme goes off, this means that the machine is already heating, that the water level It is possible to change any option is above the bottom edge of the door before the programme carries it out.
-
Page 17: Washing Hints
washing hints electrolux 17 Washing hints Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Sorting the laundry Maximum loads Follow the wash code symbols on each Recommended loads are indicated in garment label and the manufacturer’s the programme charts. - Page 18 18 electrolux washing hints Oil based paint: moisten with benzine Detergents and additives stain remover, lay the garment on a soft Good washing results also depend on cloth and dab the stain; treat several the choice of detergent and use of the times.
- Page 19 washing hints electrolux 19 Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.
-
Page 20: International Wash Code Symbol
20 electrolux International wash code symbol International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature... -
Page 21: Washing Programme
washing programmes electrolux 21 Washing programmes Programme/ Description of Type of laundry Options Temperature programme White and coloured Main wash from 90°C cotton: e.g. sheets, Spin Red./ (cold) Cottons tablecloths, household Easy Iron, Extra 3 rinses 90 - linen, shirts, blouses, Rinse, Time Manager Long spin underwear. -
Page 22: Washing Programmes
22 electrolux programme information Washing programmes Programme/ Description of Type of laundry Options Temperature programme Separate rinse cycle Spin Red./ 3 rinses Rinse for cotton hand Easy Iron , Long spin washed items. Extra Rinse For emptying out the last rinse water in programmes with the Draining of water Drain... -
Page 23: Washing Programme
washing programmes electrolux 23 Washing programmes Programme/ Description of Type of laundry Options Temperature programme Silk items to be Main wash at 30°C Silk gentle washed and 2 rinses Spin Red./ 30° spun. Short spin Main wash at 30°C Washing cycle for Shirts Spin Reduction 2 rinses... -
Page 24: Programme Information
24 electrolux programme information Programme information This programme can be selected for slightly or normally Economy soiled cotton and synthetic items. The temperature will programmes decrease and the washing time will be extended. This allows to obtain a good washing efficiency by saving energy. Washing programme for machine washable wool as well as Wool and for hand washable woollens and delicate fabrics with the... - Page 25 programme information electrolux 25 Programme information With this programme it is possible to wash free time items like pants, shirts or jackets in Jeans and also jersey realized Jeans with hi-tech materials. This special short programme is a complete washing cycle for lightly soiled mixed fabrics /synthetic items or laundry which needs freshening up.
-
Page 26: Care And Cleaning
26 electrolux care and cleaning Care and cleaning Cleaning the dispenser drawer The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the You must DISCONNECT the appliance catch downwards and by pulling it out. from the electricity supply, before you Flush it out under a tap, to remove any can carry out any cleaning or... - Page 27 care and cleaning electrolux 27 • pull out the emergency emptying cap Cleaning the pump from the filter cover, using a pliers. The pump should be inspected if • the machine does not empty and/or spin • the machine makes an unusual noise during draining due to objects such as safety pins, coins etc.
- Page 28 28 electrolux care and cleaning Always keep a rag nearby to dry up spillage of water when removing the cover. • Remove any objects from the pump impeller by rotating it. • replace the filter into the pump paying attention to insert it properly. When done, screw it firmly •...
- Page 29 care and cleaning electrolux 29 It is therefore a good idea to clean it Emergency emptying out from time to time. If the water is not discharged, proceed Turn off the water tap. Unscrew the as follows to empty out the machine: water inlet hose.
-
Page 30: Something Not Working
Something not working 30 electrolux Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red Start/Pause pilot light flashes and one of the following alarm codes appears on the display to indicate that the machine is not working:... - Page 31 columns and margins electrolux 31 Malfunction Possible cause Solution Check the drain hose The machine does not The drain hose is squashed ● ● empty and/or does not spin: or kinked. connection. The drain pump is clogged. Clean the drain pump. ●...
- Page 32 32 electrolux something not working Malfunction Possible cause Solution Unsatisfactory washing Too little detergent or Increase the detergent ● ● results: unsuitable detergent has quantity or use another one. been used. Stubborn stains have not Use commercial products to ● ●...
- Page 33 something not working electrolux 33 Malfunction Possible cause Solution Spinning starts late or the The electronic unbalance Redistribute the laundry. ● ● machine does not spin: detection device has cut in because the laundry is not evenly distributed in the drum.
-
Page 34: Techical Data
34 electrolux technical data Technical data Dimensions Width 60 cm Height 85 cm Depth 63 cm Electrical connection Voltage Information on the electrical connection is given on - Overall power - Fuse the rating plate on the inner edge of the appliance door Water supply pressure Minimum... -
Page 35: Consumption Values
consumption values electrolux 35 Consumption values Programme Water Energy Programme consumption consumption duration (in litres) (in kWh) (in minutes) Cottons 90° 2.25 + Prewash Cottons 90° Synthetics 60° 1.05 Prewash Synthetics 60° 0.58 Delicates 40° 1.02 Cottons Economy 60° Synthetics Economy 40°... -
Page 36: Installation
36 electrolux installation Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the 4. Unscrew and remove the two large machine ever has to be transported rear bolts B and the six smaller bolts again. - Page 37 installation electrolux 37 6. Open the porthole, take out the inlet hose from the drum and remove the polystyrene block fitted with the adhesive tape on the door seal. Accurate levelling prevents vibration, noise and displacement of the machine during operation. Never place cardboard, wood or similar materials 7.
- Page 38 38 electrolux 3. Set the hose correctly by loosening system. the ring nut. After positioning the inlet There should be a minimum distance hose, be sure to tighten the ring nut of 5.02m (16.5 ft) between the again to prevent leaks. appliance’s inlet and the bottom of the water storage tank.
- Page 39 installation electrolux 39 The drain hose may be extended to a Push the drain hose onto the spigot maximum of 4 metres. and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine.
- Page 40 40 electrolux installation Note Electrical connection Please ensure that when the appliance Any electrical work required to install is installed it is easily accessible for the this appliance should be carried out by engineer in the event of a breakdown. a qualified electrician or competent person.
- Page 41 installation electrolux 41 Permanent connection In the case of permanent connection it is necessary that you install a double pole switch between the appliance and the electricity supply (mains), with a minimum gap of 3mm between the switch contacts and of a type suitable for the required load in compliance with the current electrical regulations.
-
Page 42: Environment Concerns
42 electrolux environment concerns Environment concerns Ecological hints To save water, energy and to help Packaging materials protect the environment, we The materials marked with the symbol recommend that you follow these tips: are recyclable. • Normally soiled laundry may be >PE<=polyethylene washed without prewashing in order >PS<=polystyrene... -
Page 43: Guarantee Conditions
guarantee/customer service electrolux 43 Standard guarantee • Appliances found to be in use within a commercial environment, plus tho- conditions se which are subject to rental agree- ments. We, Electrolux, undertake that if within 12 months of the date of the purchase •... - Page 44 44 electrolux guarantee/customer service Customer Care European Guarantee For general enquiries concerning your This appliance is guaranteed by Electrolux appliance, or for further infor- Electrolux in each of the countries mation on Electrolux products please listed at the back of this user manual, contact our Customer Care for the period specified in the appliance Department by letter or telephone at...
-
Page 45: Customer Service Centres
electrolux 45 Customer Service Centres Should you need further assistance please contact your local Customer Service Centre www.electrolux.com Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/België/Belgien +32 2 363 04 44 Bergensesteenweg 719, 1502 Lembeek Česká... - Page 46 46 electrolux...
- Page 48 ANC number: 132 972 120-01-142007...
