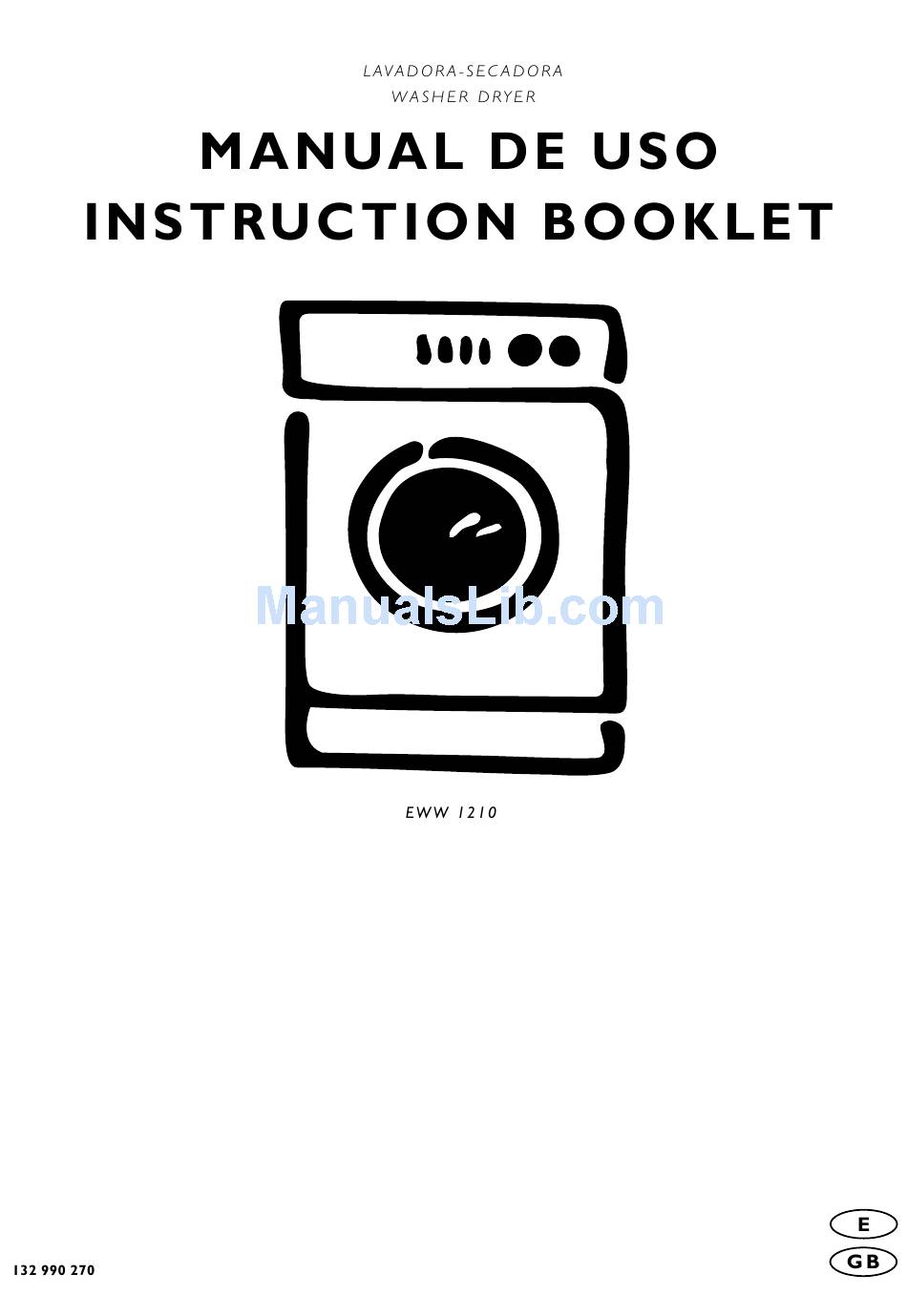

- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Operating sequence 47-49 Warnings 32-33 Washing programmes Disposal Special programmes Timed dryings Tips for environmental protection 33 International wash code symbols Technical specifications Maintenance Bodywork Installation Detergent dispenser drawer Unpacking Drain pump Positioning Water inlet filter Water inlet Emergency emptying out Water drainage Frost precautions Electrical connection... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Use only the recommended quantities of fabric Installation softener. An excessive amount could damage the • All internal packing must be removed before using laundry. -
Page 5: Disposal
• Keep all detergents in a safe place out of children’s Child safety reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height Width Depth 60.6 cm WASHING DRYING MAXIMUM LOAD Cotton Synthetics Delicates Woollens SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum 50 kPa Maximum 800 kPa... -
Page 7: Installation
Installation Unpacking 6. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 V, ways: single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washer-Dryer
Your new washer-dryer This new machine, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel Position E corresponds to the ENERGY SAVING 1 Programme chart programme and position to “cold wash”. A programme chart in Spanish is in the interior part At the end of the programme the selector dial of the detergent dispenser drawer. must be turned to position O. -
Page 11: Electronic Drying Button
8 Extra rinse button Spin speed Can be used with all programmes except the wool The following speeds are available for the different programme. The machine performs 4 rinses instead fabrics. of 3. • Cotton, linen: This option is recommended for people who are 500/700/900 max 1200 r.p.m. - Page 12 When the programme has finished a flashing zero Altering the delayed start is displayed. If you have selected the Anti-crease option , the • Depress START/PAUSE button zero will not flash. • Depress DELAY START button until the required time is displayed. Drying time If you wish to cancel the delay, depress the DELAY START button only once: the symbol 0 h is displayed.
-
Page 13: Controls
Alarm codes Draining of water In the event of operating problems, some alarm By depressing the Start/Pause button codes can be displayed, for example E20 (see • The water of programme “A” (Soak) is emptied out paragraph “Something not working”). •... -
Page 14: Programme Information
End of programme Programme information When the door locked light has gone out, the door can be opened. The light End on the programme Wool progress display illuminates. Washing programme for machine washable wool as A flashing zero appears on the display. well as for hand washable woollens and delicate Switch the machine off and remove the laundry. - Page 15 D = Drain (Descarga) For emptying out the water of the last rinse in programmes with the Anti-crease option. Turn first the programme selector dial to O, then select programme “D” and depress the START/PAUSE button. F = Spin (Centrifugado) Separate spin at the maximum speed for hand washed garments.
-
Page 16: Washing Hints
Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 17: Detergents And Additives
residual marks with bleach. Quantity of detergent to be used Ink: depending on the type of ink, moisten the fabric The type and quantity of detergent will depend on first with acetone (*), then with acetic acid; treat any the type of fabric, load size, degree of soiling and residual marks on white fabrics with bleach and then hardness of the water used. -
Page 18: Drying Hints
Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle. -
Page 19: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Washing only Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 20: Select The Required Options
7. Select the required options 9. Start the programme The light corresponding to the depressed button To start the selected programme, press the illuminates. START/PAUSE button; the corresponding light stops flashing. The pilot light corresponding to the wash phase which is running is on. The door light comes on to indicate that the door is locked. -
Page 21: Drying Only
Drying only Automatic washing and drying (NON-STOP programme) Warning! Do not exceed the maximum laundry loads: Warning! For NON-STOP programmes, it is also kg for linen and cottons essential not to exceed the maximum load sizes of 3 kg for cotton and 2 kg for synthetics. kg for synthetics. -
Page 22: Washing Programmes
Programme chart Washing programmes Consumption* Type of Programme Additional Max. Section Temp. fabric description functions load Energy Water Time min. PRELAVADO light blue 90° White Wash at 90°C 6 kg 2.05 CENTRIF./ cotton 3 rinses CORTO Normal spin ACL. EXTRA light blue White cotton Wash at 60°C... -
Page 23: Special Programmes
Programme chart Special programmes Consumption* Selector Programme Additional Max. Section dial Programme description functions load Energy Water Time position min. blue Soak Soak at 30°C 6 kg 0.37 (Remojo) stop with water in tub. To drain, depress START/PAUSE button The machine automatically empties itself after 18 hours. -
Page 24: Timed Dryings
Programme table Timed drying Degree of Drying time Type of fabric Max. load Spin speed drying mins 1200 3 kg Extra dry Cotton and linen Ideal for (bathrobes, bath towelling towels, etc.) materials 1.5 kg 1200 3 kg 1200 Cotton and linen (towels, T-shirts, bathrobes) Store dry (*) -
Page 25: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 26: Maintenance
Maintenance 1. Bodywork 3. Drain pump Clean the outside of the machine with warm water The pump should be inspected if and a detergent used to handwash dishes. Rinse • the machine does not empty and/or spin with clean water and dry with a soft cloth. •... -
Page 27: Water Inlet Filter
• Put the cap back on the emergency emptying hose 5. Emergency emptying out and place the latter back in its seat. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; •... -
Page 28: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10 : problem with the water supply - E20 : problem with water draining - E40 : door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme. - Page 29 Problem Possible cause • The water level is above the bottom edge of the door. • The door will not open: • The machine is heating the water or drying clothes. • The drum is turning. • The electronic unbalance detection device has cut •...
