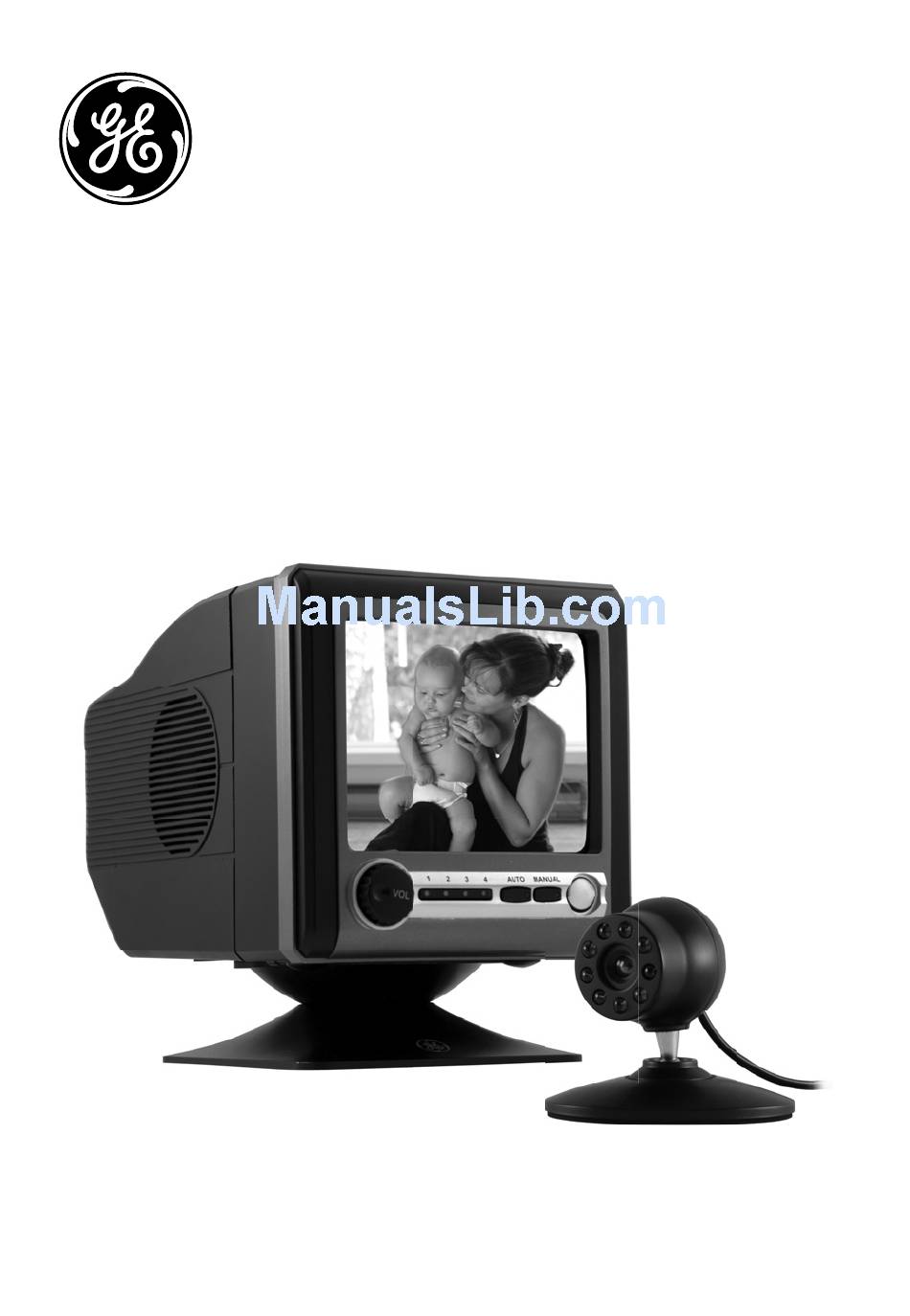

- Page 1 45232 Home Monitoring B/W Wired Camera System with Monitor User Manual www.jascoproducts.com 1-800-654-8483...
-
Page 2: Product Features
Thank you for purchasing the GE 45232 B/W Wired Camera System with Monitor. Please review these instructions carefully before attempting to operate the unit. PRODUCT FEATURES • Night Vision feature for low or no light viewing up to 10 ft. -
Page 3: Choosing A Camera Mounting Location
CHOOSING A CAMERA MOUNTING LOCATION The Camera included with the 45232 Monitor system can be positioned on a desktop, or mounted to a wall. It is suitable for indoor or outdoor use. When choosing a mounting location, please be advised: •... - Page 4 camera. The camera connects to any of the video inputs (1-4) on the back of the monitor. This system will accommodate up to 4 cameras. The monitor supplies power to each of the cameras. 1. Plug the power adapter into the power jack on the back of the monitor, then into an AC outlet.
- Page 5 and Vertical Hold can be adjusted with controls at the back of the monitor. CHANNEL (CAMERA) SELECTION Manual Mode To select one of the four channels manually, press the MANUAL button on the front panel of the Monitor. The green LED will light for the corresponding channel.
- Page 6 Cycle Time Setting (Time interval between camera selections) The default cycle time for the receiver is preset to 4 seconds. To change the cycle time, press both of the buttons (Auto & Manual) on front of the receiver simultaneously. The Monitor will beep. Each beep is one extra second of cycle time added.
-
Page 7: Installation
INSTALLATION Once your preferred camera mounting location has been chosen, disconnect the camera lead and turn off power to the monitor before proceeding. Desktop Mount: 1. Place camera in desired location on a fl at surface. 2. Run the 60’ cable from the camera’s location to the location of the TV, VCR or DVR. - Page 8 3. Drill three 1/8” holes in mounting location and insert wall anchors provided. Position wall bracket over the anchors and install screws or screw directly into a stud. 4. Run the 60’ cable from the camera’s location to the location of the Monitor. Use the cable clips provided to keep the cable in place.
- Page 9 Avoid laying the cable next to any heat sources. If the cable is run along the ground, a protective covering must be used to prevent the cable from being damaged, stepped on or becoming a tripping hazard. The camera cable may be extended up to 300 ft.
-
Page 10: Troubleshooting
If you have any questions or feel the camera system is not operating correctly, or you simply need additional information, please visit our web site www.jascoproducts.com, or contact our Customer Service Group 1-800-654-8483. TROUBLE SHOOTING No camera picture 1. Check all connections. Make sure Monitor is powered ON. -
Page 11: Specifications
SPECIFICATIONS (Subject to change without notice.) AC/DC ADAPTER Power supply operating voltage ... 120V 60Hz Output voltage ...13.5 DC Output current ...1.2A maximum CAMERA Camera operating voltage ... 9V DC Current consumption ...100mA maximum Horizontal resolution ...360 TV lines High-Speed Electronic Shutter ...1/60-1/6000 sec Camera Type ... -
Page 12: Fcc Statement
WARRANTY ONE-YEAR LIMITED WARRANTY: Jasco Products Company warrants this product to be free from manufacturing defects for a period of one year from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. - Page 13 reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
