Introduction to the IntuiKey Keyboard Series

This manual contains all the information necessary to operate the IntuiKey Keyboard. Step-by-
step procedures, illustrations, and sample menus guide you through each phase of IntuiKey
operation. Throughout the manual, you will see sample drawings of each menu as they appear
on the keyboard. These drawings display the softkey text in relation to the Softkey. For the
purposes of this manual, each key is numbered from 1 to 14, using the convention found
below.

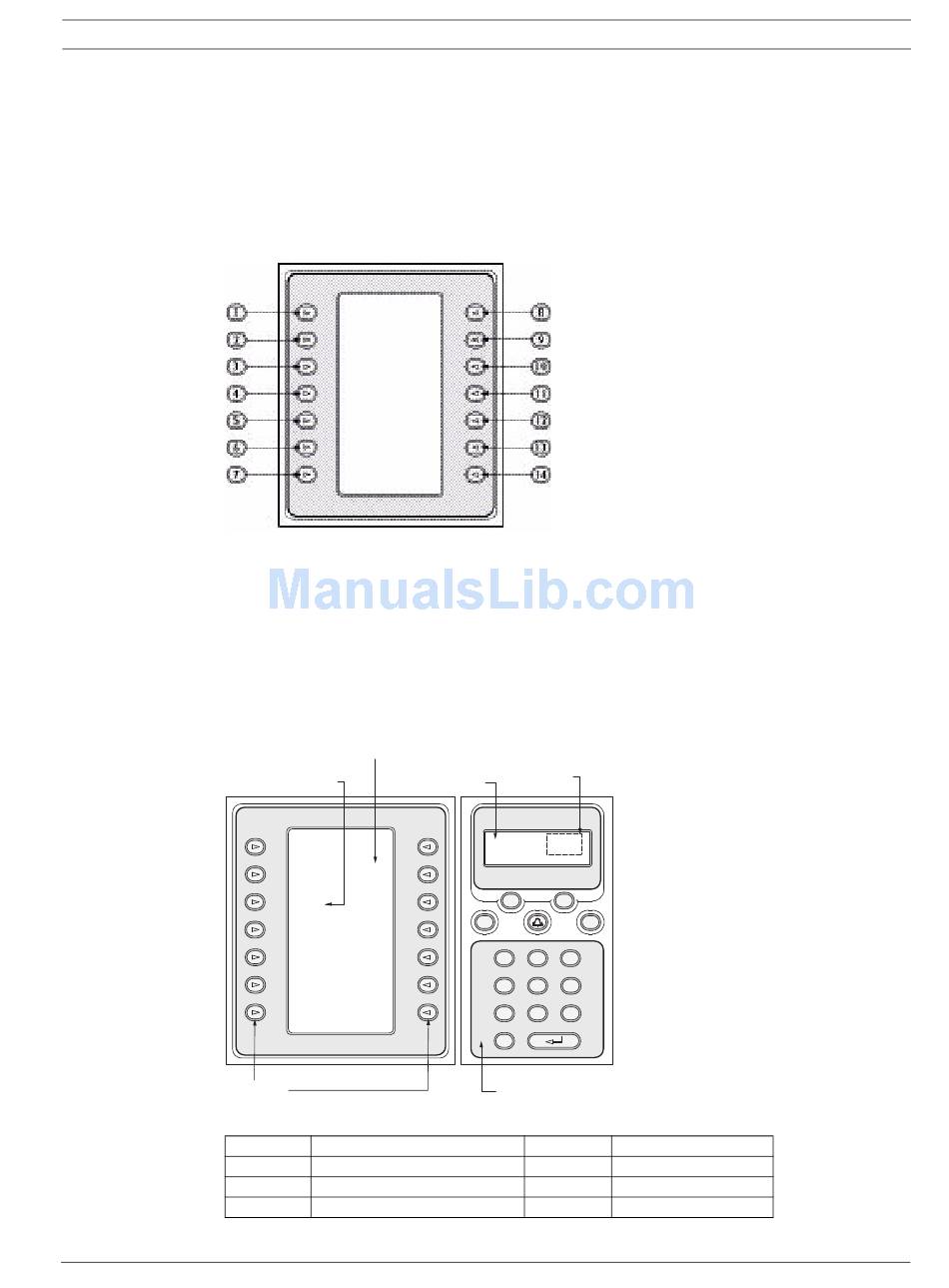

Figure 1.1 Softkey Numbering Guide
Following the menu diagram, the function of each key is described in a paragraph indicated
with an icon that identifies the particular softkey. Be aware that some instructions are model-
specific; be sure to read the appropriate information for your IntuiKey model.
1.1

Operating the IntuiKey Keyboard

Learning the IntuiKey Keyboard components is accomplished easily by dividing the keyboard
into separate functional areas as illustrated below:
SoftKey Descriptor
SoftKeys
Figure 1.2 IntuiKey Components
Reference Description
1
2
3
Bosch Security System, Inc.
SoftKey Display
Stat u s Display
Exit
^ Up Zoom
< Left Right >
v Down
Softkey Descriptor
Softkeys
Softkey Display
User Manual
Introduction to the IntuiKey Keyboard Series | en
Numeric
Entry C ell
Monitor Camera
1 1
MUX /DVR
Prod Mon
Clr Shot
1 2 3
4 5 6
7 8 9
0
Numeric Keypad
Reference Description
4 Status Display
5 Numeric Keypad
6 Numeric Entry Cell
F.01U.080.637 | 1.92 | 2008.12
1
