Summary of Contents for Zanussi ZKT 863 LX

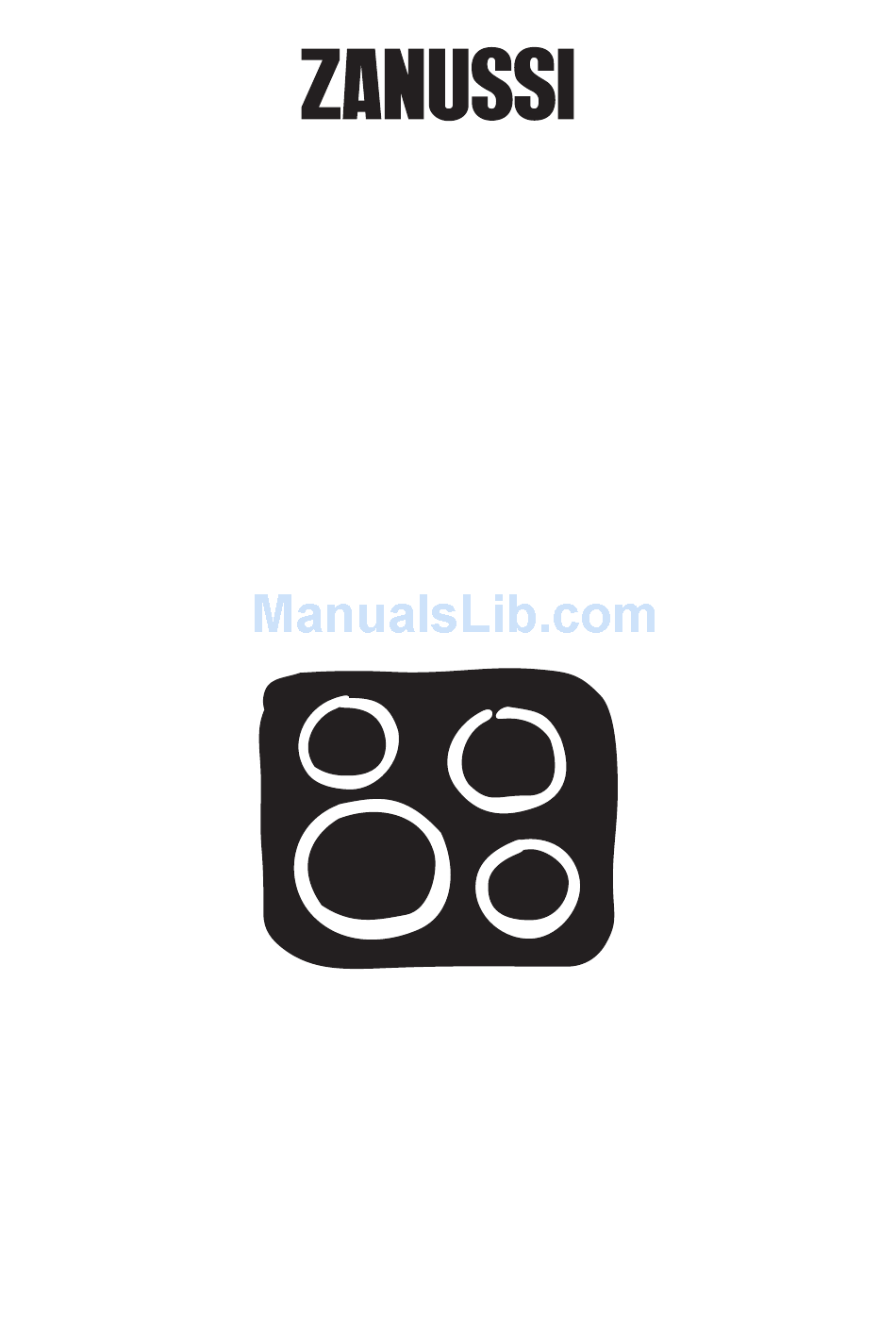

- Page 1 Ceramic hob ZKT 863 LX Installation and Operating Instructions...
- Page 2 Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appliance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance.
-
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions . -
Page 4: Operating Instructions
Operating Instructions Safety instructions Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di- rective 92/31/EEC –... -
Page 5: Safety During Use
Safety during use • Overheated fat and oil can ignite quickly. When cooking with fat or oil (e.g. frying chips) do not leave the appliance unattended. • There is the risk of burns from the appliance if used carelessly. • Remove stickers and film from the glass ceramic. •... -
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone Multi-purpose zone 1200W 1500/2400W Double cooking zone Control Single cooking zone 750/2200W panel 1200W Control panel layout Cooking zone indi- Heat setting selection Lock cators Display Timer display Outer ring Outer ring Multi-pur- Timer... -
Page 7: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off Switches appliance on and off... -
Page 8: Operating The Appliance
Operating the appliance Switching the appliance on and off Control panel Display Pilot light ¾ Switch on Touch for 2 seconds lights up Switch off Touch for 1 second / none goes out After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off. -
Page 9: To Switch The Outside Ring On And Off
To switch the outside ring on and off By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware. Before an outside ring can be switched on, the inside ring must be switched Double ring cooking Sensor field Pilot light... -
Page 10: Using The Automatic Warm-Up Function
Using the automatic warm-up function All cooking zones are equpped with an automatic warm up function When ¾ setting a heat setting using , when starting from , the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set. -
Page 11: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. Setting the child safety device Step Control panel Display/Signal ¾ Switch on the appliance (Do not set a heat setting) Touch until the signal sounds Acoustic signal Touch Appliance switches off. -
Page 12: Using The Timer
Using the timer Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal flashes Cooking zone switch- es off Countdown timer cooking zones not in use acoustic signal flashes If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed. -
Page 13: Setting The Time
Setting the time Step Control panel Indicator Select cooking Pilot light for the cooking zone selected zone flashes Touch minutes After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Switching off the timer function Step Control panel Indicator... -
Page 14: Safety Cut-Out
Switching off the acoustic signal Step Control panel field Acoustic signal Touch Acoustic signal to acknowledge. Acoustic signal stops. Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automati- cally switches itself off. -
Page 15: Tips On Cooking And Frying
Tips on cooking and frying Information about acrylamides According to the latest scientific research, intensive browning of food, espe- cially in products containing starch, may present a health risk due to acryla- mide. Therefore we recommend cooking at low temperatures and not browning foods too much. -
Page 16: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cook- Cook set- suitable for Tips/Hints time ting process Residual heat, Off po- sition Keep- Keeping cooked foods as re- ing food Cover warm quired warm Hollandaise sauce,... - Page 17 Heat Cook- Cook set- suitable for Tips/Hints time ting process Hash browns, loin Heavy steaks, steaks, Flädle 5-15 mins. Turn halfway frying (pancakes for garnish- per pan through cooking ing soup) Boiling Searing Boiling large quantities of water, cooking pasta, searing Deep meat (goulash, pot roast), deep frying chips frying...
-
Page 18: Cleaning And Care
Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Re- move residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 19: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones will More than 10 seconds Switch the appliance not switch on or are not have passed since the on again. functioning appliance was switched on The child safety device Deactivate the child is switched on safety device (See the... - Page 20 Problem Possible cause Remedy The automatic warm up There is still residual Let the cooking zone function is not switch- heat on the cooking cool down zone h ing itself on The highest heat set- The highest heat set- ting is set Ç ting has the same pow- er as the automatic warm up function...
- Page 21 Problem Possible cause Remedy and number are dis- Electronics fault Disconnect the appli- played ance from the electrical supply for a few min- utes (Take the fuse out of the house’s wiring system) If after switching on again, is displayed again, call the customer service department and minus are dis-...
-
Page 22: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this prod-... -
Page 23: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. -
Page 24: Electrical Connection Diagram
IMPORTANT! Risk of injury from electrical current. Loose and inappropriate plug and socket connections can make the termi- nal overheat. • Have the clamping joints correctly installed by a qualified electrician. • Use strain relief clamp on cable. • In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90°C (or higher) must be used. -
Page 25: Assembly
Assembly... -
Page 28: Rating Plate
Rating Plate ZKT 863 LX 949 592 393 55HBD47AO 230 V 50 Hz 7,0 kW ZANUSSI... -
Page 29: Guarantee/Customer Service
Guarantee/Customer Service Standard guarantee conditions We, Zanussi, undertake that if within 12 months of the date of the purchase this Zanussi appliance or any part thereof is proved to be defective by rea- son only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 30: European Guarantee
European Guarantee This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guar- antee will move with you subject to the following qualifications:- •... - Page 31 www.electrolux.com Albania +35 5 4 261 450 Rr. Pjeter Bogdani Nr. 7 Tirane Belgique/ Bergensesteenweg 719, 1502 België/ +32 2 363 04 44 Lembeek Belgien Èeská republika +420 2 61 12 61 12 Budìjovická 3, Praha 4, 140 21 Danmark +45 70 11 74 00 Sjællandsgade 2, 7000 Fredericia Muggenhofer Str.
- Page 32 Quinta da Fonte - Edificio Portugal +35 12 14 40 39 39 Gonçalves Zarco - Q 35 2774 - 518 Paço de Arcos Str. Garii Progresului 2, S4, 040671 Romania +40 21 451 20 30 Schweiz/Su- Industriestrasse 10, CH-5506 Mä- isse/ +41 62 88 99 111 genwil...
-
Page 33: Service And Spare Parts
Service and Spare Parts If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning: 0870 5 929 929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area. - Page 36 www.electrolux.com www.zanussi-electrolux.co.uk 822 930 843-A-080906-01 Subject to change without notice...
