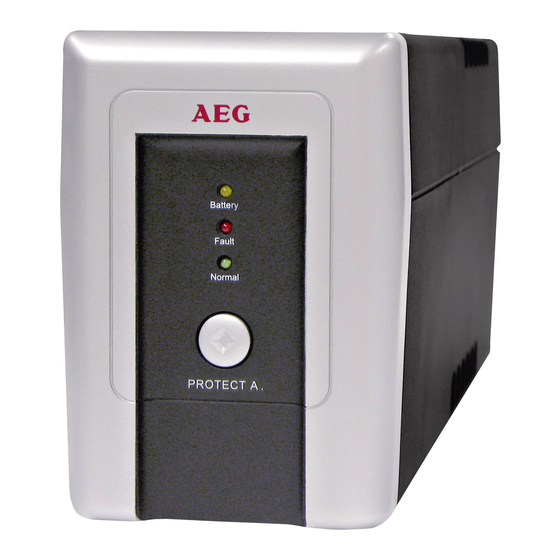

- Page 1 OPERATING INSTRUCTION UPS PROTECT A. PROTECT A. PROTECT A. PROTECT A. PROTECT A. 1000 PROTECT A. 1400...
-
Page 2: Warranty And Liability
The warranty does not apply for damage caused by non- compliance with these instructions (such damage also includes damaging the "Q.A." warranty seal). AEG will accept no liability for consequential damage. AEG will rescind all obligations such as warranty agreements, service contracts,... - Page 3 AEG and its representatives without prior notification in the event of maintenance and repair work being carried out with anything other than original AEG spare parts or spare parts purchased by AEG. Handling PROTECT A. is designed and constructed so that all necessary steps for start-up and operation can be performed without any internal manipulation of the unit.
-
Page 4: Declaration Of Conformity
Declaration of Conformity... -
Page 5: Important Safety Instructions
Safety Important Safety Instructions Read these operating instructions carefully prior commissioning of the PROTECT A. UPS and observe the safety instructions! Only use the unit if it is in a technically perfect condition and always in accordance with its intended purpose, while being aware of safety and danger aspects, and in accordance with the operating instructions! Immediately eliminate any faults which could be detrimental to safety. - Page 6 The output may be live, even if the UPS is not connected to the mains supply, as the UPS has its own internal power supply (battery)! For health and safety reasons, the unit must be earthed correctly! PROTECT A. may only be operated with or connected to a 230 VAC mains with protective grounding using a mains connection cable with PE conductor (included in the delivery) that has been tested in accordance with German standards...
- Page 7 ♦ Never connect the mains input to the UPS output! ♦ Ensure that no fluids or foreign bodies can penetrate the UPS! ♦ Do not block the side air vents of the unit! Keep children away from the unit and ensure that objects are never inserted through the vents! ♦...
- Page 8 Batteries can cause electric shocks and high short-circuit currents. Therefore, take the following safety precautions when working with batteries: ♦ Take off watches, rings and other metallic objects! ♦ Always use tools with insulated handles! For personal safety reasons, never switch on the main switch when the mains connector of PROTECT A.
-
Page 9: System Description
System Description PROTECT A. is an uninterruptible power supply (UPS) for essential loads such as personal computers (PCs) or ISDN telecommunication equipment and similar devices. It consists of: ♦ Mains filter in the mains input incl. mains energy backfeed protection ♦... - Page 10 effective protection against mains voltage peaks and high- frequency faults. In case of sustained mains undervoltage or overvoltage within defined ranges, the automatic voltage regulator (A.V.R.) further stabilises the load voltage. As a result, voltage fluctuations in the public utility's mains are reduced to a level which is acceptable for the loads.
-
Page 11: Setup And Operation
Set-Up and Operation Installing the UPS is as easy as following the steps shown. Inspection Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. -
Page 12: Computer Connection
Charging This unit is shipped from the factory with its internal battery fully charged, however, some power may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged in for at least 8 hours with no load (no electrical devices such as computers, monitors, etc.). -
Page 13: Deep Discharge Protection
Use one more internet line cable and plug one end of the internet line cable to the “Out” socket at the back of the PROTECT A. UPS. Plug the other end of the modem input socket as shown. USB and serial cable connection To allow for unattended system shutdown for your operating system, connect the USB or the RS232 serial cable as shown below. -
Page 14: Shutdown- And Ups Management Software
After removing the front cover, follow Fig. 2 above to remove partition by unscrewing it. Then follow Fig. 3 to remove the battery. 4.10 Shutdown- and UPS management software The "CompuWatch" software specially developed for these purposes by AEG continuously checks the mains supply and the UPS status. -
Page 15: Ups Overview
In conjunction with the "intelligent" UPS, this ensures that the availability of IT components and data security are guaranteed. The "CompuWatch" shutdown software supports different operating systems: Windows 98SE/ME, Windows NT/2000/ XP, Linux SUSE, Linux RedHat, Novell NetWare, IBM AIX, HP-UX, SUN Solaris, Mac OS, and others. -
Page 16: Specifications
Specifications MODELL PROTECT A. 1000 PROTECT A. 1400 Type 1000 VA / 600 W 1400 VA / 840 W UPS-input 220 Vac / 230 Vac / 240 Vac Input voltage Input voltage range 170 – 280 Vac without battery mode Frequency (auto 50 / 60 Hz ±... -
Page 17: Troubleshooting
Trouble shooting SYMPTOM CAUSE REMEDY No LED display Missing battery Charge battery up to 4 hours on the front panel Battery fault Replace with the same type of battery Power switch not pressed Turn on the switch again Alarm buzzer UPS overload Verify that the load matches the beeps... -
Page 18: Guarantee Certificate
Guarantee certificate Type: …….…………………............Serial-no.: ……………………..……………....... Date of purchase: …………….....……………………..Trading stamp / Signature Specifications are subject to change without notice. AEG Power Supply Systems GmbH Emil-Siepmann-Str. 32 59581 Warstein-Belecke Germany Operating Instructions UPS BAL 8000015757 EN AEG0206EN...
