GE BFL125UQ User Manual

Ultra Quiet Bath Fan
Item Stock Number(s): BFL125UQ
READ AND SAVE THESE INSTRUCTIONS

Important Safety Instructions

CAUTION: The equipment covered by these instructions should be installed and serviced
only by competent personnel utilizing proper safety practices and procedures. These
instructions are written for such personnel and are not intended as a substitute for adequate
training and experience in safe procedures for this type of equipment.
Warning: Disconnect the power at service panel before beginning this installation.
Caution: To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do
not vent exhaust air into spaces within walls or ceilings, or into attics, crawl spaces, or garages.
Acceptable for use over tub or shower when installed in a GFCI protected branch circuit.
Warning: To reduce the risk of fire or electric shock, do not use this fan with any solid-
state speed control device.
Warning: To reduce the risk of fire or electric shock or injury to persons, observe the following:
a) Use this unit only in the manner intended by the manufacturer. If you have any questions,
please contact the manufacturer.
b) Before servicing or cleaning unit, switch power to off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
c) Do not install this fan in a ceiling thermally insulated to a value greater than R-40
d) Installation work and electrical wiring must be done by qualified, competent, trained
person(s) in accordance with all applicable codes and standards using proper safety
practices, including fire-related construction.
e) Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment
manufacturer's guideline and safety standards such as those published by the National
Fire Protection Agency (NFPA) and the American Society for Heating, Refrigeration, and
Air Conditioning Engineers (ASHRAE), and the local code authorities.
f) When cutting or drilling into a wall or ceiling, ALWAYS identify hidden electrical wiring
and other hidden utilities in advance, to avoid damage.
g) Ducted fans must always be vented to the outdoors.
h) NEVER place a switch where it can be reached from the tub or shower.
Rev. A 4-04
Light/Night Light User's Guide
with
Caution: For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
Warning: Do not use in kitchens.
To ensure the best air and sound performance, it is recommended that the length of ducting
and the number of elbows be kept to a minimum, and that insulated hard ducting be used.
Larger duct sizes will reduce noise and airflow restriction.

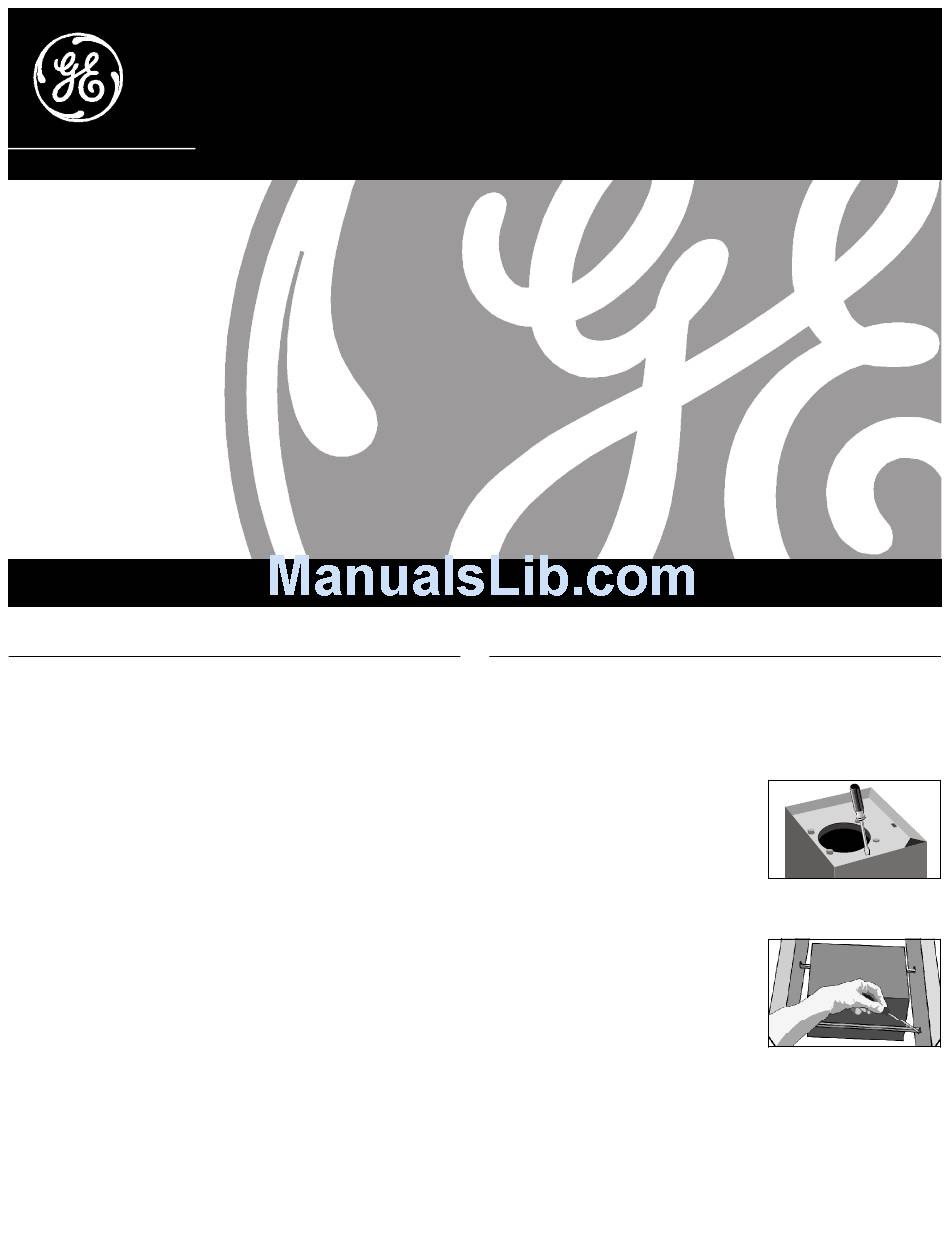

Before beginning this installation remove the fan's
blower housing (which includes the motor, blade, bracket
and motor plate) assembly by removing the screw which
secures the motor plate housing to the fan housing
(Fig. 1). Place this assembly and the grill in the carton
until needed so they do not get damaged.
Mounting the Housing: New Construction
Using the Hanging Brackets (Fig. 2)
1. Insert the hanging brackets in the slots provided in
the housing.
2. Select the most convenient electrical knockout
and remove it, then locate the fan housing between
joists so that the bottom of the fan housing is level
with the planned finished ceiling.
3. Use screws or nails (not provided) to secure the
hanger bars to the ceiling joists.
Mounting the Housing: Existing Construction
1. Determine the desired location for the fan.
2. Drill a small hole through the ceiling at the chosen location. Stick the end of a coat hanger
through the hole into the attic to help locate the spot in the attic.
3. Check the chosen area from above to make sure that the wiring can be installed and that
the installation will not interfere with any existing wiring. Then select the most convenient
electrical knockout and remove it.
4. From above, position the housing between ceiling joists, and use the housing as a template
to mark the required cut out in the ceiling.
BFL125UQ
Fig. 1
Fig. 2
