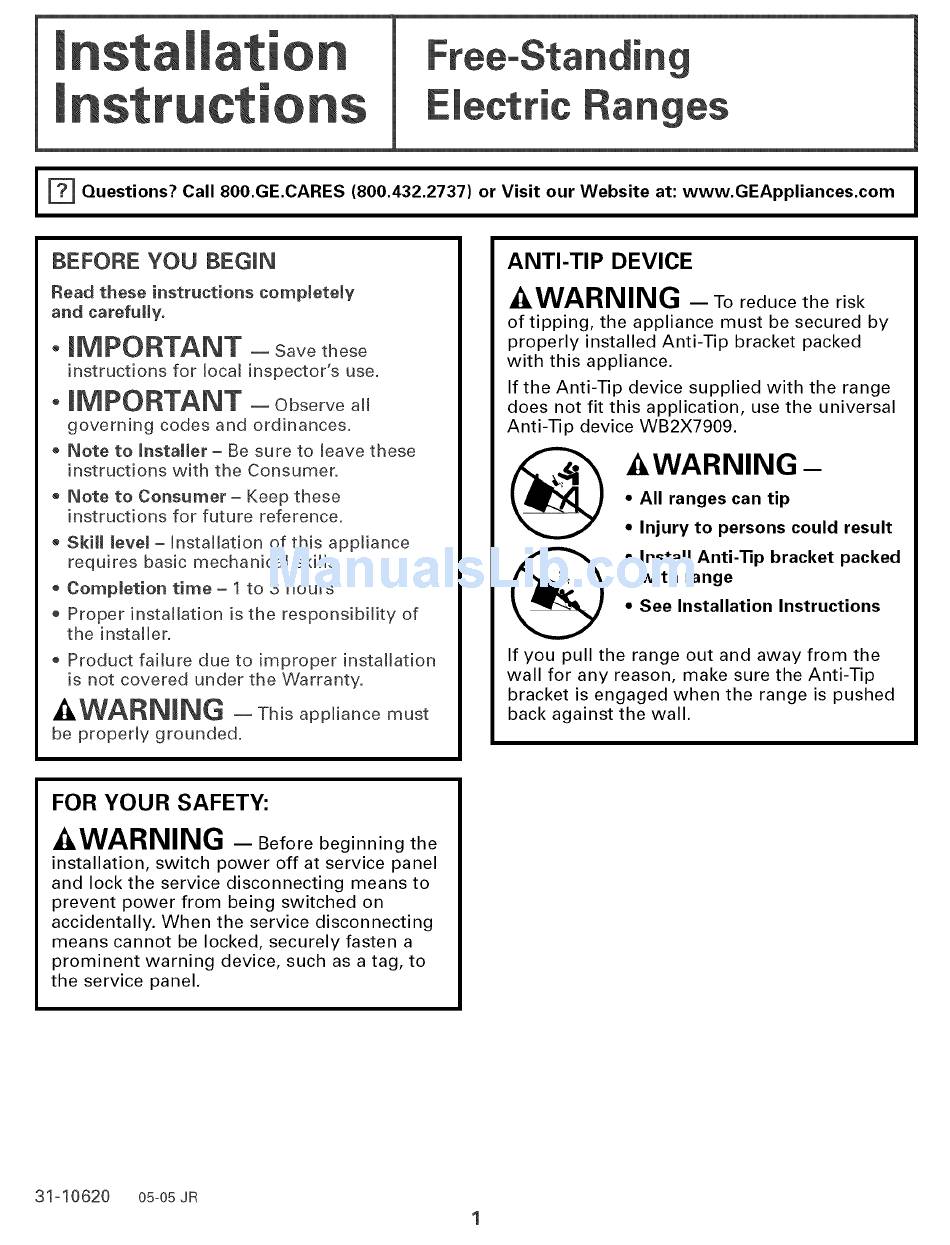

Ran Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com BEFORE YOU BEGIN ANTI-TIP DEVICE -&WARNING - Toreduce therisk Read these instructions completely and carefully. of tipping, the appliance must be secured - iMPORTANT - Save t hese...
mnstaliation mnstructions PREPARE TO INSTALL THE RANGE FOR YOUR SAFETY: MATERIALS YOU MAY NEED All rough-in and spacing dimensions must met for safe use of your range. On ranges with storage drawers electricity can be Tin Snips Lag Bolts Anchor Sleeves disconnected at the outlet...
Page 3
mnstaliation mnstructions PREPARE THE OPENING See illustrations for all rough-in and spacing dimensions. The range may be placed with 0" clearance (flush) at the back wall and side walls the cabinet. Acceptable electrical outlet area. Orient the electrical receptacle so the length is parallel to the floor.
mnstaliation mnstructions ELECTRICAL CONNECTIONS ELECTRICAL REQUIREMENTS You must use a 3-wire, single-phase A.C. 208Y/120 Volt or 240/120 Volt, 60 hertz CAUTION: electrical system. For personal safety, do not use an extension cord with this If the electrical service provided does not appliance.
Page 5
mnstaliation mnstructions POWER CORD AND For power cord installations only (see the next step if using conduit), assemble STRAIN RELIEF INSTALLATION the strain relief in the hole. Insert power cord through the strain relief Remove the wire cover (on the back of tighten.
Page 6
mnstaliation mnstructions ELECTRICAL CONNECTIONS (CONT.) 3-WIRE POWER CORD 4-WIRE POWER CORD INSTALLATION INSTALLATION WARNING: WARNING: The neutral or ground The neutralwire wire of the power cord must be connected the supply circuit must be connected to the to the neutral terminal located in the neutral terminal located in the lower center center of the terminal...
Page 7
mnstaliation mnstructions 4-WIRE CONDUIT INSTALLATION 3-WIRE CONDUIT INSTALLATION Loosen the 3 lower terminal screws from Loosen the three lower terminal screws the terminal block. Insert the center bare from the terminal block. Remove the ground wire (white/neutral) tip through the bottom screw and ground plate and retain them.
JnstaJJation instructions INSTALL THE RANGE PREPARE TO LEVEL MODELS [-_ REPLACE THE WIRE COVER WITH BAKING OR WARMING Replace the wire cover on the range back DRAWERS by sliding its left edge under the retaining tabs and replacing the five screws removed Measure the height of your...
Page 9
Installation Instructions LEVEL THE RANGE FINAL INSTALLATION CHECKLIST Install the oven shelves in the oven and position the range where it wi[[ be installed. Check to make sure the circuit breaker closed (RESET) or the circuit fuses Check for levelness replaced.
