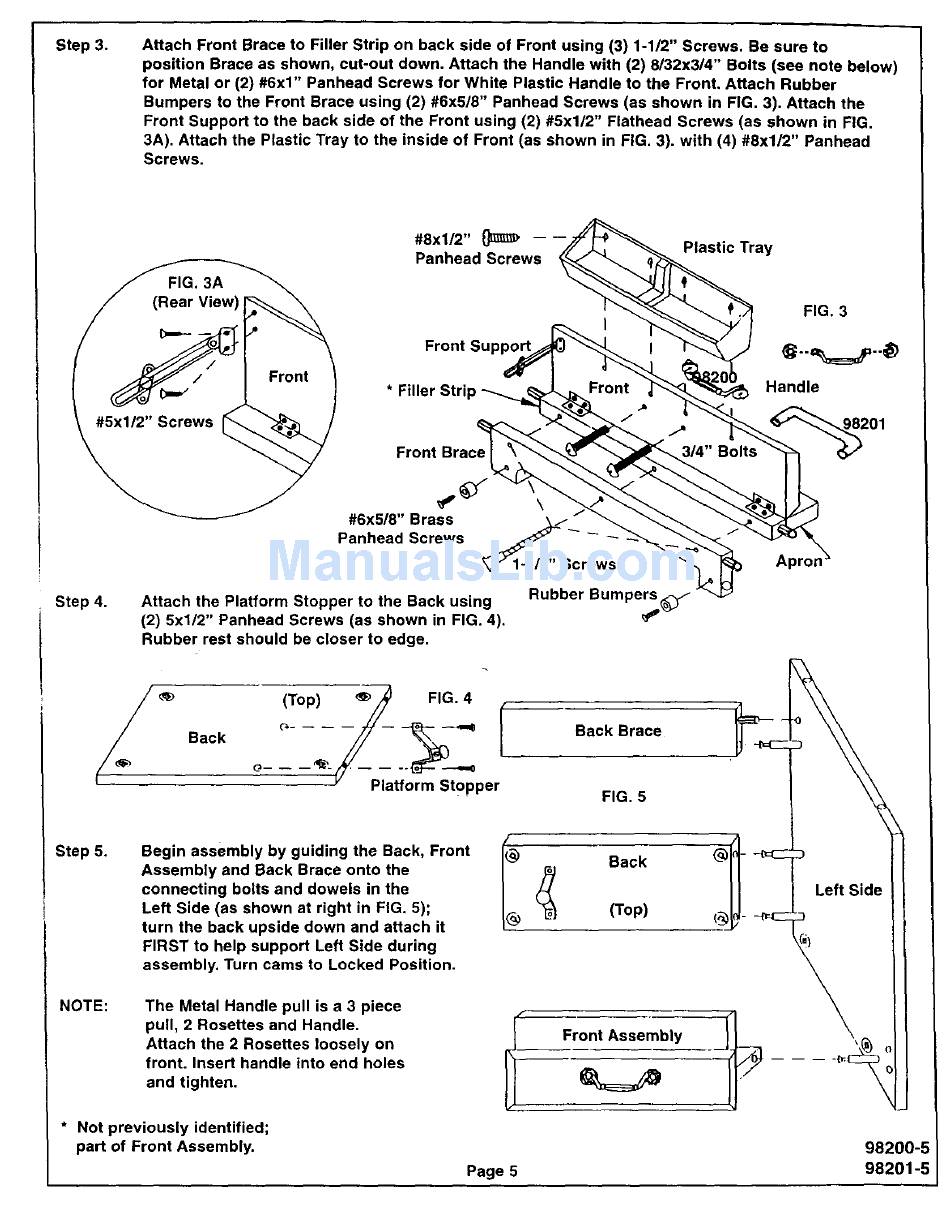

Step 3.
Attach Front Brace to Filler Strip on back side of Front using (3) 1-1/2" Screws. Be sure to
position Brace as shown, cut-out down. Attach the Handle with (2) 8/32x3/4"
Bolts (see note below)
for Metal or (2) #6x1" Panhead Screws for White Plastic Handle to the Front, Attach Rubber
Bumpers to the Front Brace using (2) #6x5/8" Panhead Screws (as shown in FIG, 3). Attach the
Front Support to the back side of the Front using (2) #5xl/2"
Flathead Screws (as shown in FIG,
3A), Attach the Plastic Tray to the inside of Front (as shown in FIG. 3). with (4) #8xl/2"
Panhead
Screws.
#8xl/2"
_
----
Panhead Screws
Plastic Tray
#5x1/2" Screws
Step 4,
FIG, 3
Front Brace
#6x5/8" Brass
Panhead Screws
\
Screws
Rubber Bumpers
Attach the Platform Stopper to the Back using
(2) 5xl/2"
Panhead Screws (as shown in FIG. 4).
Rubber rest should be closer to edge,
Handle
8201
Back
(Top)
_/_
FIG. 4
//
o_
v
Platform Stopper
Back Brace
FIG. 5
Step 5.
f
Begin assembly by guiding the Back, Front
IF_
Assembly and Back Brace onto the
connecting
bolts and dowels in the
Left Side (as shown at right in FIG. 5);
turn the back upside down and attach it
FIRST to help support Left Side during
assembly. Turn cams to Locked Position.
NOTE:
The Metal Handle pull is a 3 piece
pull, 2 Rosettes and Handle.
Attach the 2 Rosettes loosely on
front. Insert handle into end holes
and tighten.
* Not previously identified;
part of Front Assembly.
Back
(Top)
Front Assembly
Left Side
98200-5
Page 5
98201-5
