All about the
Use
of your
Welcome & Congratulations ...................................2
Important Safety Instructions .................................3
Features at a Glance ..............................................5
Before Setting Oven Controls .................................6
Setting Oven Controls ............................................9
www.frigidaire.com USA 1-800-944-9044
&

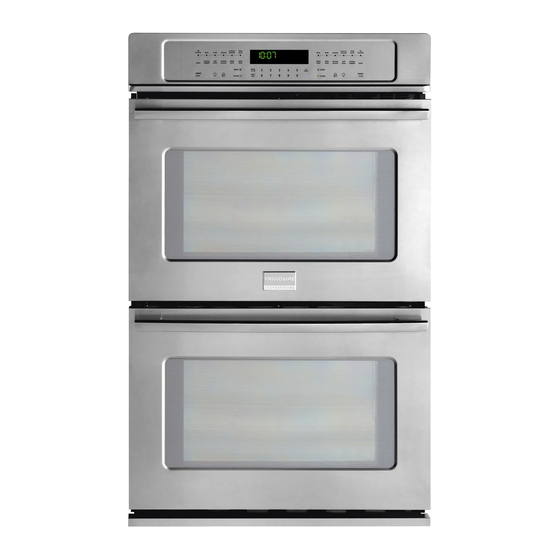

Wall Oven
TA B L E O F C O N T E N T S
www.frigidaire.ca Canada 1-800-265-8352
Care
Self-Cleaning .......................................................22
Care & Cleaning ..................................................24
Before You Call ..................................................26
Major Appliance Warranty ....................................28
Advertisement
Table of Contents
Related Manuals for Frigidaire 318205307
Summary of Contents for Frigidaire 318205307
-
Page 1: Table Of Contents
Welcome & Congratulations ...2 Important Safety Instructions ...3 Features at a Glance ...5 Before Setting Oven Controls ...6 Setting Oven Controls ...9 www.frigidaire.com USA 1-800-944-9044 & Care TA B L E O F C O N T E N T S Self-Cleaning ...22 Care &... -
Page 2: Welcome & Congratulations
Welcome & congratulations Product registration register Your Product The Product registration card should be filled in completely, signed and returned to Electrolux Home Products. serial Plate location Please record your model and serial numbers below for future reference. Model Number: Serial Number: Purchase Date: versión en español... -
Page 3: Important Safety Instructions
• Storage in or on Appliance—Flammable materials should not be stored in an oven. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, in or near the appliance. - Page 4 • Do not cover the broiler grid or oven bottom with aluminum foil. Exposed fat and grease could ignite. • Do not touch a hot oven light bulb with a damp cloth. Doing so could cause the bulb to break.
-
Page 5: Features At A Glance
• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket. -
Page 6: Before Setting Oven Controls
If using 1 rack, place in center of oven. If using multiple racks, stagger cookware as shown. For best air circulation and baking results allow 2-4" (5-10... - Page 7 The Flat Oven Half Rack has a removable insert that can provide extra space for larger food items. The right half rack portion may still be used for other food items like a casserole dish (See Figure 3 &...
-
Page 8: Control Pad Features
BeFore using tHe oven. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. detailed instructions for each feature and function follow later in this use & care guide. -
Page 9: Setting Oven Controls
All of the features listed below have minimum and maximum time or temperature settings that may be entered into the control. An ENTRY acceptance beep will sound each time a control pad is touched (the acceptance beep on the Oven Lockout pad is delayed 3 seconds). -
Page 10: Setting Silent Control Operation
Bake or 6 Hour Energy Saving features. The oven control has a factory preset built-in 6 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 6 hours. The oven can be programmed to override this feature for Continuous Baking. - Page 11 Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and prevents the oven from being turned on. It does not disable the clock, Minute Timer or the interior oven lights. To activate the Oven Lockout feature 1.
- Page 12 The PreHeat pad controls the PowerPlus The Preheat feature will bring the oven up to temperature and then indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to 550°F.
-
Page 13: Setting Convection Bake
• When using Convection Bake with a single rack, place oven rack in position 2 or 3. If cooking on multiple racks, place the oven racks in positions 2 and 4 or 1, 3 (offset rack) and 4. • Most bakeries (except cakes) should be baked on pans with no sides or very low sides to allow heated air to circulate around the food. -
Page 14: Setting Convection Convert
Bake Time and Delay Start features, “cF” (check food) will be displayed when 75% of the bake time complete. At this time the oven control will sound 3 long beeps at regular intervals until baking had finished. - Page 15 The Convection Broiling gently browns the exterior and seals in the juices. Convection broiling uses the broil element and a fan to circulate the oven’s heat evenly and continuously within the oven. The oven can be programmed for Convection Broiling at any temperature between 300°F to 550°F with a default temperature of 550°F.
-
Page 16: Setting Delay Start
Foods that can easily spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed. -
Page 17: Setting Broil
It allows the dripping grease to be kept away from the high heat of the broil element (see Figure 2). • For best broiling results, broil with the oven door in the broil stop position (see Figure 1). • If using a Searing Grill (available by mail order), preheat the grill for 5 to 10 minutes before placing your meat. -
Page 18: Setting Pizza
3. Press start. The fan icon and the actual oven temperature will appear in the display. 4. Place the pizza in the oven when the beep is heard. 5. If needed, enter a BAKE TIME (see its section for further details). - Page 19 This feature will save the cooking mode, the target temperature and the bake time (if any). The oven can recall a cooking sequences from its internal memory, which is easily accessible from a one touch button. This function can be used with Bake, Convection Bake, Convection Roast and Preheat.
- Page 20 4. Press start. The actual oven temperature appears in the display. 5. If you desire to set the oven control for a Bake time or delayed Bake time do so at this time. If not, skip this step and continue to step 7. Refer to the Bake Time / Delay Start section for complete instructions.
-
Page 21: Adjusting Oven Temperature
The oven is equipped with 2 oven lights. The oven lights will turn on automatically, when the oven door is opened. The oven light may be turned on when the door is closed by using the oven light pad located on the control panel. The oven light key will toggle the lights at full intensity. -
Page 22: Self-Cleaning
• Clean any soil from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. -
Page 23: Setting Self-Clean Cycle Time Length
3. Press start. The “door” icon will flash; “clean” and the letters “cln” will remain on in the display. 4. As soon as the control is set, the motor driven oven door lock will begin to close automatically. Once the door has been locked the “door”... -
Page 24: Care & Cleaning
Rinse with clean water and dry. Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the door. do not immerse the door in water. -
Page 25: Changing Oven Light
3. Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Figure 3). 4. Close the door to the broil stop position (the oven door will stop into this position just before fully closing). -
Page 26: Before You Call
BEFORE yOU CALL - OVEN BAKING For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. - Page 27 Faulty installation Place oven rack in center of oven. Place a level on the oven rack. Contact installing agent if rack and cabinet cutout flooring are not level. Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets are square and level.
-
Page 28: Major Appliance Warranty
major aPPliance WarrantY Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
