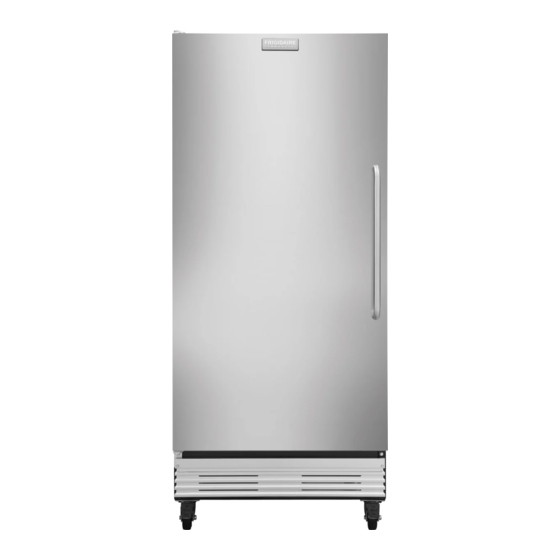

COMMERCIAL FREEZER/REFRIGERATOR
GLASS DOOR REFRIGERATOR
TABLE OF CONTENTS
Product Registration................................................ 2
Important Safety Instructions.................................... 2
Electrical Information............................................... 3
Caster Installation and Setup (Glass Door)................... 3-4
Caster Installation and Setup (Non-Glass Door).......... 5-6
Appliance Start-up.................................................... 6
Features................................................................. 6-7
Routine Maintenance............................................... 7
Energy Conservation Measures................................. 7
Troubleshooting Guide............................................. 8-9
Wiring Diagram.......................................................10
Warranty............................................................... 11
READ AND SAVE THESE INSTRUCTIONS
297121600 (June 2006)
Advertisement
Table of Contents
Related Manuals for Frigidaire GLASS DOOR REFRIGERATOR
Summary of Contents for Frigidaire GLASS DOOR REFRIGERATOR
-
Page 1: Table Of Contents
FRIGIDAIRE C O M M E R C I A L COMMERCIAL FREEZER/REFRIGERATOR GLASS DOOR REFRIGERATOR TABLE OF CONTENTS Product Registration………………………………….…... 2 Important Safety Instructions……………………….…... 2 Electrical Information…………………………………... 3 Caster Installation and Setup (Glass Door)... 3-4 Caster Installation and Setup (Non-Glass Door)... 5-6 Appliance Start-up…………………………………... -
Page 2: Product Registration
Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents: •... -
Page 3: Electrical Information
Electrical Information These guidelines must be followed to ensure that safety mechanisms in the design of this appliance will operate properly. Avoid fire hazard or electric shock. Do not use an extension cord or an adapter plug. Do not remove any prong from the power cord. - Page 4 • Remove bottom door support bracket and screw opposite the door hinge using a 3/8" socket wrench (see Fig. 3). DOOR SUPPORT BRACKET Figure 3 FRONT FIXED CASTER INSTALLATION • Put two (2) carriage bolts through the rear (non-brake) side of the fixed caster and hold the carriage bolts loosely in place by threading several turns on each of the locking nuts.
-
Page 5: Caster Installation And Setup (Non-Glass Door)
CASTER INSTALLATION AND SET-UP (NON-GLASS DOOR) INSPECTION FOR DAMAGE Inspect the underside of the cabinet and packaging for damage such as a fork truck can cause. If hidden damage is found after uncrating, immediately call the delivery carrier and request an inspection. Retain all packaging and crating materials until the inspection is complete. -
Page 6: Appliance Start-Up
Appliance Placement Leave a one (1) inch space on all sides and the back of the cabinet for ease of installation, proper air circulation and electrical connections. DO NOT block the front grill on the lower front of your appliance. Sufficient air circulation is essential for the proper operation of your appliance. -
Page 7: Features
Fluorescent Lamp (Glass Door Models) The Glass Door Refrigerator is equipped with a 17 watt fluorescent lamp. A ballast – lamp mismatch may result in poor or no lighting. -
Page 8: Troubleshooting Guide
Before calling for s ervice, review this lis t. It m ay s ave you tim e and expens e. This lis t TROUBLESHOOTING includes com m on occurrences that are not the res ult of defective workm ans hip or GUIDE m aterials in this appliance. - Page 9 PROBLEM SOUND AND NOISE (Cont.) Bubbling or gurgling s oun * Refrigerant (us ed to cool appliance) is circulating Vibrating or rattling nois e. * Appliance is not level. It rocks on the floor when it is m oved * Floor is uneven or weak. * appliance is touching the wall.
-
Page 10: Wiring Diagram
Disconnect the power cord before servicing. STAINLESS STEEL DOOR REFRIGERATOR IF ANY GREEN GROUNDING WIRES ARE REMOVED DURING SERVICING, THEY MUST BE RETURNED TO THEIR ORIGINAL POSITION AND PROPERLY SECURED. ELECTRICAL CIRCUIT STAINLESS STEEL DOOR FREEZER IMPORTANT GLASS DOOR REFRIGERATOR... -
Page 11: Warranty
6. Rust on the interior or exterior of the unit. 7. Products purchased “as-is”. 8. Food loss due to any refrigerator or freezer failures. 9. Damage caused at any time during shipment. 10. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances used other than in accordance with the provided instructions.
