• If the appliance has a child safety device, we recommend you acti- vate it. • Cleaning and user maintenance shall not be made by children without supervision. General Safety • Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. www.zanussi.com...
• Do not touch the mains cable or the mains between the appliance and the carpet. plug with wet hands. • Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to www.zanussi.com...
• Set a programme without the prewash phase handling of this product. For more detailed to wash laundry with normal soil. information about recycling of this product, please contact your local council, your www.zanussi.com...
Door handle Rating plate Feet for the appliance level Fixing plate kit (405517114) If you install the appliance on a plinth, secure the appliance in the fixing plates. Available from your authorized dealer. Follow the instructions supplied with the kit. www.zanussi.com...

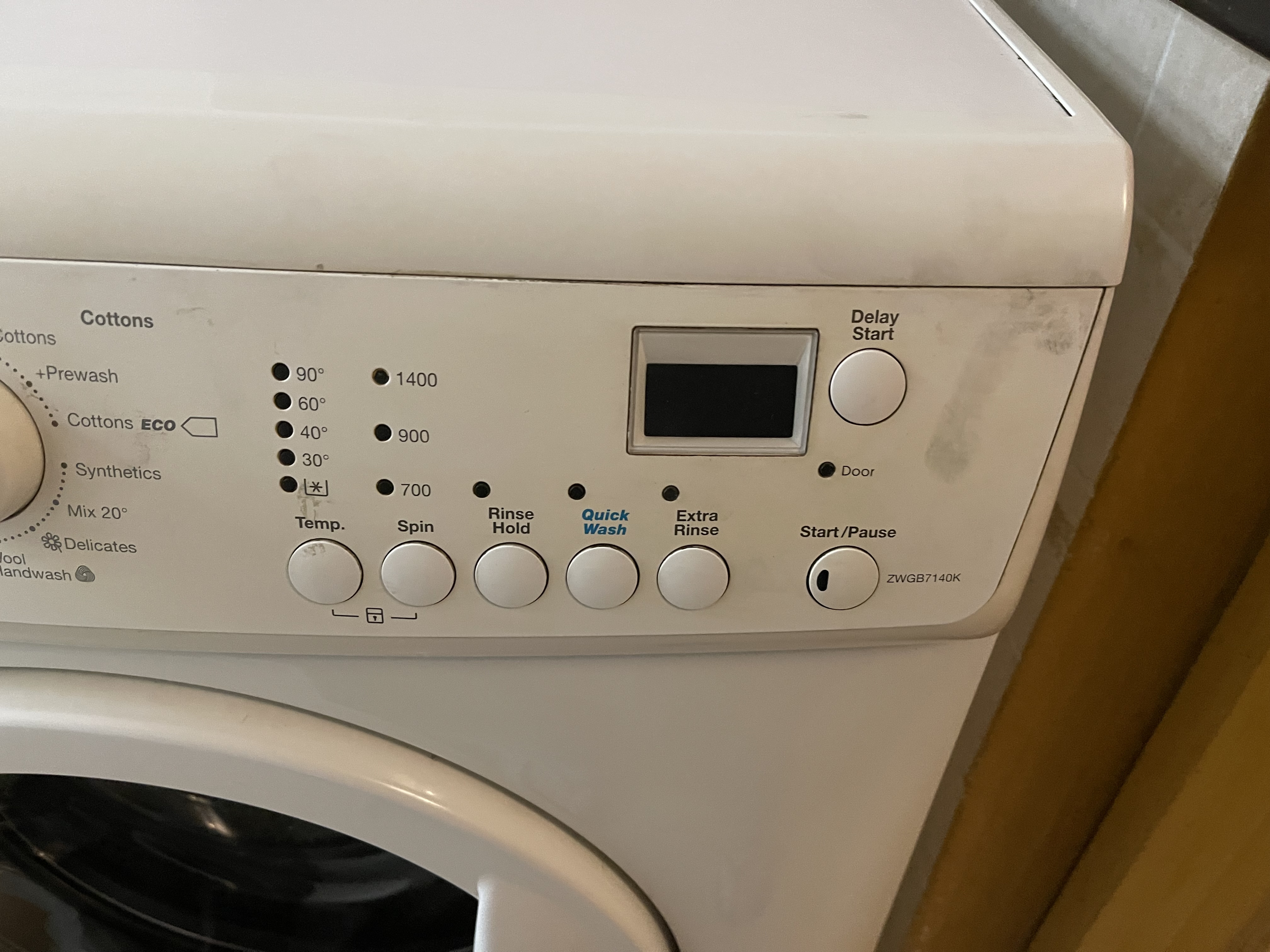

Spin reduction button (Spin) – You change the programme while it operates. Temperature button (Temp.) Display The display shows: A) The delay start. When you press the delay start button, the display shows the de- lay start time. www.zanussi.com...
The water temperature of the washing phase may differ from the temperature declared for the selected programme. 2) The appliance performs the short heating phase if the water temperature is below 20 °C. The appliance shows the temperature setting as “Cold”. www.zanussi.com...
(litre) programme du- moisture (kWh) ration (mi- nutes) Cottons 60 °C 1.05 Cottons 40 °C 0.65 Synthetics 40 °C 0.47 Delicates 40 °C 0.50 Wool/Hand wash 0.27 30 °C Standard cotton programmes Standard 60 °C 1.00 cotton www.zanussi.com...
Delay start button (Delay Start) Acoustic signals function Press this button to delay the start of a pro- The acoustic signals operate when: gramme from 30 minutes to 20 hours. • The programme is completed. www.zanussi.com...
When you set a programme with a prewash, put the detergent for prewash phase directly into the risk of water leakage drum. or damage to the laundry. Using the liquid and the powder detergent The default position of the flap is A (pow- der detergent). www.zanussi.com...
Page 11
1. Press the button Start/Pause. The indicator • Carefully close the detergent drawer. flashes. 2. Press the button Start/Pause again. The Setting a programme washing programme continues. 1. Turn the programme knob and set the pro- gramme: www.zanussi.com...
Page 12
2. Wait for some minutes and then open the • The indicator of button Start flashes slowly appliance door. Press one of the buttons to deactivate the ener- 3. Close the appliance door. gy saving status. 4. Set the programme again. www.zanussi.com...
Caution! Do not use alcohol, solvents or Use a special product made for washing ma- chemical products. chines. Obey the instructions that you find on the packaging of the manufacturer. Do this separately from the laundry wash. www.zanussi.com...
Page 14
Detergent dispenser To clean the dispenser: 45° 20° Frost precautions If the appliance is installed in an area where the temperature can be less than 0 °C, remove the remaining water from the inlet hose and the drain pump. www.zanussi.com...
Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'. www.zanussi.com...
Page 16
Use special products to remove the stubborn stains before you wash the laundry. Make sure that you set the correct temperature. Decrease the laundry load. After the check, activate the appliance. The pro- If the problem occurs again, contact the Serv- gramme continues from the point of interruption. ice. www.zanussi.com...
Water supply pressure Minimum 0,5 bar (0,05 MPa) Maximum 8 bar (0,8 MPa) Cold water Water supply Maximum load Cotton 6 kg Spin speed Maximum 1400 rpm 1) Connect the water inlet hose to a water tap with a 3/4'' thread. www.zanussi.com...
