Kenmore 71291 Use, Care, Safety Manual
  1. Manuals
  2. Brands
  3. Kenmore Manuals
  4. Ranges
  5. 71291 Use
  6. Use, care, safety manual
Kenmore 71291 Use, Care, Safety Manual

Kenmore 71291 Use, Care, Safety Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
CONTENTS
SAFETY
USE AND
CARE
Your Range and Its Features .....................................
4
Cool(top Controls ........................................................
5
Oven Controls .............................................................
6
Burner Ignition ........................................................
5, 6
Oven Vent ....................................................................
6
Wok Cooking
................................................................
5
Oven Cooking .............................................................
7
Broiling ........................................................................
8
Cleaning Tips ............................................................
9, 10
Removable
Range Parts .....................................
10-12
BEFORE
CALLING
FOR SERVICE
What to Do Before Calling for Service .............. 13, t4
Thermostat
Adjustments
.........................................
14
WARRAHTY
MODEL
71291
@
Kenmore
:_i¸:_
ii':: ii
ii

Advertisement

loading

Related Manuals for Kenmore 71291

Summary of Contents for Kenmore 71291

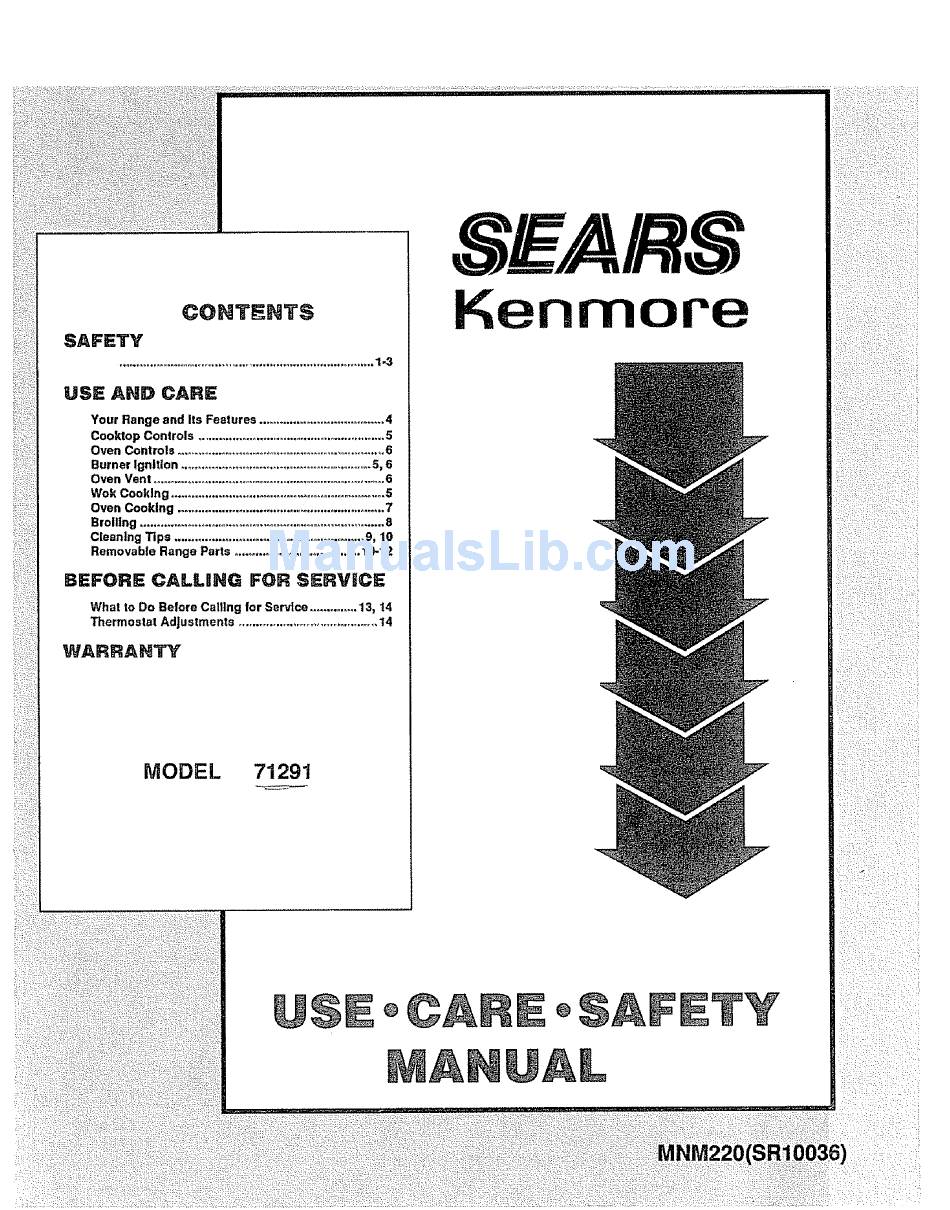

  • Page 1: Table Of Contents

    Kenmore CONTENTS SAFETY :_i¸:_ USE AND CARE Your Range and Its Features ........Cool(top Controls ............Oven Controls ............. Burner Ignition ............5, 6 Oven Vent ..............Wok Cooking ..............Oven Cooking ............. Broiling ................ Cleaning Tips ............9, 10 Removable Range Parts ........
  • Page 2 :_%:%. _'_" ._::_.'_:_. "_- .,_::':_:._':_,, .._:i_;%,_:_ "_'- ._;:_ • _:._i_;_:-_ ;-> _:_,_i_'_ _" ,_,_:_'_,_ ,_:_,_:_. ,:,,: SAVE THESE INSTRUCTIONS Read instructions before using this appliance. When using electrica! appliances, basic safety precautions should be foUowed, including following: WARNING: If the Information in this manual Is not followed exactly, a flre or explosion may result causing property damage, personal Injury or death.
  • Page 3 Never use a towel or other bulky cloth as a potholder_ Such cloths could catch fire, Never leave cooktop elements/ Always keep the range area clear burners unwatched at high heat and free from things that will burn. settings. Boilovers cause smok- CAUTION: ing and greasy splliovers could Never...

  • Page 4: Cool

    iMPORTANT SAFETY iNSTRUCTIONS Never block the flow of combustion and ventilation alr Keep this book for later use. through oven vents and cooktop burners. Always follow cleaning Instructions in this book. Never try to move a pan of hot fat, especially a deep fat Be sure your range Is Installed and grounded properly fryer.
  • Page 5 YOUR RANGE IMPORTANT: The model and serial number of your oven can be found on a tag, on the left side of the front frame, Pull out broiler drawer to locate. (may get hot g oven use; DO NOT (See page 12) block vent) COOKTOPBURNER (Seapage12)OVEN...
  • Page 6 Start Things Cooking COOKTOP The sign near each cooktop control knob shows which If a cooktop burner falls to Iig ht within five seconds, turn the knob to OFF and walt one minute before trying burner Is turned on by that knob. again.

  • Page 7: Oven Controls

    To Start Things Cooking (continued) OVEN TO LIGHT OVEN PILOTS= To use your oven or broiler. 1. Turn oven control to OFF and walt one minute. 1. Push In and set the OVEN CONTROL to desired temperature or to BROIL. When broiling, be sure to 2.
  • Page 8 OVRN COOKING When cooking a food for the first time in your new Cakes, cookies, muffins, and quick breads should oven, use time given on recipes as a guide. be baked In shiny pans -- to reflect the heat because they should have a light golden crust. Your new oven has been set correctly at the factory Yeast breads and pie crusts should be baked In and Is more apt to be accurate than the oven it...

  • Page 9: Broiling

    BROILING Broiling is cooking by direct heat from the broil Do not cover the entire broiler burner. Tender cuts of meat or marinated meat grid with foil. Poor drainage should be selected for broiling. For best results of hot fat my cause a broiler steaks and chops should be at least 3/4"...

  • Page 10: Cleaning Tips

    CLEANING TIPS Range cooktop finishes will be either porcelain enamel On the following pages, all removable parts on your or brushed chrome. Porcelain enamel looks like a range are shown. Refer to those pages when cleaning. painted surface. Brushed chrome has a metallic appear- Warm water, a mild detergent and a soft cloth are safe to ance.
  • Page 11 CLEANING TIPS (CONTINUED...) PART CLEANING MATERIALS REMARKS Porcelain enamel oven fin- Detergent, warm water, scour- When using oven cleaner, follow Ish, broiler compartment manufacturer's Instructions. Oven bot- Ing pad or soap-filled steel wool pad or oven cleaner tom can be removed for easier cleaning. Rinse thoroughly after cleaning.
  • Page 12 REMOVABLE OVEN RACKS Be careful not to scratch the oven finish when installing or removing oven racks. I'_-_.._LI iJll IN RACK,,. To install: 1. Set the raised back edge of the rack on a pair of rack guides. 2. Push the rack In until you reach the bump In the rack guide, then lift the front of the rack a blt and push the rack all the way in.
  • Page 13 LIFT-UP COOKTOP The cooktop can be raised or removed so the area underneath can be cleaned. To raise cooktop: 1. Remove the burner grates. 2. Grasp the cooktop and lift up° To remove cooktop: 1. Remove the burner grates. 2. Grasp the cooktop and lift the front a little. 3.

  • Page 14: Before Calling For Service

    BEFORE CALLING FOR SERVICE Save time and money m Check this list before you call for service. To eliminate unnecessary service calls, first, read all the Instructions In this manual carefully. Then, if you have a problem, always check this list of common problems and possible solutions before you cell for service. If you do have a problem you cannot fix yOurself, ceil your nearest Sears Store or Sen/ice Center for help.

  • Page 15: Thermostat Adjustments

    BEFORE CALLING FOR SERVICE POSSIBLE CAUSE DON'T CALL FOR SERVICE PROBLEM UNTIL YOU CHECK Foods do not broil • • Improper rack position • Check broil pan placement; see Broiling section. properly Oven preheated • Do not preheat when broiling. •...
  • Page 16 "We Service What We Sell" is our assurance to you that you can depend on Sears for service because Sears service Is nationwide. Your Kenmore Range has added value when you consider that Sears has a service unit near you staffed by Sears trained technicians.., professional technicians specifically trained on Sears appliances, having the parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We Sell!"...
