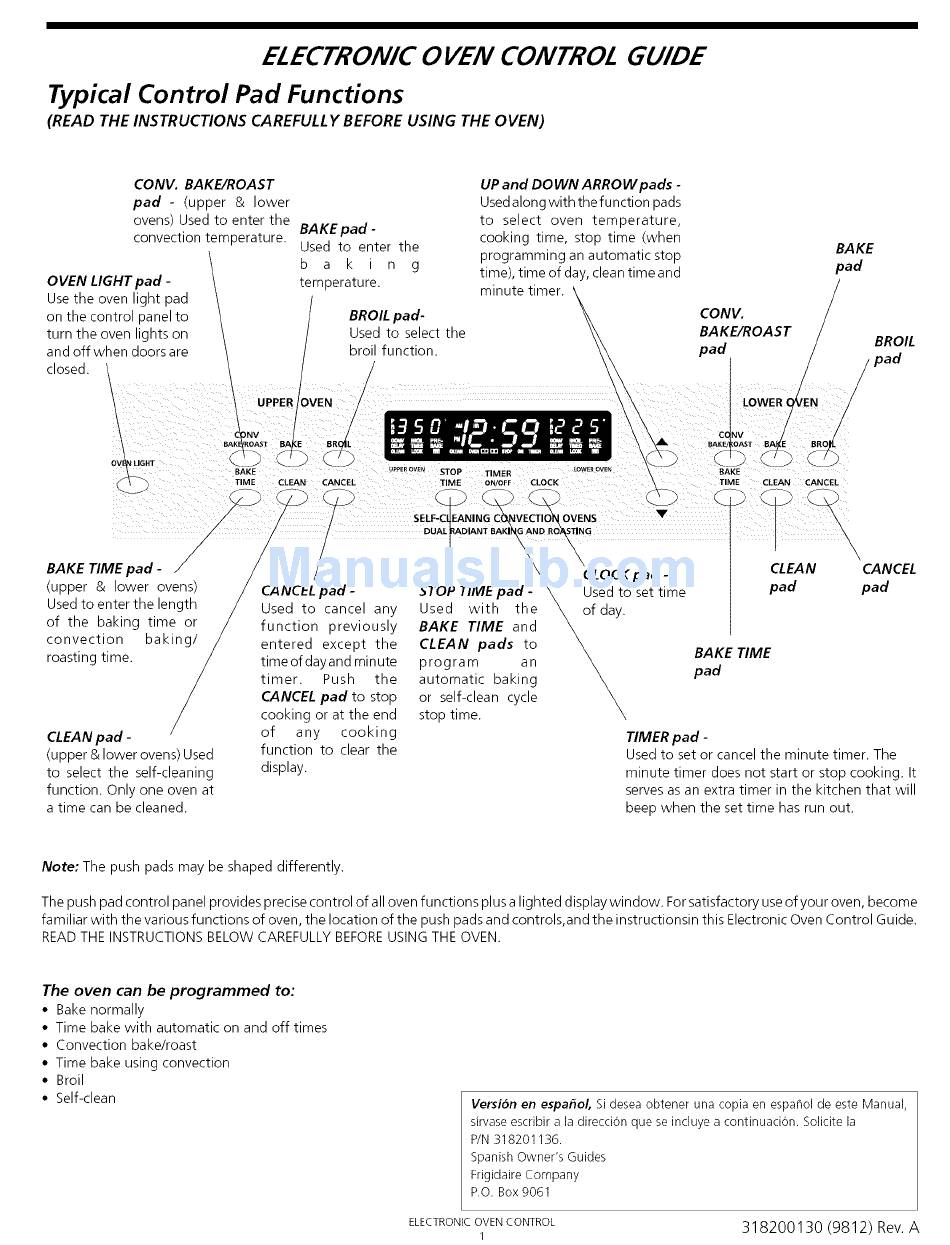

ELECTRONIC OVEN CONTROL GUIDE
Typical Control Pad Functions
(READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN)
CONV. BAKE/ROAST
pad- (upper & lower
ovens) Used to enter the
convection temperature.
OVEN LIGHT pad -
Use the oven light pad
on the control panel to
turn the oven lights on
and off when doors are
closed.
BAKEpad-
Used to enter the
b a k i n g
temperature.
UP and DO WN ARRO Wpads -
Used along with the function pads
to select oven temperature,
cooking time, stop time (when
programming an automatic stop
time), time of day, clean time and
minute timer.
BAKE
pad
BROIL
BAKE TIME pad - CLOCK pad - CLEAN CANCEL
(upper & lower ovens) CANCEL pad - STOP TIME pad - Used to set time pad pad
Used to enter the length Used to cancel any Used with the of day.
of the baking time or function previously BAKE TIME and
convection baking/ entered except the CLEAN pads to
BAKE TIME
roasting time. timeofdayand minute program an
timer. Push the automatic baking pad
CANCEL pad to stop or self-clean cycle
cooking or at the end stop time.
CLEANpad- of any cooking TIMERpad-
(upper & lower ovens) Used function to clear the Used to set or cancel the minute timer. The
to select the self-cleaning display, minute timer does not start or stop cooking. It
function. Only one oven at serves as an extra timer in the kitchen that will
a time can be cleaned, beep when the set time has run out.
Note: The push pads may be shaped differently.
The push pad control panel provides precise control of all oven functions plus a lighted display window. For satisfactory use of your oven, become
familiar with the various functions of oven, the location of the push pads and controls, and the instructionsin this Electronic Oven Control Guide.
READ THE INSTRUCTIONS BELOW CAREFULLY BEFORE USING THE OVEN.
The oven can be programmed to:
• Bake normally
• Time bake with automatic on and off times
• Convection bake/roast
• Time bake using convection
• Broil
• Self-clean
Version en espahol, Si desea obtener una copia en espahol de este Manual,
sirvase escribir a la direccion que se incluye a continuacion. Solicite la
P/N 318201136.
Spanish Owner's Guides
Frigidaire Corrlpany
P.O. Box 9061
ELECTRONIC OVEN C ONTROL 318200130 (9812) Rev.A
1
