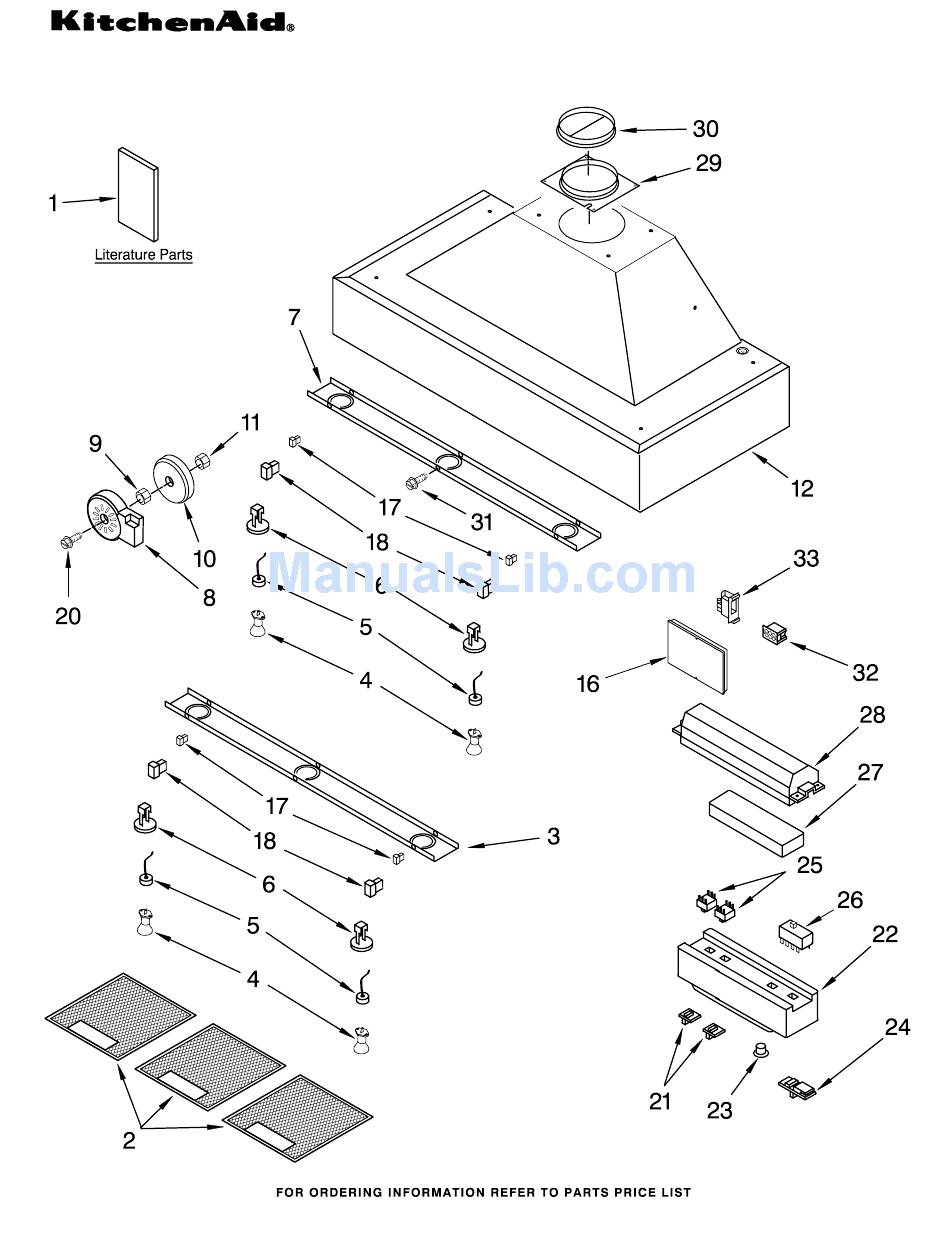

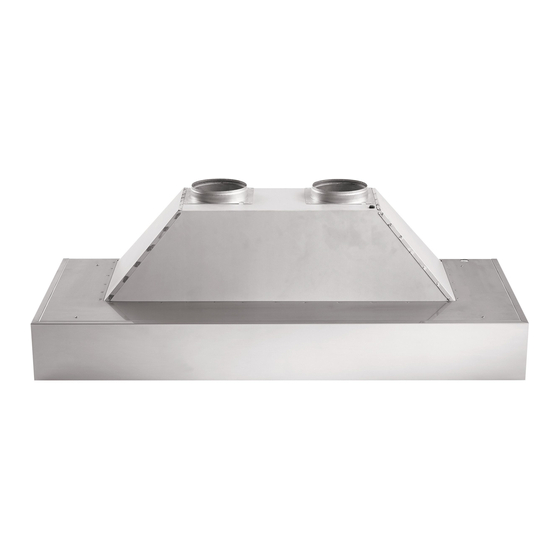

HOOD PARTS
48" HOOD LINER
For Model: KHVU781RSS1
(Stainless)
1
Part No. 8191120
12−05 Litho in U.S.A. (jac)
Previous
Page
Next
Page
1
2
3
Advertisement
Related Manuals for KitchenAid KHVU781RSS1
Ventilation Hood KitchenAid 9763388 Installation Instructions And Use And Care Manual
36" (91.4 cm) and 48" (121.9 cm) hood liner with internal blower (28 pages)
Ventilation Hood KitchenAid KitchenAid KVUC600KSS0 Installation Instructions And Use And Care Manual
30" (76.2 cm) and 36" (91.4 cm) commercial style (40 pages)
Ventilation Hood KitchenAid Microwave Hood Combination User Manual
(9 pages)
Ventilation Hood KitchenAid W10029780 Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) wall-mount canopy range hood (28 pages)
Ventilation Hood KitchenAid KWCU265HWH1 Installation Instructions And Use And Care Manual
30"/36"/48" wall-mount canopy range hood (13 pages)
Ventilation Hood KitchenAid KVIB606DSS Installation Instructions And Use & Care Manual
Kitchenaid 36" and 42" (91.4 cm and 106.7 cm) island canopy range hood (32 pages)
Ventilation Hood KitchenAid KHMS105W Use And Care Manual
30" built-in microwave hood (37 pages)
Ventilation Hood KitchenAid 30" (76.2 CM) RANGE HOOD Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) range hood (32 pages)
Ventilation Hood KitchenAid KPEU722M Installation Instructions And Use And Care Manual
30" (76.2 cm), 36" (91.4 cm) retractable (pop-up) downdraft vent systems (32 pages)
Ventilation Hood KitchenAid W10267109C Installation Instructions And Use & Care Manual
30" (76.2 cm) and 36" (91.4 cm) slide-out vent hood (36 pages)
Ventilation Hood KitchenAid KHTU160KBT1 Installation Instructions And Use & Care Manual
Khtu100/khtu160 series 30" (76.2 cm) and 36" (91.4 cm) traditional series vented and non vented range hoods (20 pages)
Summary of Contents for KitchenAid KHVU781RSS1
Page 1
HOOD PARTS 48" HOOD LINER For Model: KHVU781RSS1 (Stainless) Part No. 8191120 12−05 Litho in U.S.A. (jac)
Page 2
HOOD PARTS For Model: KHVU781RSS1 (Stainless) Illus. Part DESCRIPTION Literature Parts 9763388 Instructions, Installation / Use & Care Guide 8191044 Wiring Diagram 8190541 Filter, Grease (4) 8190543 Support, Light 8189593 Bulb, Halogen (6) 8190542 Holder, Bulb (6) 8189598 Support, Bulb (6) 8190544 Support, Light 8190545 Blower 8190411 Nut...
Page 3
VENTILATION PARTS For Model: KHVU781RSS1 (Stainless) Illus. Part DESCRIPTION 8190389 Housing, Upper 8190388 Support, Motor−SX 8190390 Motor, Blower 8190391 Support, Motor−DX 8190387 Housing, Lower 8190392 Cover, Wire 8190393 Connector 8190386 Cover, Wire 8190385 Capacitor 8190384 Cover, Box 8190383 Cover, Wire 8190398 Bracket, Mounting 8190582 Screw (2) ACCESSORY PARTS...
